NSN 5330-01-044-2343 525C869, 525C869H01, 617F150PC52
Product Details | NONMETALLIC STRIP SEAL
5330-01-044-2343 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED.
Part Alternates: 525C869, 525C869H01, 617F150PC52, 5330-01-044-2343, 01-044-2343, 5330010442343, 010442343
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUL 1977 | 01-044-2343 | 36874 ( SEAL, NONMETALLIC STRIP ) |

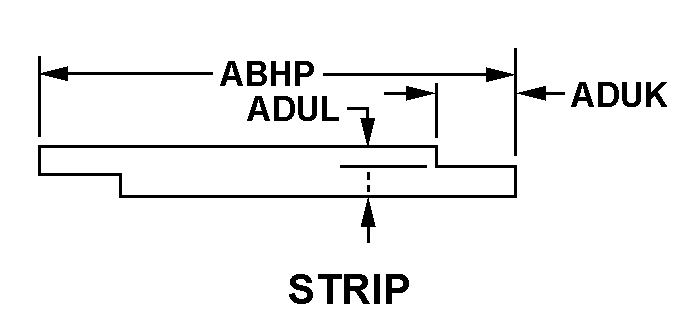

Drawings & Photos | NSN 5330-01-044-2343
Demand History | NSN 5330-01-044-2343
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 525C869H01 | 2023-02-32 | 4 | DIBBS |
| 525C869H01 | 2022-12-352 | 2 | DIBBS |
| 525C869H01 | 2022-08-226 | 2 | DIBBS |
| 525C869H01 | 2021-11-318 | 4 | DIBBS |
| 525C869H01 | 2020-05-135 | 10 | DIBBS |
| 525C869H01 | 2020-04-99 | 5 | DIBBS |
| 525C869H01 | 2019-02-34 | 3 | DIBBS |
| 5330-01-044-2343 | 2016-02-33 | 20 | DIBBS |
| 5330-01-044-2343 | 2015-12-354 | 4 | DIBBS |
| 5330-01-044-2343 | 2015-12-341 | 3 | DIBBS |
| 5330-01-044-2343 | 2015-11-312 | 3 | DIBBS |
| 5330-01-044-2343 | 2012-10-303 | 10 | DIBBS |
| 5330-01-044-2343 | 2010-10-287 | 10 | DIBBS |
| 5330-01-044-2343 | 2010-02-33 | 1 | DIBBS |
| 5330-01-044-2343 | 2009-01-15 | 4 | DIBBS |
Cross Reference | NSN 5330-01-044-2343
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 525C869 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 525C869H01 | 0SX38 | WESTLAND TECHNOLOGIES, INC. |
| 525C869H01 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 525C869H01 | 96780 | BURKE INDUSTRIES, INC. |
| 617F150PC52 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-044-2343
Technical Data | NSN 5330-01-044-2343
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OR RUBBER POLYESTER URETHANE CLASS AU OR RUBBER POLYETHER URETHANE CLASS EU OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 5BG610A1E3 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | G3 RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 1.940 INCHES MINIMUM AND 2.060 INCHES MAXIMUM |
| CROSS-SECTIONAL WIDTH | 0.120 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A11 STRIP |
| OVERALL LENGTH | 121.250 INCHES NOMINAL |
| END CUT LENGTH | 1.500 INCHES NOMINAL |
| END CUT DEPTH | 0.060 INCHES NOMINAL |
| SPECIAL FEATURES | 2 VULCANIZED JOINTS PERMISSIBLE TO SPLIT THE OVERALL LENGTH INTO 3 PIECES,LOCATION OF JOINTS 40.0 IN. FROM EDGES APPROX. |
| MANUFACTURERS CODE | 90099 |
| DESIGN CONTROL REFERENCE | 525C869H01 |
Restrictions/Controls & Freight Information | NSN 5330-01-044-2343
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-044-2343
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
