Product Details | GASKET
5330-01-047-6311 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 209063010001, 209-063-010-001, 2090630101, 209-063-010-1, 5330-01-047-6311, 01-047-6311, 5330010476311, 010476311
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 SEP 1977 | 01-047-6311 | 04522 ( GASKET ) |

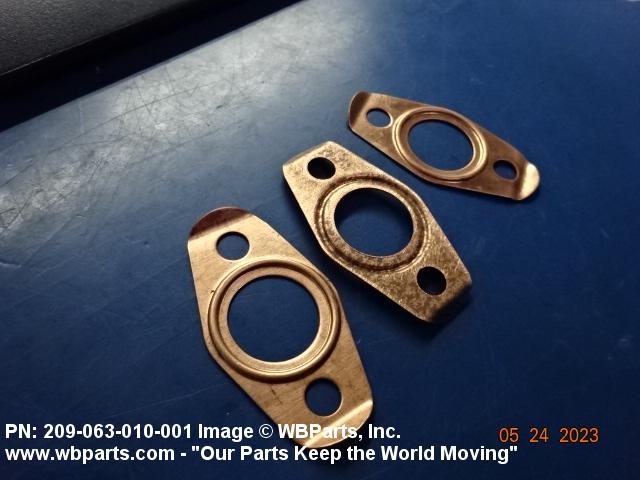

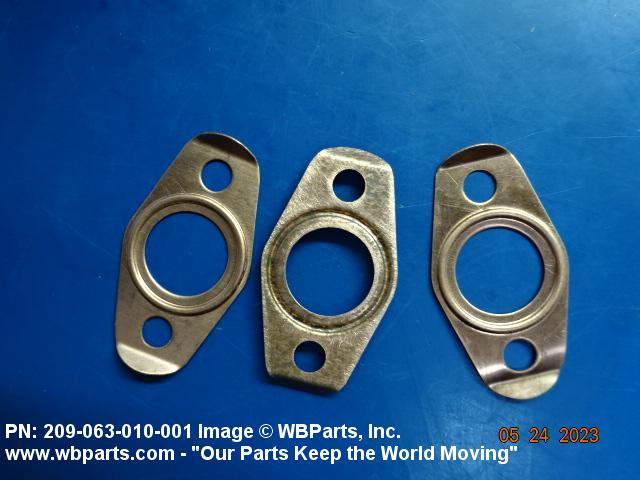

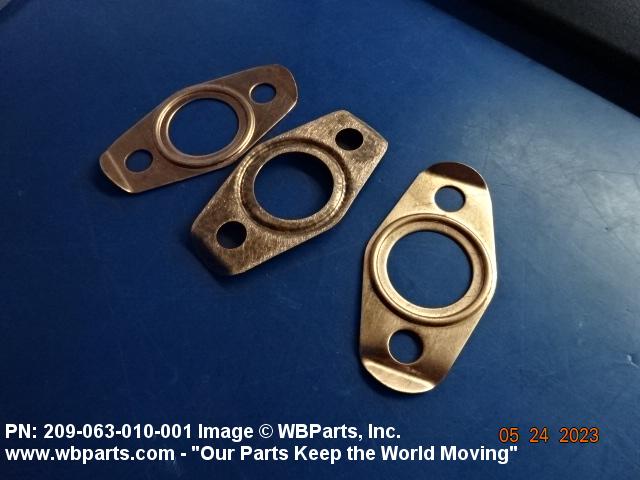

Drawings & Photos | NSN 5330-01-047-6311
Demand History | NSN 5330-01-047-6311
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-047-6311 | 2024-07-191 | 6 | us |
| 209063010001 | 2023-05-121 | 5 | Germany |
| 5330-01-047-6311 | 2015-11-312 | 2 | DIBBS |
| 5330-01-047-6311 | 2014-12-356 | 2 | DIBBS |
| 2090630101 | 2013-01-16 | 420 | Indonesia |
| 209063010001 | 2008-12-352 | 5 | US |
| 5330-01-047-6311 | 2008-12-349 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-047-6311
Technical Data | NSN 5330-01-047-6311
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-576 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F21 RECTANGULAR METAL |

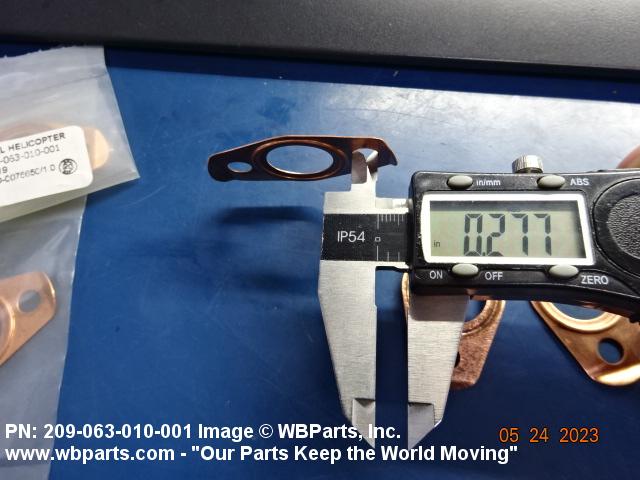

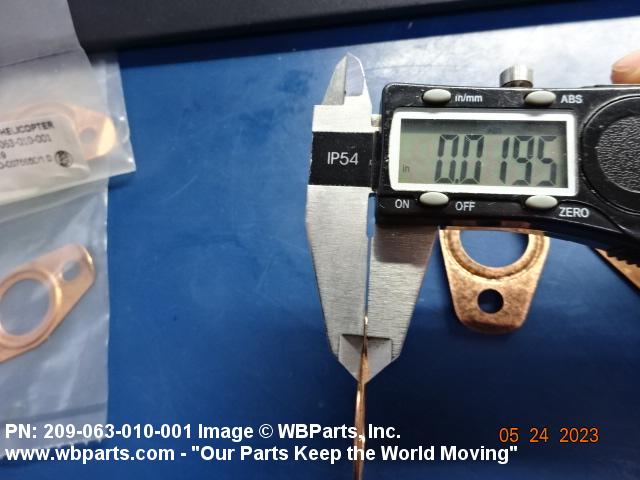

| CROSS-SECTIONAL THICKNESS | 0.019 INCHES NOMINAL |
| STYLE DESIGNATOR | B13A NON-CIRCULAR |
| HOLE DIAMETER | 0.280 INCHES MINIMUM AND 0.287 INCHES MAXIMUM |

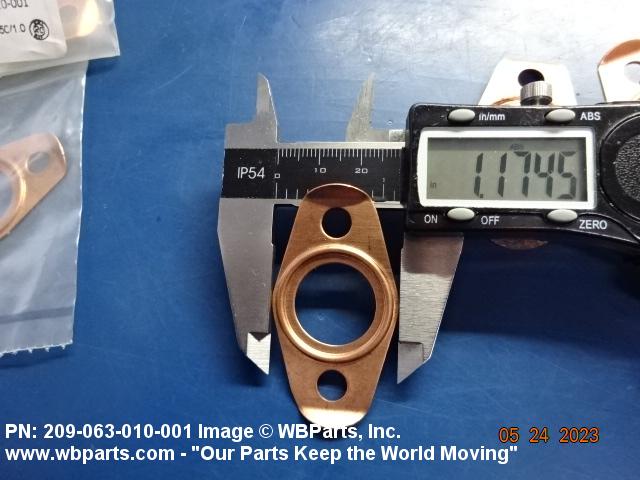

| BOLT CIRCLE DIAMETER | 1.500 INCHES NOMINAL |

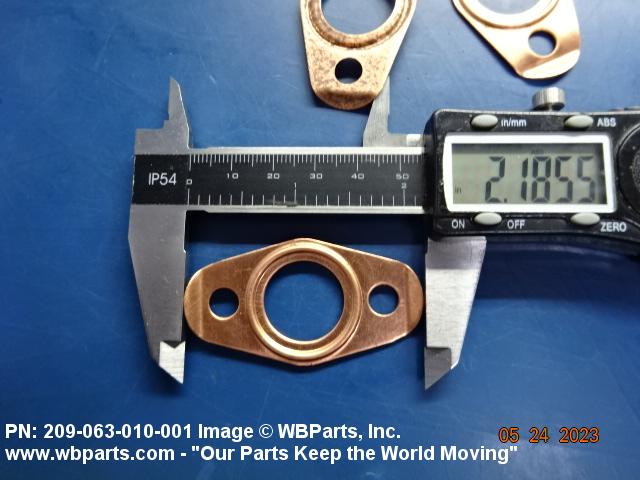

| OVERALL WIDTH | 2.260 INCHES NOMINAL |

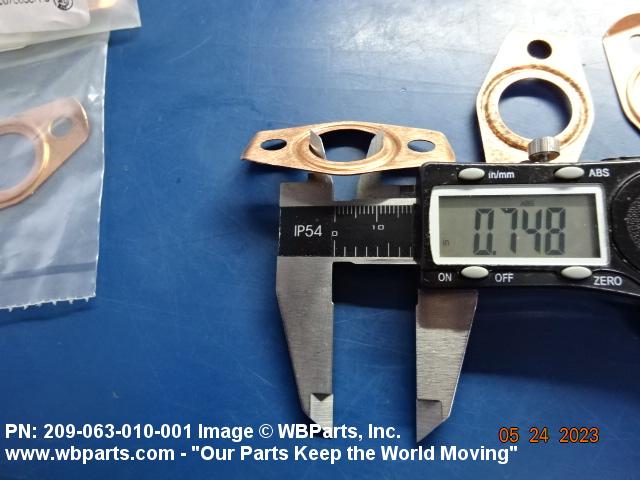

| APERTURE DIAMETER | 0.750 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.380 INCHES NOMINAL |
| SIDE RADIUS FROM GASKET CENTER | 0.580 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 2 |
| SPECIAL FEATURES | BEAD ON ID OF APERTURE,EACH END HAS A BEND OF 45 DEGREES,0.180 IN. FROM EACH OF GASKET |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 209-063-010-1 |
Restrictions/Controls & Freight Information | NSN 5330-01-047-6311
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
