NSN 5330-01-078-8858 L28361P12, XPG0261500083, 01-078-8858

Product Details | GASKET

5330-01-078-8858 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.

Part Alternates: L28361P12, XPG0261500083, 5330-01-078-8858, 01-078-8858, 5330010788858, 010788858

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 JUN 1979	01-078-8858	04522 ( GASKET )

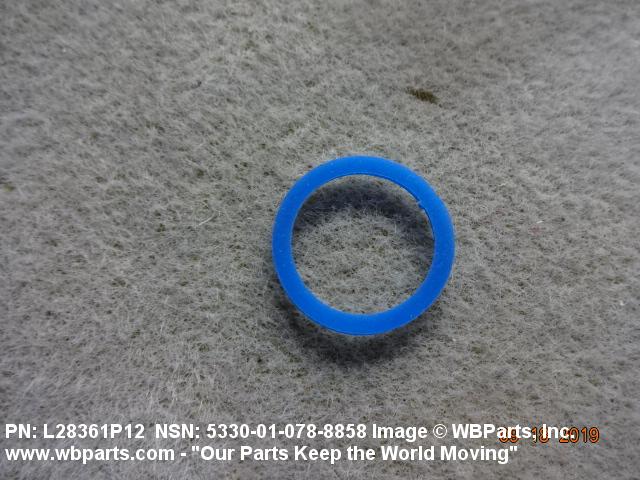

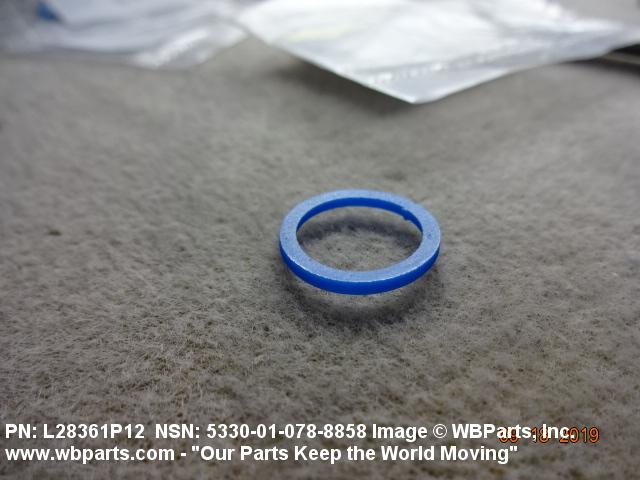

Drawings & Photos | NSN 5330-01-078-8858

Part Number	Request Date	QTY	Origin
4200-001-12	2019-11-324	500	DIBBS
L28361P12	2019-11-324	500	DIBBS
SZ9199-12	2019-11-324	500	DIBBS
4200-001-12	2019-10-279	1005	DIBBS
L28361P12	2019-10-279	1005	DIBBS
SZ9199-12	2019-10-279	1005	DIBBS
5330-01-078-8858	2019-08-228	3	United States
4200-001-12	2019-08-225	700	DIBBS
L28361P12	2019-08-225	700	DIBBS
SZ9199-12	2019-08-225	700	DIBBS
4200-001-12	2019-03-65	620	DIBBS
L28361P12	2019-03-65	620	DIBBS
SZ9199-12	2019-03-65	620	DIBBS
4200-001-12	2019-01-06	620	DIBBS
L28361P12	2019-01-06	620	DIBBS
5330-01-078-8858	2018-11-309	270	DIBBS
5330-01-078-8858	2018-08-238	350	DIBBS
5330-01-078-8858	2018-07-206	350	DIBBS
5330-01-078-8858	2018-02-43	500	DIBBS
5330-01-078-8858	2018-02-35	500	DIBBS
5330-01-078-8858	2017-08-214	500	DIBBS
5330-01-078-8858	2017-06-177	500	DIBBS
L28361P12	2015-09-257	1	United States
L28361P12	2015-07-195	1	United States

Cross Reference | NSN 5330-01-078-8858

Part Number	Cage Code	Manufacturer
L28361P12	07482	GENERAL ELECTRIC COMPANY DBA GE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-078-8858

Compare

Related Products | NSN 5330-01-078-8858

5330-01-078-8859, 5330-01-078-8861, 5330-01-078-8862, 5330-01-078-8863, 5330-01-078-8864

Technical Data | NSN 5330-01-078-8858

Characteristic	Specifications
MATERIAL	RUBBER FLUOROSILICONE CLASS FQ OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-R-25988,TY 2,CL 1,GR 40 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING	35.0 SHORE DUROMETER A MINIMUM AND 45.0 SHORE DUROMETER A MAXIMUM OVERALL
CROSS-SECTIONAL SHAPE STYLE	F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL

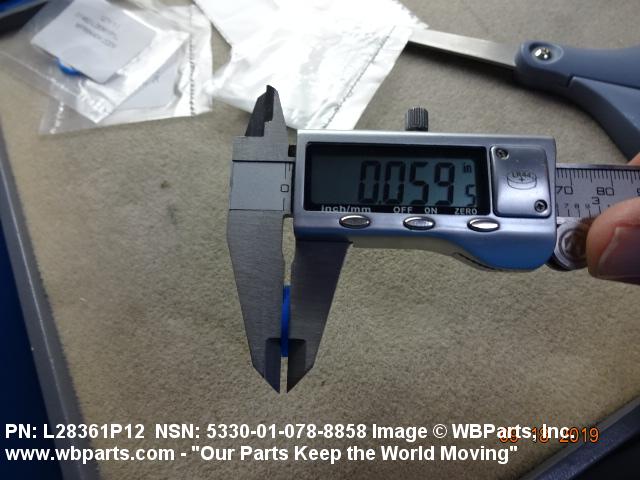

CROSS-SECTIONAL THICKNESS	0.050 INCHES MINIMUM AND 0.070 INCHES MAXIMUM

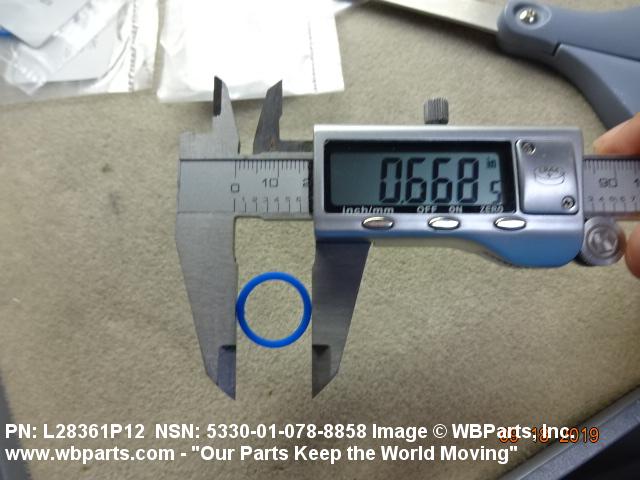

OUTSIDE DIAMETER	0.663 INCHES MINIMUM AND 0.673 INCHES MAXIMUM

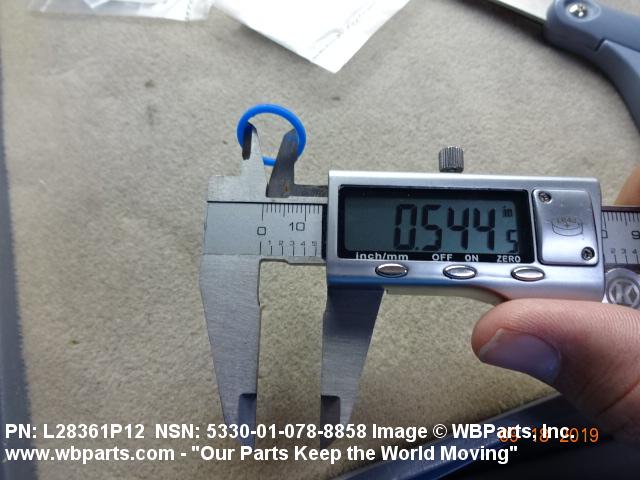

APERTURE DIAMETER	0.540 INCHES MINIMUM AND 0.550 INCHES MAXIMUM
MANUFACTURERS CODE	07482
DESIGN CONTROL REFERENCE	L28361P12

Restrictions/Controls & Freight Information | NSN 5330-01-078-8858

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Z	240 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-078-8858

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Z	240 months
Purchasing	QTY UOM	1 EA : Each
