NSN 5330-01-087-6393 1411, 4021112, 402111-2
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-087-6393 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 1411, 4021112, 402111-2, 5330-01-087-6393, 01-087-6393, 5330010876393, 010876393
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 DEC 1979 | 01-087-6393 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-01-087-6393
Demand History | NSN 5330-01-087-6393
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 402111-2 | 2012-02-56 | 891 | |
| 402111-2 | 2011-08-222 | 901 | |
| 402111-2 | 2011-07-211 | 901 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-087-6393
Technical Data | NSN 5330-01-087-6393
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| CONSTRUCTION | SOLID |

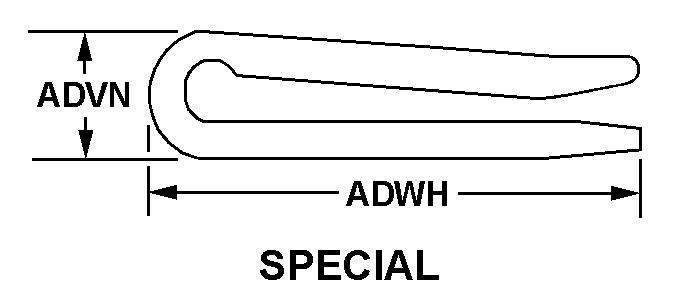

| CROSS-SECTIONAL SHAPE STYLE | H38 SPECIAL |
| CROSS-SECTIONAL HEIGHT | 0.281 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.563 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A15 STRIP |
| OVERALL LENGTH | 8.688 INCHES NOMINAL |
| ATTACHMENT METHOD | CEMENTED |
| MANUFACTURERS CODE | 96214 |
| DESIGN CONTROL REFERENCE | 402111-2 |
Restrictions/Controls & Freight Information | NSN 5330-01-087-6393
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-087-6393
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | G69 | Department of Transportation Federal Aviation Administration ATTN: COE AML-030 TSF BLDG 215 PO BOX 25082 Oklahoma City, OK 73125-0082 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | G | GENERAL SERVICES ADMINISTRATION (GSA)/CIVIL AGENCY INTEGRATED MATERIEL MANAGED, STOCKED AND ISSUED Identifies GSA/Civil Agency-managed items available from GSA/Civil Agency supply distribution facilities. Requisitions and fund citations will be submitted in accordance with GSA/Civil Agency/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
