NSN 5330-01-090-1913 MILP2693, MIL-P-2693, 5034644011ITEM14
Product Details | PACKING MATERIAL
5330-01-090-1913 Any material specifically designed and constructed to resist deterioration from the action of heat, gas, chemicals or liquids and used to create a tight seal. It is supplied in loose form or in coils, spirals, spools or cut lengths, usually having a square or round cross section. For rubber items having a round cross section, see RUBBER ROUND SECTION. Excludes ROPE, ASBESTOS; CALKING COTTON; and CALKING LEAD. See also PACKING, PREFORMED; and OAKUM.
Part Alternates: MILP2693, MIL-P-2693, 5034644011ITEM14, 503-4644011ITEM14, 5330-01-090-1913, 01-090-1913, 5330010901913, 010901913
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 FEB 1980 | 01-090-1913 | 04531 ( PACKING MATERIAL ) |
Drawings & Photos | NSN 5330-01-090-1913
Demand History | NSN 5330-01-090-1913
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-090-1913 | 2025-09-260 | 136 | DIBBS |
| 5330-01-090-1913 | 2022-04-97 | 100 | DIBBS |
| 5330-01-090-1913 | 2021-01-28 | 38 | DIBBS |
| 5330-01-090-1913 | 2020-11-317 | 157 | DIBBS |
| 5330-01-090-1913 | 2017-08-233 | 100 | United States |
| 5330-01-090-1913 | 2014-05-146 | 571 | DIBBS |
| 5330-01-090-1913 | 2013-09-261 | 50 | DIBBS |
| 5330-01-090-1913 | 2013-09-259 | 221 | DIBBS |
| 5330-01-090-1913 | 2012-04-116 | 75 | DIBBS |
| 5330-01-090-1913 | 2012-03-76 | 47 | DIBBS |
| 5330-01-090-1913 | 2012-03-76 | 100 | DIBBS |
| 5330-01-090-1913 | 2011-06-157 | 59 | DIBBS |
| 5330-01-090-1913 | 2011-05-135 | 30 | DIBBS |
| 5330-01-090-1913 | 2008-09-246 | 126 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-090-1913
Technical Data | NSN 5330-01-090-1913
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, MIL-P-2693, TYPE A |
| MINIMUM TENSILE STRENGTH | 2000 POUNDS PER SQUARE INCH |
| TEMP RATING | NOT RATED |

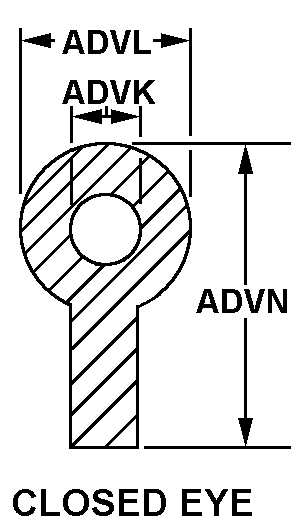

| CROSS-SECTIONAL SHAPE STYLE | 32 CLOSED EYE |
| CROSS SECTION INSIDE DIAMETER | 0.438 INCHES NOMINAL |
| CROSS SECTION OUTSIDE DIAMETER | 0.531 INCHES MINIMUM AND 0.593 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 1.250 INCHES MINIMUM AND 1.374 INCHES MAXIMUM |
| LENGTH | 480.000 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 3 SIZE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-P-2693 |
Restrictions/Controls & Freight Information | NSN 5330-01-090-1913
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-090-1913
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
