NSN 5330-01-114-3826 2600372, 01-114-3826, 011143826
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-114-3826 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 2600372, 5330-01-114-3826, 01-114-3826, 5330011143826, 011143826
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JUN 1981 | 01-114-3826 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |

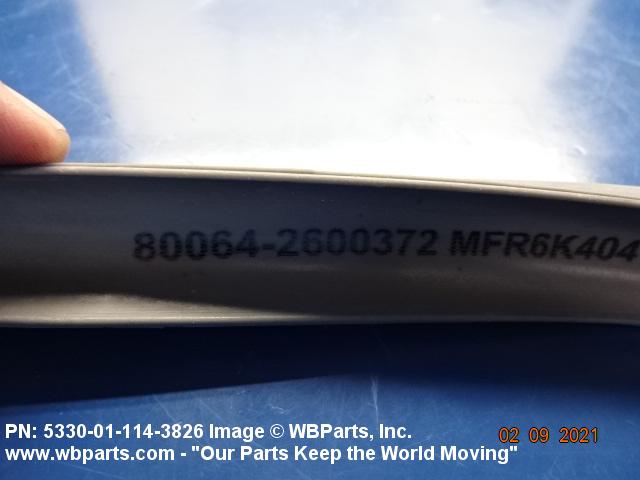

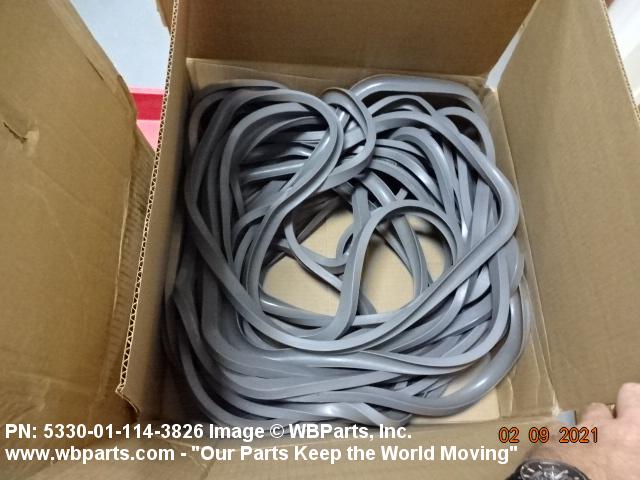

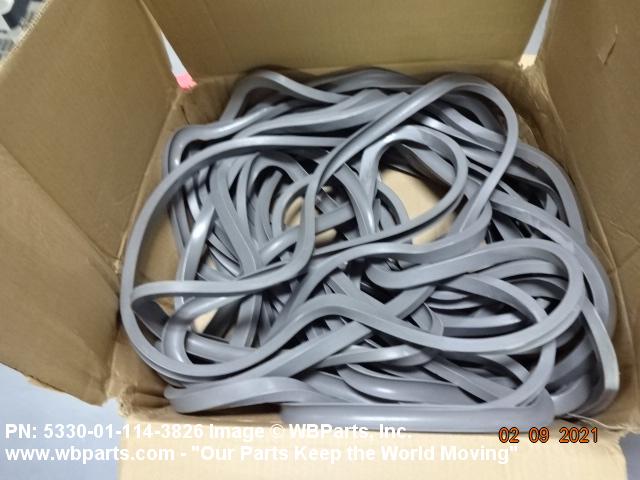

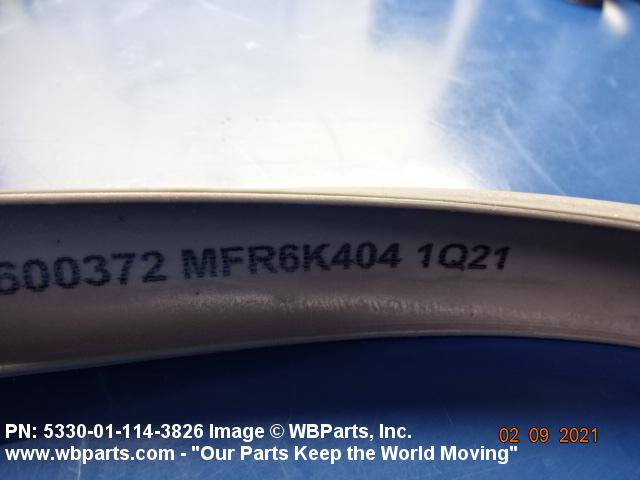

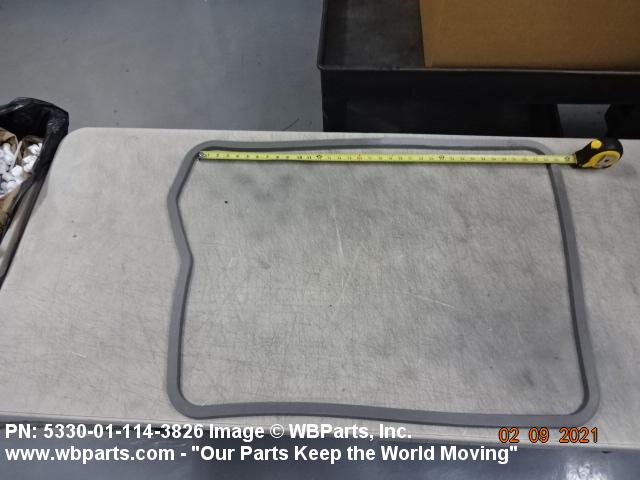

Drawings & Photos | NSN 5330-01-114-3826
Demand History | NSN 5330-01-114-3826
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-114-3826 | 2021-03-89 | 129 | DIBBS |
| 5330-01-114-3826 | 2021-03-69 | 10 | US |
| 5330-01-114-3826 | 2021-02-56 | 10 | BE |
| 5330-01-114-3826 | 2021-02-53 | 10 | Thailand |
| 5330-01-114-3826 | 2021-02-40 | 10 | BE |
| 5330-01-114-3826 | 2020-12-338 | 386 | DIBBS |
| 5330-01-114-3826 | 2020-11-322 | 20 | United States |
| 5330-01-114-3826 | 2020-11-310 | 219 | DIBBS |
| 5330-01-114-3826 | 2020-11-309 | 30 | US |
| 5330-01-114-3826 | 2020-11-309 | 61 | US |
| 5330-01-114-3826 | 2020-10-304 | 30 | US |
| 5330-01-114-3826 | 2020-10-304 | 61 | US |
| 5330-01-114-3826 | 2020-10-296 | 91 | DIBBS |
| 5330-01-114-3826 | 2019-12-349 | 150 | DIBBS |
| 5330-01-114-3826 | 2017-06-155 | 130 | DIBBS |
| 5330-01-114-3826 | 2017-04-95 | 5 | Taiwan |
| 5330-01-114-3826 | 2016-05-125 | 5 | Taiwan |
| 5330-01-114-3826 | 2016-03-76 | 108 | DIBBS |
| 5330-01-114-3826 | 2015-11-305 | 74 | DIBBS |
| 5330-01-114-3826 | 2014-12-337 | 158 | DIBBS |
| 5330-01-114-3826 | 2014-06-180 | 7 | DIBBS |
| 5330-01-114-3826 | 2014-06-172 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-114-3826
Related Products | NSN 5330-01-114-3826
Technical Data | NSN 5330-01-114-3826
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ZZ-R-765,CLASS 3B,GRADE 30 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | GRAY |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | H103 U SHAPE |

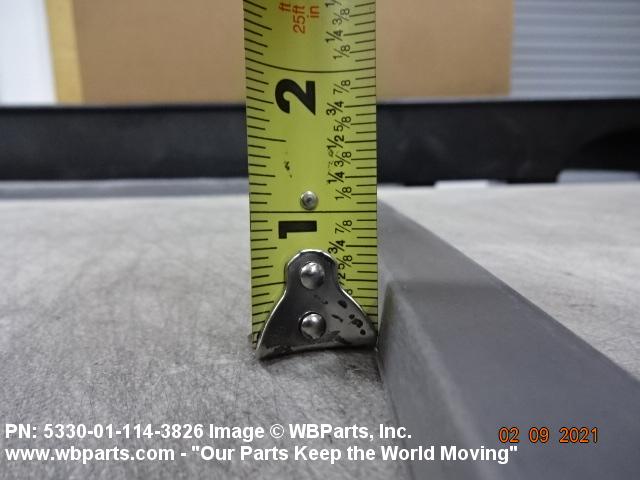

| CROSS-SECTIONAL HEIGHT | 0.520 INCHES NOMINAL |

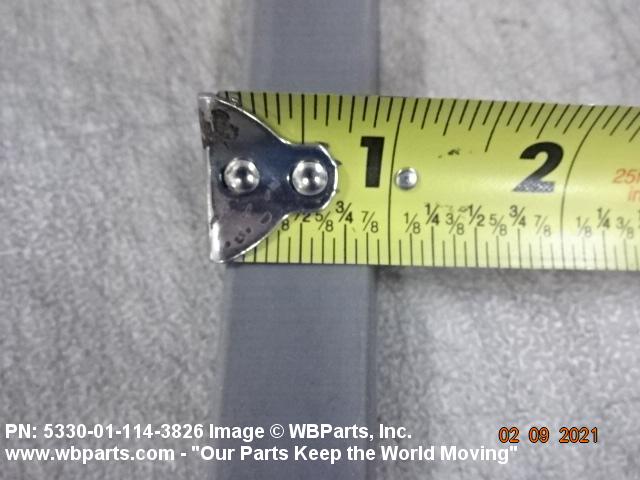

| CROSS-SECTIONAL WIDTH | 1.000 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A4D NON-CIRCULAR |
| INSIDE CORNER RADIUS | 2.380 INCHES NOMINAL |
| APERTURE WIDTH | 25.310 INCHES NOMINAL |
| APERTURE LENGTH | 34.620 INCHES NOMINAL |

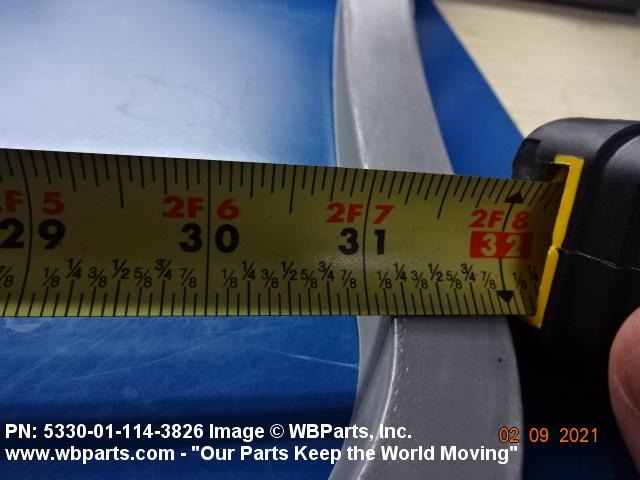

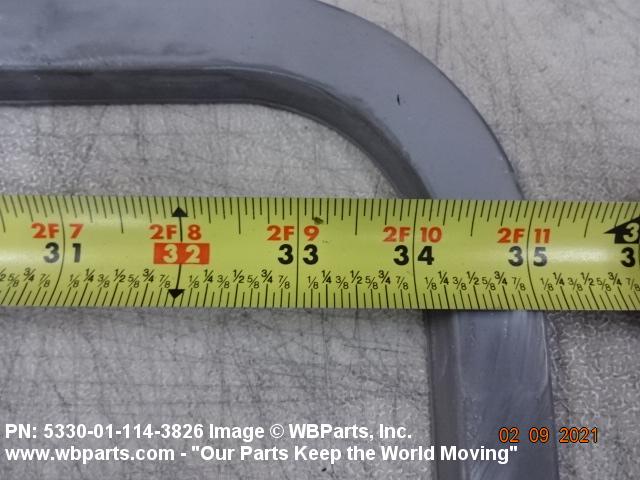

| SPECIAL FEATURES | IRREGULAR SHAPE,ONE SIDE 35.62 IN OUTSIDE LENGTH,OTHER SIDE 32.18 IN OUTSIDE LENGTH;OVERALL WIDTH 26.31 IN. |
Restrictions/Controls & Freight Information | NSN 5330-01-114-3826
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-114-3826
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
