NSN 5330-01-116-8118 A2873300, A2873-300, ST7M278300
Product Details | GASKET
5330-01-116-8118 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: A2873300, A2873-300, ST7M278300, ST7M278-300, GS570FD48, 10119644 , 2873300, 2873-300, 7D0065300, 7D0065-300, 5330-01-116-8118, 01-116-8118, 5330011168118, 011168118
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 AUG 1981 | 01-116-8118 | 04522 ( GASKET ) |

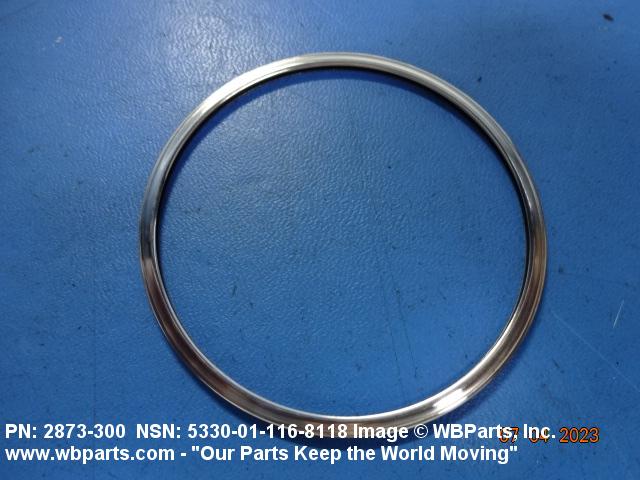

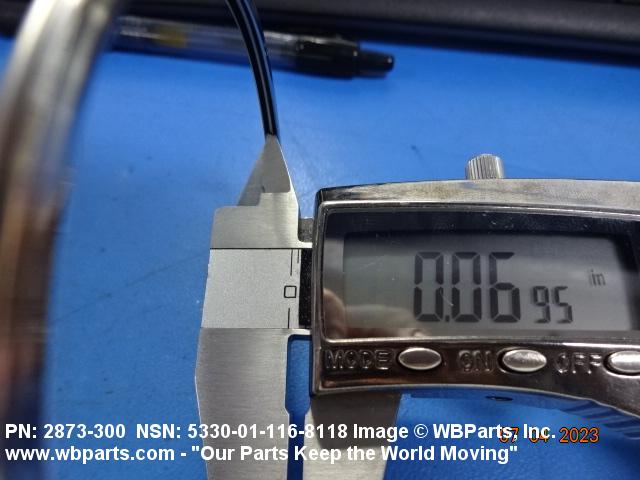

Drawings & Photos | NSN 5330-01-116-8118
Demand History | NSN 5330-01-116-8118
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST7M278300 | 2024-09-262 | 20 | us |
| 2873300 | 2024-08-215 | 2 | US |
| 5330-01-116-8118 | 2024-08-215 | 10 | US |
| A2873300 | 2023-08-234 | 6 | CA |
| 2873300 | 2023-08-222 | 1 | United States |
| 5330-01-116-8118 | 2022-11-306 | 4 | United States |
| A2873300 | 2021-09-270 | 5 | Canada |
| A2873300 | 2021-05-141 | 1 | United States |
| A2873300 | 2008-06-163 | 30 | US |
Cross Reference | NSN 5330-01-116-8118
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2873-300 | 15284 | EATON CORPORATION DBA FLUID CONVEYANCE |
| 7D0065-300 | 88277 | BOEING COMPANY, THE DBA BOEING |
| A2873-300 | 15284 | EATON CORPORATION DBA FLUID CONVEYANCE |
| GS570FD48 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| ST7M278-300 | 0HRD8 | JETSEAL INC |
| ST7M278-300 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-116-8118
Technical Data | NSN 5330-01-116-8118
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F4 METAL AND NONMETALLIC MATERIALS |

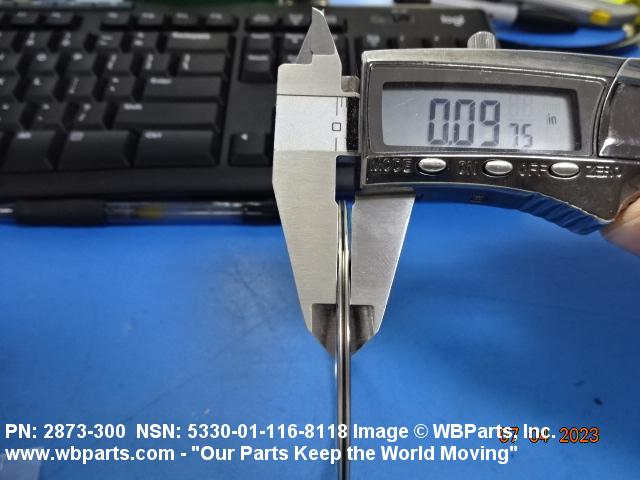

| CROSS-SECTIONAL THICKNESS | 0.103 INCHES MINIMUM AND 0.113 INCHES MAXIMUM |
| STYLE DESIGNATOR | B1 CIRCULAR |

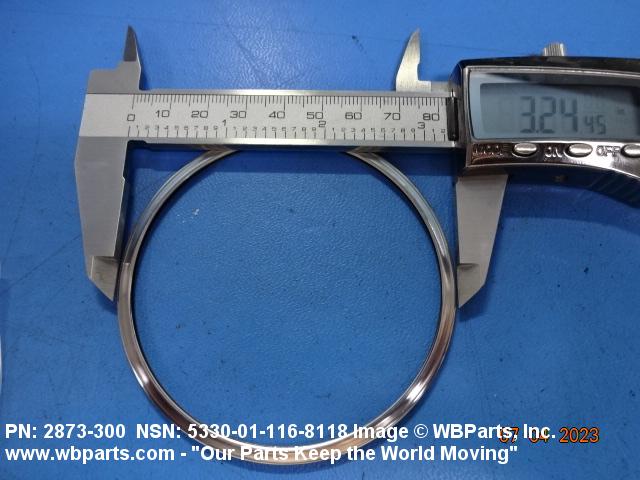

| OUTSIDE DIAMETER | 3.243 INCHES MINIMUM AND 3.249 INCHES MAXIMUM |
| APERTURE DIAMETER | 2.958 INCHES MINIMUM AND 2.978 INCHES MAXIMUM |
| III TEMP RATING | -57.0 DEG CELSIUS AND 649.0 DEG CELSIUS |
| III END ITEM IDENTIFICATION | AIRCRAFT, E-2C HAWKEYE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SEAL, E-RING |
Restrictions/Controls & Freight Information | NSN 5330-01-116-8118
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-116-8118
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
