NSN 5330-01-132-3429 MS28932C0407, MS28932C04-07, 01-132-3429
Product Details | PREFORMED MECHANICAL FELT
5330-01-132-3429 An item manufactured to predetermined dimensions. It is either a precut strip or an item of various peripheral shapes and may contain bolt hole(s). It is used as a seal, wiper, mounting pad or for similar purposes. Excludes GASKET and PACKING PREFORMED.
Part Alternates: MS28932C0407, MS28932C04-07, 5330-01-132-3429, 01-132-3429, 5330011323429, 011323429
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAY 1982 | 01-132-3429 | 18443 ( FELT, MECHANICAL, PREFORMED ) |

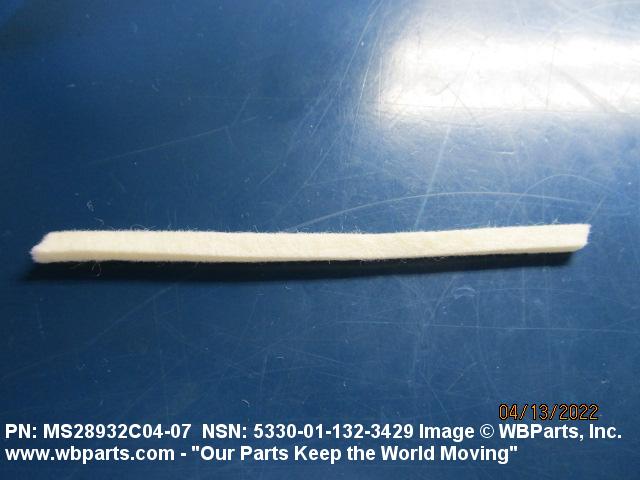

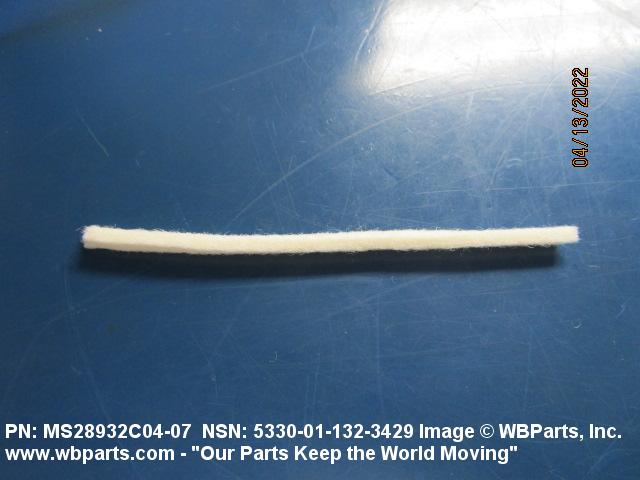

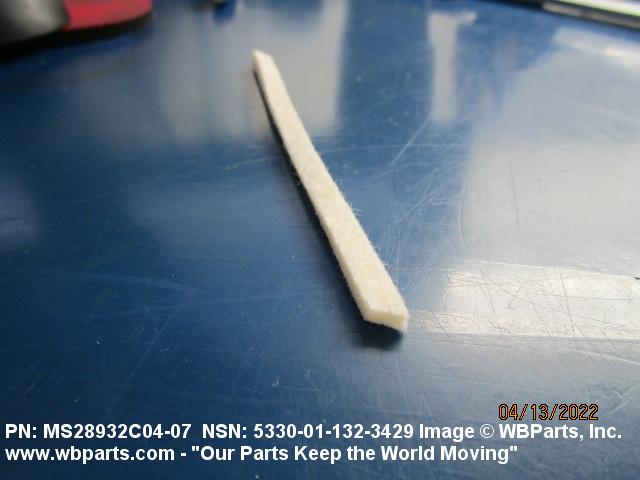

Drawings & Photos | NSN 5330-01-132-3429
Demand History | NSN 5330-01-132-3429
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-132-3429 | 2023-04-94 | 10 | United States |
| 5330-01-132-3429 | 2022-03-74 | 30 | United States |
| 5330-01-132-3429 | 2021-09-266 | 3 | United States |
| 5330-01-132-3429 | 2021-07-210 | 20 | United States |
Cross Reference | NSN 5330-01-132-3429
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS28932C04-07 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-132-3429
Related Products | NSN 5330-01-132-3429
Technical Data | NSN 5330-01-132-3429
| Characteristic | Specifications |
|---|---|
| MATERIAL | WOOL COMP 12R1 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | C-F-206 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

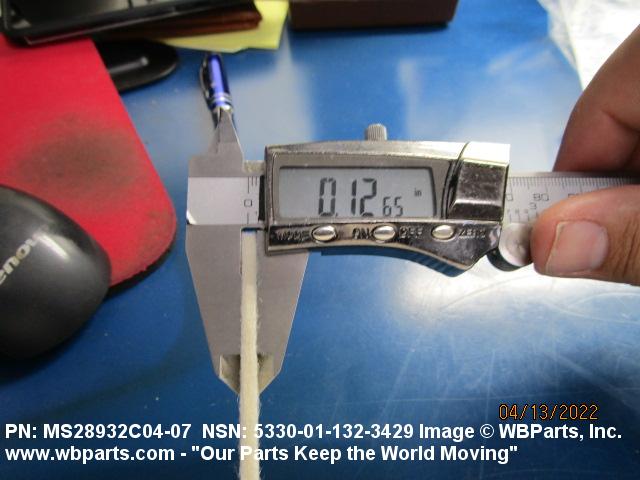

| CROSS-SECTIONAL HEIGHT | 0.111 INCHES MINIMUM AND 0.139 INCHES MAXIMUM |

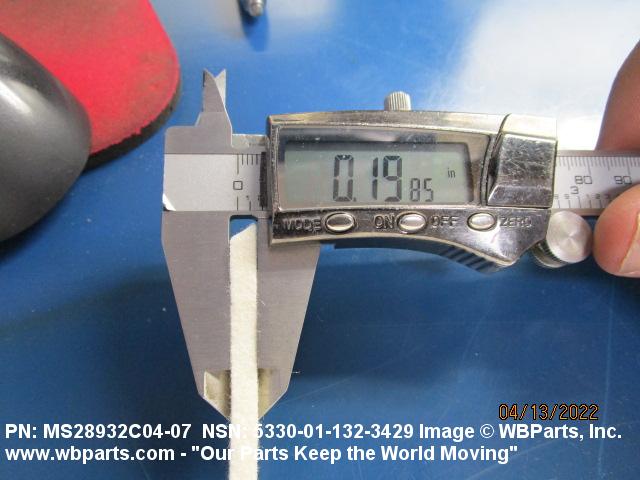

| CROSS-SECTIONAL WIDTH | 0.188 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |
| SPECIAL FEATURES | ENDS TO BE CUT PARALLEL ON 45 DEGREE ANGLE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28932C04-07 |
Restrictions/Controls & Freight Information | NSN 5330-01-132-3429
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 067990 | FELT NOI/FELT IN SHAPES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-132-3429
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
