NSN 5330-01-137-7083 NAS1523AA3E, 10116749 , 01-137-7083

Product Details | PACKING WITH RETAINER

5330-01-137-7083 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.

Part Alternates: NAS1523AA3E, 10116749 , 5330-01-137-7083, 01-137-7083, 5330011377083, 011377083

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 SEP 1982	01-137-7083	05680 ( PACKING WITH RETAINER )

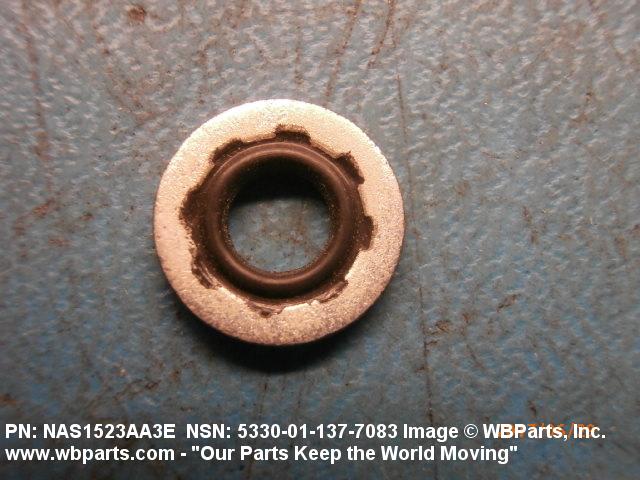

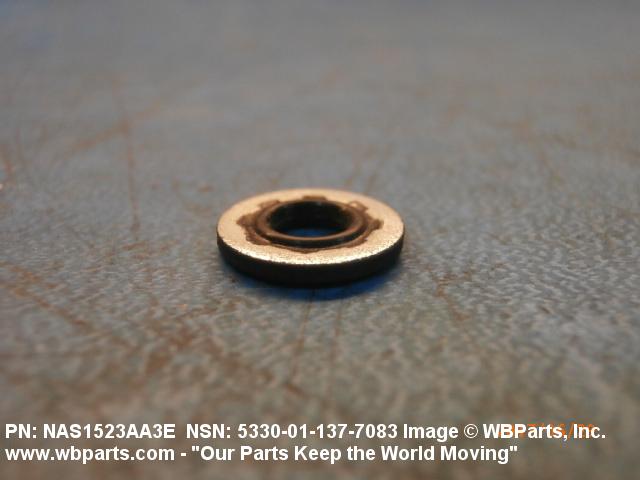

Drawings & Photos | NSN 5330-01-137-7083

Part Number	Request Date	QTY	Origin
5330-01-137-7083	2025-12-350	11729	DIBBS
5330-01-137-7083	2025-10-287	11729	DIBBS
5330-01-137-7083	2025-10-275	11729	DIBBS
5330-01-137-7083	2024-10-298	15425	DIBBS
5330-01-137-7083	2024-10-295	15425	DIBBS
5330-01-137-7083	2024-10-284	15425	DIBBS
5330-01-137-7083	2024-05-141	16861	DIBBS
5330-01-137-7083	2023-08-226	19689	DIBBS
5330-01-137-7083	2023-08-215	19689	DIBBS
5330-01-137-7083	2023-05-150	17088	DIBBS
5330-01-137-7083	2023-05-136	17088	DIBBS
5330-01-137-7083	2023-05-124	17088	DIBBS
5330-01-137-7083	2023-04-110	4009	DIBBS
5330-01-137-7083	2023-01-31	10160	DIBBS
5330-01-137-7083	2023-01-12	10160	DIBBS
5330-01-137-7083	2022-12-363	20071	DIBBS
5330-01-137-7083	2022-12-349	914	DIBBS
5330-01-137-7083	2022-12-335	2047	DIBBS
5330-01-137-7083	2022-03-76	9995	DIBBS
5330-01-137-7083	2021-05-130	13133	DIBBS
5330-01-137-7083	2021-04-105	3951	DIBBS
5330-01-137-7083	2021-04-94	3951	DIBBS
5330-01-137-7083	2017-06-164	50	United States
5330-01-137-7083	2015-04-96	8665	DIBBS
5330-01-137-7083	2014-11-306	5899	DIBBS
5330-01-137-7083	2014-08-232	1798	DIBBS
5330-01-137-7083	2013-09-247	1	DIBBS-RFPs
5330-01-137-7083	2013-07-206	1	DIBBS-RFPs

Cross Reference | NSN 5330-01-137-7083

Part Number	Cage Code	Manufacturer
NAS1523AA3E	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-137-7083

Compare

Related Products | NSN 5330-01-137-7083

5330-01-137-7084, 5330-01-137-7085, 5330-01-137-7086, 5330-01-137-7087, 5330-01-137-7088

Technical Data | NSN 5330-01-137-7083

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 7075 RETAINER
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-250/12 T6 FED SPEC SINGLE MATERIAL RESPONSE RETAINER
SURFACE TREATMENT	ANODIZE RETAINER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	IL-A-8625 TY 2 CL 1 MIL SPEC SINGLE TREATMENT RESPONSE RETAINER
CONSTRUCTION	ONE-PIECE
OUTSIDE DIAMETER	0.433 INCHES MINIMUM AND 0.458 INCHES MAXIMUM
PACKING INSIDE DIAMETER	0.170 INCHES MINIMUM AND 0.190 INCHES MAXIMUM

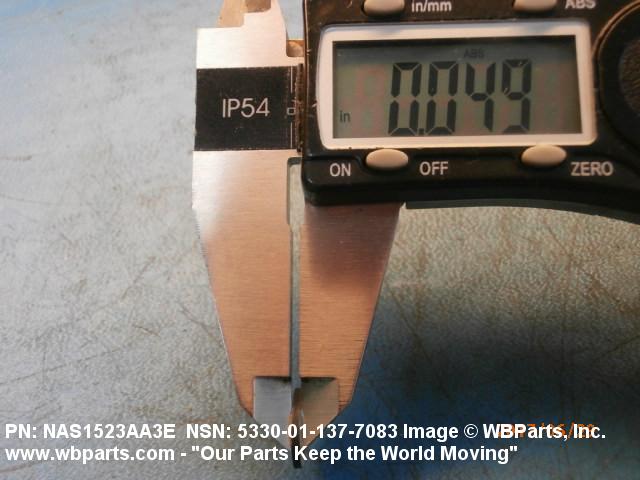

RETAINER THICKNESS	0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM

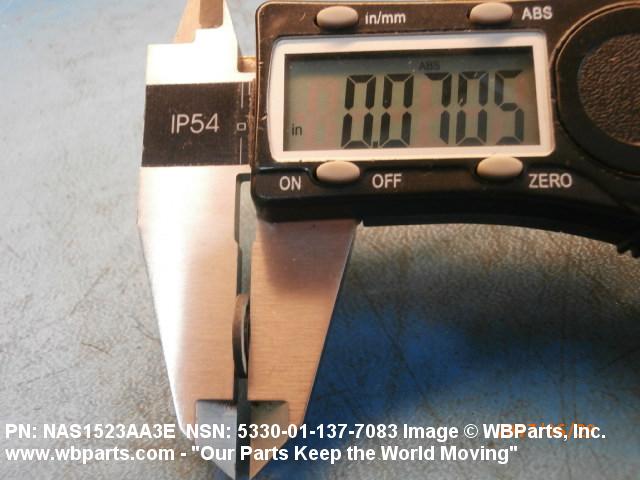

PACKING RING CROSS-SECTIONAL DIAMETER	0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS 1523 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5330-01-137-7083

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-137-7083

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
