NSN 5330-01-153-7877 XPG0261500020, 9107M23P01, 9107M23P02
Product Details | GASKET
5330-01-153-7877 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: XPG0261500020, 9107M23P01, 9107M23P02, 5330-01-153-7877, 01-153-7877, 5330011537877, 011537877
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAY 1983 | 01-153-7877 | 04522 ( GASKET ) |

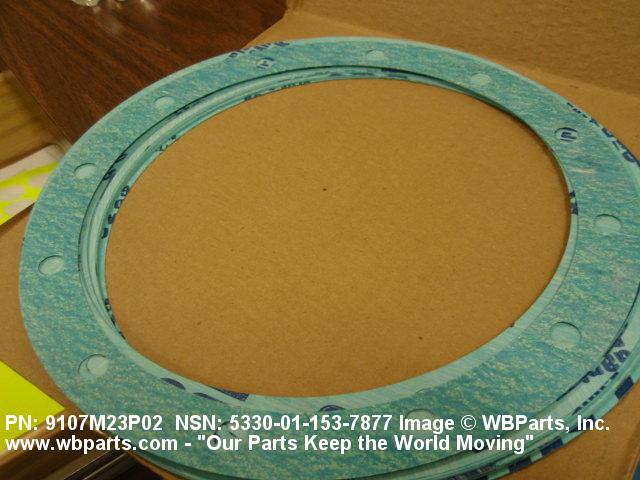

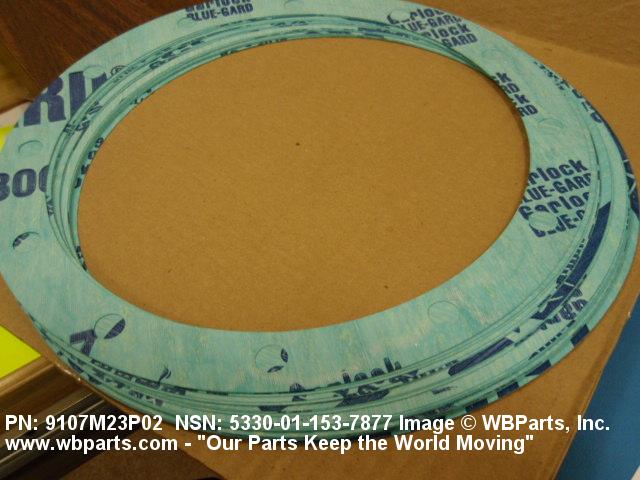

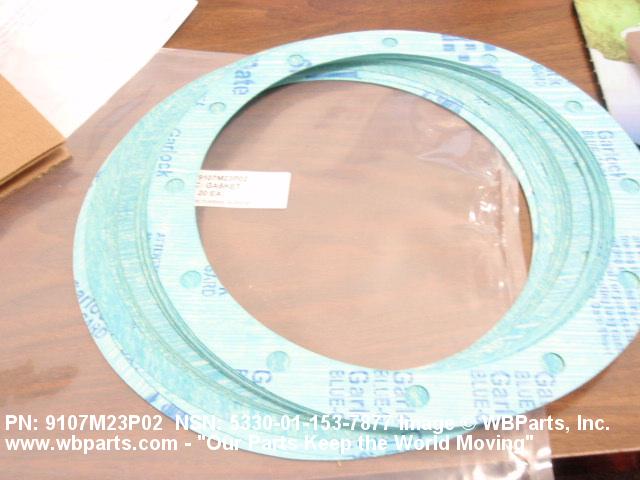

Drawings & Photos | NSN 5330-01-153-7877
Demand History | NSN 5330-01-153-7877
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9107M23P02 | 2025-07-198 | 389 | DIBBS |
| XPG0261500020 | 2025-07-198 | 389 | DIBBS |
| 9107M23P02 | 2025-05-128 | 1 | DIBBS |
| XPG0261500020 | 2025-05-128 | 1 | DIBBS |
| 9107M23P02 | 2025-02-51 | 178 | DIBBS |
| XPG0261500020 | 2025-02-51 | 178 | DIBBS |
| 5330-01-153-7877 | 2025-02-50 | 6 | US |
| 9107M23P02 | 2024-03-71 | 117 | DIBBS |
| XPG0261500020 | 2024-03-71 | 117 | DIBBS |
| 9107M23P02 | 2023-04-96 | 261 | DIBBS |
| 9107M23P02 | 2022-10-300 | 84 | DIBBS |
| 9107M23P02 | 2022-03-62 | 72 | DIBBS |
| 9107M23P02 | 2021-09-272 | 2 | ID |
| 9107M23P02 | 2021-04-97 | 1 | United States |
| 9107M23P02 | 2020-03-75 | 147 | DIBBS |
| 9107M23P02 | 2020-01-22 | 14 | TH |
| 9107M23P02 | 2019-08-240 | 109 | DIBBS |
| 9107M23P02 | 2019-07-197 | 1 | AU |
| 011537877 | 2017-10-278 | 2 | AE |
| 9107M23P02 | 2017-04-109 | 1 | US |
| 9107M23P02 | 2017-04-103 | 1 | SA |
| 5330-01-153-7877 | 2016-10-286 | 120 | DIBBS |
| 5330-01-153-7877 | 2016-03-82 | 28 | DIBBS |
| 9107M23P01 | 2015-06-160 | 1 | US |
| 5330-01-153-7877 | 2014-10-286 | 20 | United States |
| 5330-01-153-7877 | 2014-10-274 | 10 | US |
| 5330-01-153-7877 | 2014-07-208 | 6 | US |
| 5330-01-153-7877 | 2012-10-290 | 288 | DIBBS |
| 9107M23P02 | 2012-01-17 | 2 | RU |
| 9107M23P02 | 2012-01-02 | 4 | France |
| 9107M23P02 | 2012-01-02 | 4 | France |
| 9107M23P02 | 2010-11-334 | 20 | United States |
| 9107M23P02 | 2009-08-225 | 20 | United States |
| 9107M23P02 | 2009-05-148 | 10 | United States |
| 5330-01-153-7877 | 2008-11-318 | 1 | Hungary |
| 9107M23P02 | 2008-09-259 | 18 | HU |
| 5330-01-153-7877 | 2008-04-105 | 236 | DIBBS |
| 5330-01-153-7877 | 2008-02-35 | 91 | DIBBS |
| 5330-01-153-7877 | 2008-02-35 | 170 | DIBBS |
| 5330-01-153-7877 | 2007-07-193 | 20 | Netherlands |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-153-7877
Technical Data | NSN 5330-01-153-7877
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F39 HOLLOW |
| CROSS-SECTIONAL THICKNESS | 0.005 INCHES MINIMUM AND 0.010 INCHES MAXIMUM |
| STYLE DESIGNATOR | B15 CIRCULAR |
| HOLE DIAMETER | 0.450 INCHES MINIMUM AND 0.480 INCHES MAXIMUM |
| BOLT CIRCLE DIAMETER | 9.070 INCHES NOMINAL |
| OUTSIDE DIAMETER | 11.094 INCHES MINIMUM AND 11.156 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 12 |
| SPECIFICATION/STANDARD DATA | 07482-9107M23 MANUFACTURERS SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 5330-01-153-7877
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-153-7877
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
