NSN 5330-01-162-4729 NAS1523AA5R, 01-162-4729, 011624729
Product Details | PACKING WITH RETAINER
5330-01-162-4729 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: NAS1523AA5R, 5330-01-162-4729, 01-162-4729, 5330011624729, 011624729
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 SEP 1983 | 01-162-4729 | 05680 ( PACKING WITH RETAINER ) |

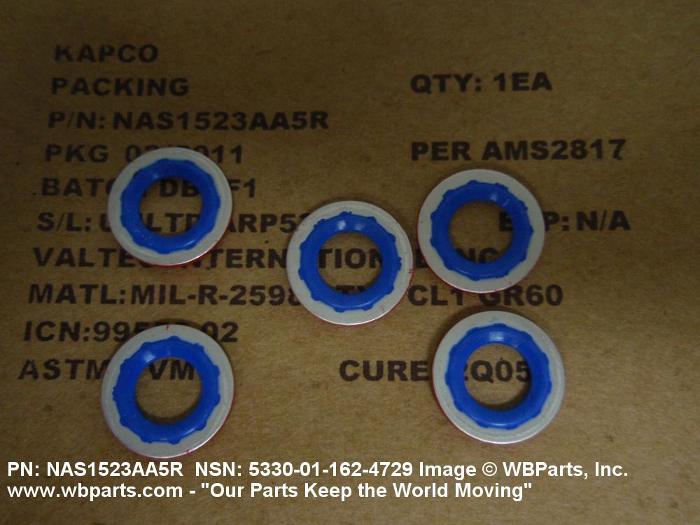

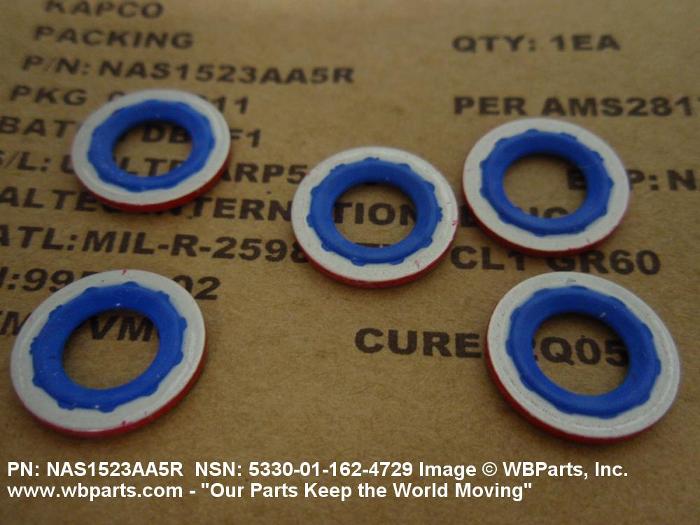

Drawings & Photos | NSN 5330-01-162-4729
Demand History | NSN 5330-01-162-4729
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-162-4729 | 2024-02-46 | 100 | United States |
| 5330-01-162-4729 | 2024-01-26 | 200 | United States |
| 5330-01-162-4729 | 2023-10-282 | 100 | United States |
| NAS1523AA5R | 2023-09-269 | 100 | United States |
| 5330-01-162-4729 | 2021-03-76 | 5 | US |
| NAS1523AA5R | 2020-05-139 | 220 | United States |
| NAS1523AA5R | 2019-05-143 | 80 | United States |
| 5330-01-162-4729 | 2018-06-156 | 1287 | DIBBS |
| NAS1523AA5R | 2016-08-223 | 288 | United States |
| NAS1523AA5R | 2011-02-32 | 50 | United States |
| NAS1523AA5R | 2010-12-348 | 100 | United States |
| 5330-01-162-4729 | 2010-04-92 | 1025 | DIBBS |
| 5330-01-162-4729 | 2009-08-215 | 1200 | DIBBS |
| 5330-01-162-4729 | 2009-07-212 | 197 | DIBBS |
| 5330-01-162-4729 | 2008-12-336 | 99 | DIBBS |
| 5330-01-162-4729 | 2008-09-273 | 404 | DIBBS |
| NAS1523AA5R | 2008-03-77 | 20 | ZA |
Cross Reference | NSN 5330-01-162-4729
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1523AA5R | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-162-4729
Related Products | NSN 5330-01-162-4729
Technical Data | NSN 5330-01-162-4729
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROSILICONE CLASS FQ PACKING ALUMINUM ALLOY 7075 RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-25988,TY1,CL1,GR60 MIL SPEC SINGLE MATERIAL RESPONSE PACKING QQ-A-250/12 T6 FED SPEC SINGLE MATERIAL RESPONSE RETAINER |
| SURFACE TREATMENT | ANODIZE RETAINER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY2,CL1 MIL SPEC SINGLE TREATMENT RESPONSE RETAINER |
| CONSTRUCTION | ONE-PIECE |
| OUTSIDE DIAMETER | 0.588 INCHES MINIMUM AND 0.613 INCHES MAXIMUM |
| PACKING INSIDE DIAMETER | 0.291 INCHES MINIMUM AND 0.311 INCHES MAXIMUM |
| RETAINER THICKNESS | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| PACKING RING CROSS-SECTIONAL DIAMETER | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| SPECIAL FEATURES | COLOR RED |
| SPECIFICATION/STANDARD DATA | 80205 NAS1523 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5330-01-162-4729
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-162-4729
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
