NSN 5330-01-178-7350 8387657, 01-178-7350, 011787350
Product Details | NONMETALLIC CHANNEL SEAL
5330-01-178-7350 An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL.
Part Alternates: 8387657, 5330-01-178-7350, 01-178-7350, 5330011787350, 011787350
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 MAY 1984 | 01-178-7350 | 32846 ( SEAL, NONMETALLIC CHANNEL ) |
Drawings & Photos | NSN 5330-01-178-7350
Cross Reference | NSN 5330-01-178-7350
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8387657 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-178-7350
Technical Data | NSN 5330-01-178-7350
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| CONSTRUCTION | SPLIT |

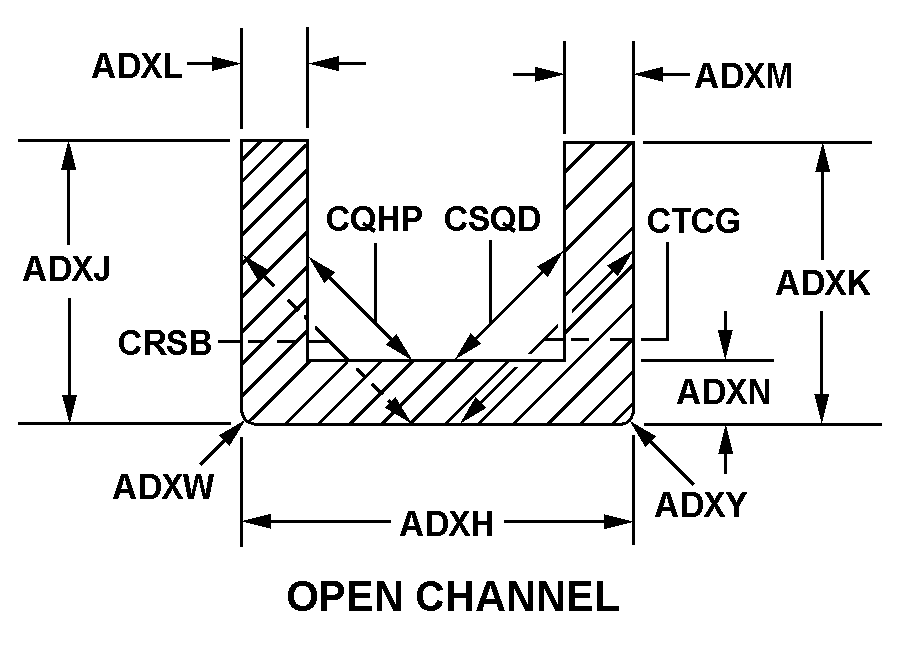

| CROSS-SECTIONAL SHAPE STYLE | K2 OPEN CHANNEL |
| WEB WIDTH | 0.937 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 0.750 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.750 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| WEB THICKNESS | 0.125 INCHES NOMINAL |
| LEFT FLANGE OUTER RADIUS AT WEB | 0.062 INCHES NOMINAL |
| RIGHT FLANGE OUTER RADIUS AT WEB | 0.062 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| LEFT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| STYLE DESIGNATOR | A6 STRIP |
| OVERALL LENGTH | 84.000 INCHES NOMINAL |
| END CUT ANGLE | 45.0 DEGREES |

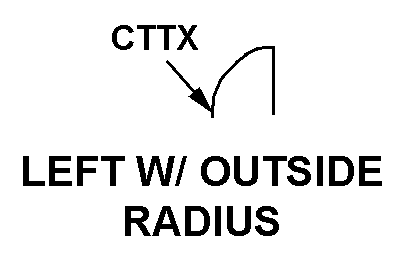

| LEFT TIP STYLE | K3A LEFT W/OUTSIDE RADIUS |
| LEFT TIP RADIUS | 0.266 INCHES NOMINAL |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | IDENTICAL |
| ATTACHMENT METHOD | ROUND HOLE AND SLOT |
| ATTACHMENT FEATURE QUANTITY | 1 AND 3 |
| ATTACHMENT HOLE DIAMETER | 0.172 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| ATTACHMENT FEATURE LENGTH | 0.687 INCHES NOMINAL |
| ATTACHMENT FEATURE WIDTH | 0.187 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 2320004403349 TRUCK TANK |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8387657 |
