NSN 5330-01-231-6978 1212763, 01-231-6978, 012316978
Product Details | GASKET
5330-01-231-6978 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 1212763, 5330-01-231-6978, 01-231-6978, 5330012316978, 012316978
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 MAY 1986 | 01-231-6978 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-01-231-6978
Demand History | NSN 5330-01-231-6978
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1212763 | 2006-07-193 | 4 | IL |
Cross Reference | NSN 5330-01-231-6978
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1212763 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-231-6978
Technical Data | NSN 5330-01-231-6978
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-6855 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

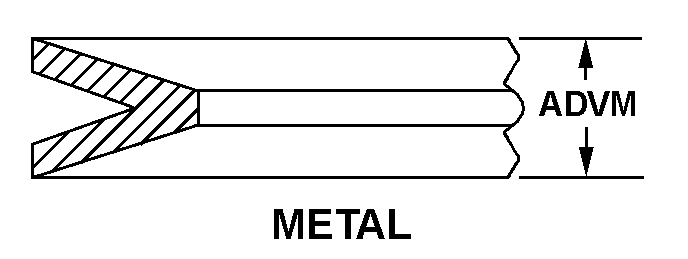

| CROSS-SECTIONAL SHAPE STYLE | F63 METAL |
| CROSS-SECTIONAL THICKNESS | 0.228 INCHES NOMINAL |
| STYLE DESIGNATOR | B1 CIRCULAR |
| OUTSIDE DIAMETER | 2.780 INCHES NOMINAL |
| APERTURE DIAMETER | 2.312 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | MARINE LOCATION MARKER MK25 MODS 2 AND 3 |
| MANUFACTURERS CODE | 30003 |
| DESIGN CONTROL REFERENCE | 1212763 |
Restrictions/Controls & Freight Information | NSN 5330-01-231-6978
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-231-6978
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 2E | Conventional air ammunition Naval Ordnance Center, IMSD Mechanicsburg, PA |
| Issue Repair, or Requisition | BV | Controlled ammunition item. Submit/refer requisitions to NOC IMSD. Centralized control for issue of controlled ammunition items. |
| Source of Supply | NCB | Naval Ordnance Center P.O. Box 2011 Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | K | Material (explosive ordnance) Requiring Periodic Lot Number Reporting |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
