NSN 5330-01-236-8077 P53581, P5358-1, 01-236-8077
Product Details | NONMETALLIC ANGLE SEAL
5330-01-236-8077 An item fabricated from NONMETALLIC ANGLE. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting hole(s), slot(s), press fit buttons and the like, must be of one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; GASKET; and PACKING PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC ANGLE.
Part Alternates: P53581, P5358-1, 5330-01-236-8077, 01-236-8077, 5330012368077, 012368077
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUL 1986 | 01-236-8077 | 32845 ( SEAL, NONMETALLIC ANGLE ) |
Drawings & Photos | NSN 5330-01-236-8077
Cross Reference | NSN 5330-01-236-8077
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-236-8077
Technical Data | NSN 5330-01-236-8077
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC SILICONE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ZZ-R-765,CL 3B,GR 50,COLOR 37038 BLACK FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | ONE-PIECE |
| CROSS-SECTIONAL SHAPE STYLE | J1 L SHAPE |
| RIGHT/BASE FLANGE HEIGHT | 0.280 INCHES NOMINAL |
| LEFT FLANGE HEIGHT | 0.500 INCHES NOMINAL |
| LEFT FLANGE THICKNESS AT TOE | 0.070 INCHES NOMINAL |
| RIGHT/BASE FLANGE THICKNESS AT TOE | 0.070 INCHES NOMINAL |
| RIGHT/BASE FLANGE THICKNESS AT HEEL | 0.070 INCHES NOMINAL |
| LEFT FLANGE THICKNESS AT HEEL | 0.070 INCHES NOMINAL |
| INSIDE ANGLE | 45.0 DEGREES NOMINAL |

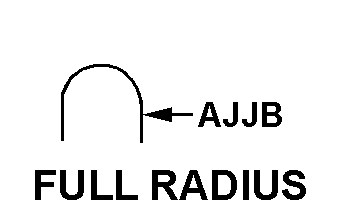

| LEFT TIP STYLE | J4A FULL RADIUS |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | IDENTICAL |
| SPECIAL FEATURES | MODIFIED U SHAPE,BOTH LEGS 80.000 IN. LG,BASE 27.720 IN. LG |
Restrictions/Controls & Freight Information | NSN 5330-01-236-8077
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
