NSN 5330-01-260-4982 NAS152316Y, NAS1523-16Y, 01-260-4982
Product Details | PACKING WITH RETAINER
5330-01-260-4982 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: NAS152316Y, NAS1523-16Y, 5330-01-260-4982, 01-260-4982, 5330012604982, 012604982
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 JUL 1987 | 01-260-4982 | 05680 ( PACKING WITH RETAINER ) |

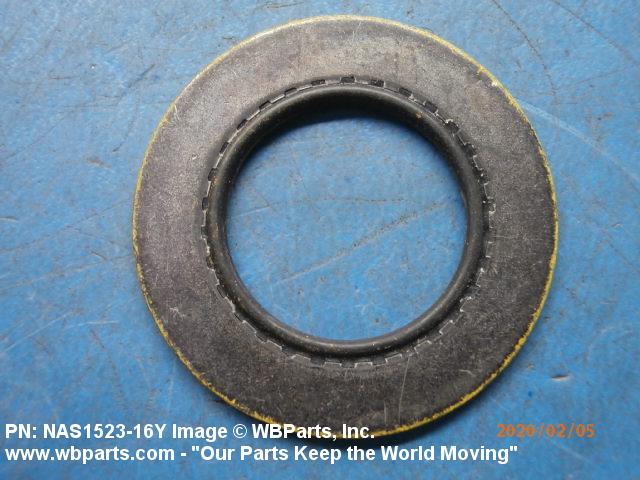

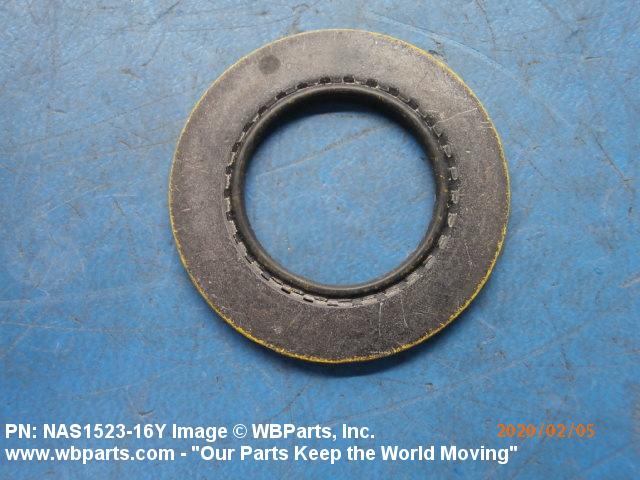

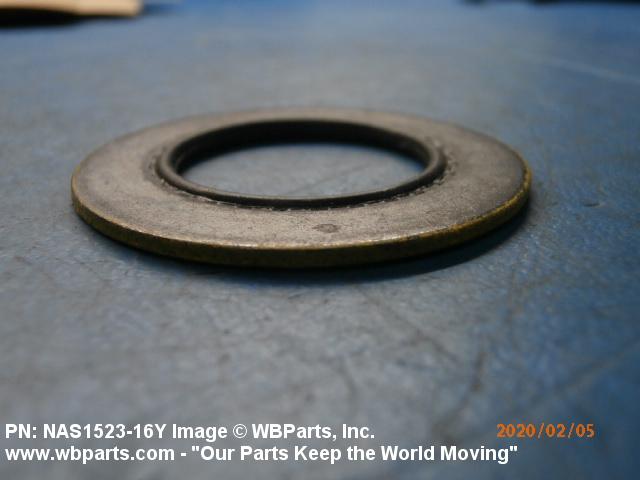

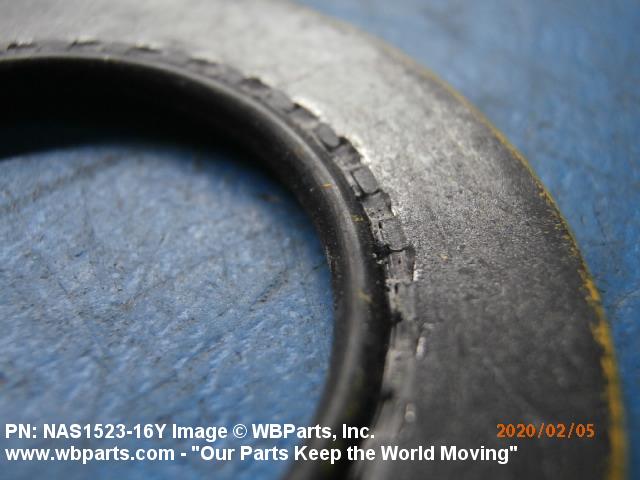

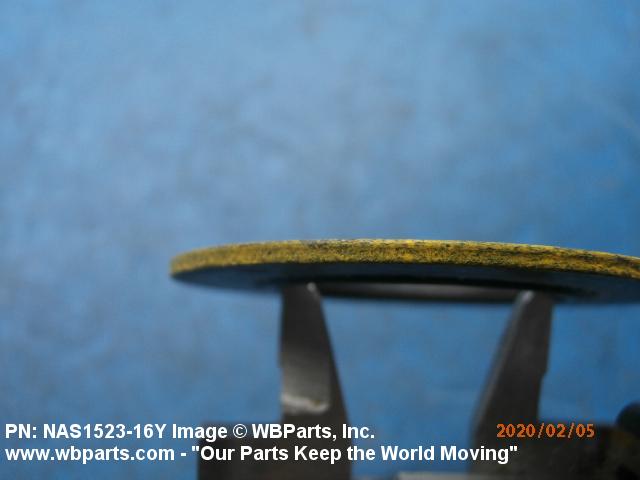

Drawings & Photos | NSN 5330-01-260-4982
Demand History | NSN 5330-01-260-4982
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS152316Y | 2025-10-276 | 5 | United States |
| NAS152316Y | 2025-10-276 | 5 | United States |
| 5330-01-260-4982 | 2025-08-238 | 5 | US |
| NAS152316Y | 2025-05-141 | 5 | US |
| 5330-01-260-4982 | 2024-09-260 | 436 | DIBBS |
| 5330-01-260-4982 | 2024-05-123 | 436 | DIBBS |
| 5330-01-260-4982 | 2023-12-346 | 382 | DIBBS |
| 5330-01-260-4982 | 2021-10-280 | 152 | DIBBS |
| 5330-01-260-4982 | 2021-07-182 | 146 | DIBBS |
| NAS152316Y | 2020-11-335 | 2 | United States |
| 5330-01-260-4982 | 2020-02-50 | 200 | DIBBS |
| NAS152316Y | 2020-01-24 | 4 | United States |
| 5330-01-260-4982 | 2019-12-352 | 157 | DIBBS |
| NAS152316Y | 2019-12-346 | 10 | US |
| 5330-01-260-4982 | 2019-08-218 | 41 | DIBBS |
| 5330-01-260-4982 | 2019-07-190 | 29 | DIBBS |
| 5330-01-260-4982 | 2018-12-336 | 29 | DIBBS |
| 5330-01-260-4982 | 2018-11-324 | 2 | DIBBS |
| 5330-01-260-4982 | 2018-11-318 | 8 | DIBBS |
| 5330-01-260-4982 | 2018-11-308 | 4 | DIBBS |
| 5330-01-260-4982 | 2018-09-261 | 2 | DIBBS |
| 5330-01-260-4982 | 2018-09-255 | 4 | US |
| 5330-01-260-4982 | 2018-09-255 | 2 | DIBBS |
| 5330-01-260-4982 | 2014-10-289 | 50 | US |
| 5330-01-260-4982 | 2008-09-272 | 73 | DIBBS |
| NAS152316Y | 2008-06-165 | 200 | United States |
Cross Reference | NSN 5330-01-260-4982
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1523-16Y | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-260-4982
Related Products | NSN 5330-01-260-4982
Technical Data | NSN 5330-01-260-4982
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR PACKING STEEL COMP 4130 RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-7362,TY 2 MIL SPEC SINGLE MATERIAL RESPONSE PACKING MIL-S-18729 MIL SPEC SINGLE MATERIAL RESPONSE RETAINER |
| SURFACE TREATMENT | CADMIUM AND CHROMATE RETAINER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CL 2 FED SPEC ALL TREATMENT RESPONSES RETAINER |
| CONSTRUCTION | ONE-PIECE |

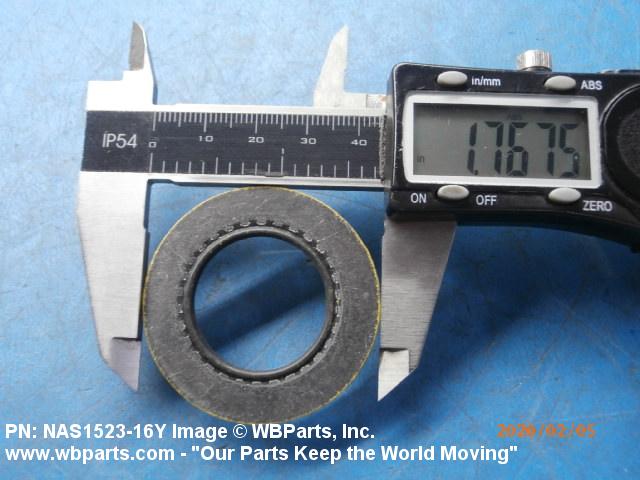

| OUTSIDE DIAMETER | 1.745 INCHES MINIMUM AND 1.770 INCHES MAXIMUM |

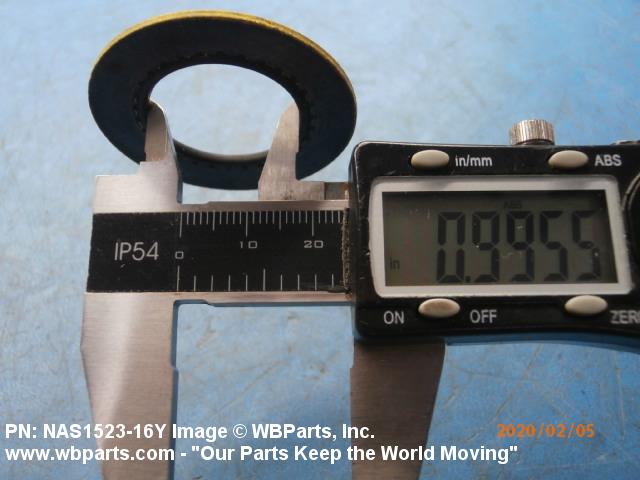

| PACKING INSIDE DIAMETER | 0.978 INCHES MINIMUM AND 0.998 INCHES MAXIMUM |

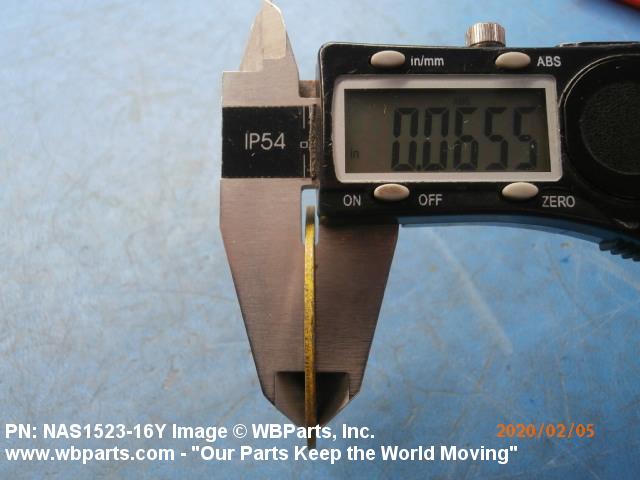

| RETAINER THICKNESS | 0.059 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |

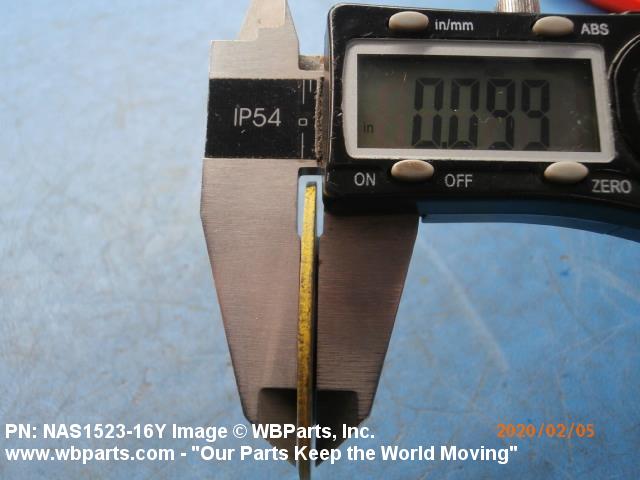

| PACKING RING CROSS-SECTIONAL DIAMETER | 0.091 INCHES MINIMUM AND 0.101 INCHES MAXIMUM |
| SPECIAL FEATURES | COLOR YELLOW |
| SPECIFICATION/STANDARD DATA | 80205-NAS 1523 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5330-01-260-4982
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-260-4982
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
