NSN 5330-01-263-9039 1C5777P77, 01-263-9039, 012639039
Product Details | GASKET
5330-01-263-9039 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 1C5777P77, 5330-01-263-9039, 01-263-9039, 5330012639039, 012639039
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 SEP 1987 | 01-263-9039 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-01-263-9039
Cross Reference | NSN 5330-01-263-9039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1C5777P77 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-263-9039
Technical Data | NSN 5330-01-263-9039
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR OVERALL |
| HARDNESS RATING | 30.0 SHORE DUROMETER A MINIMUM AND 40.0 SHORE DUROMETER A MAXIMUM OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.062 INCHES NOMINAL |

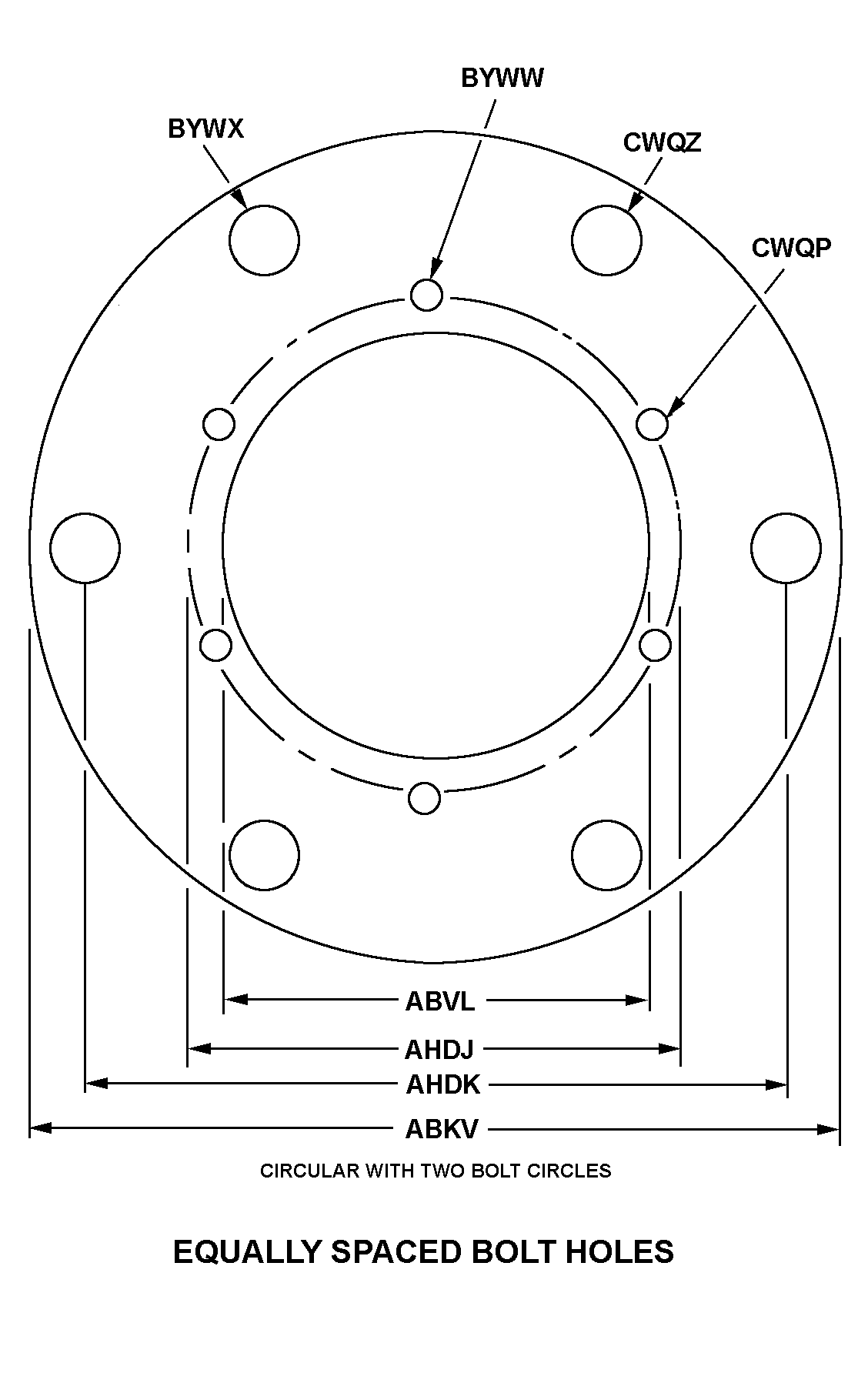

| STYLE DESIGNATOR | B35A CIRCULAR WITH TWO BOLT CIRCLES - EQUALLY SPACED BOLT HOLES |
| OUTSIDE DIAMETER | 3.234 INCHES MINIMUM AND 3.266 INCHES MAXIMUM |
| APERTURE DIAMETER | 0.355 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| FIRST BOLT CIRCLE DIAMETER | 1.032 INCHES MINIMUM AND 1.124 INCHES MAXIMUM |
| SECOND BOLT CIRCLE DIAMETER | 2.140 INCHES MINIMUM AND 2.188 INCHES MAXIMUM |
| SMALLEST BOLT HOLE DIAMETER | 0.092 INCHES MINIMUM AND 0.112 INCHES MAXIMUM |
| LARGEST BOLT HOLE DIAMETER | 0.170 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| SMALLEST BOLT HOLE QUANTITY | 3 |
| LARGEST BOLT HOLE QUANTITY | 3 |
Restrictions/Controls & Freight Information | NSN 5330-01-263-9039
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
