NSN 5330-01-273-4391 30015312, 3001531-2, 01-273-4391
Product Details | SEAL RETAINER
5330-01-273-4391 An item of various shapes and cross sections, usually flanged and designed to fit over a rod, shaft, or the like, for the purpose of encasing and posititioning a SEAL, PLAIN ENCASED or a SEAL, PLAIN. The flange is usually drilled for stud or bolt mounting. Item does not include the seal. Excludes RETAINER, PACKING.
Part Alternates: 30015312, 3001531-2, 5330-01-273-4391, 01-273-4391, 5330012734391, 012734391
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 FEB 1988 | 01-273-4391 | 50336 ( RETAINER, SEAL ) |

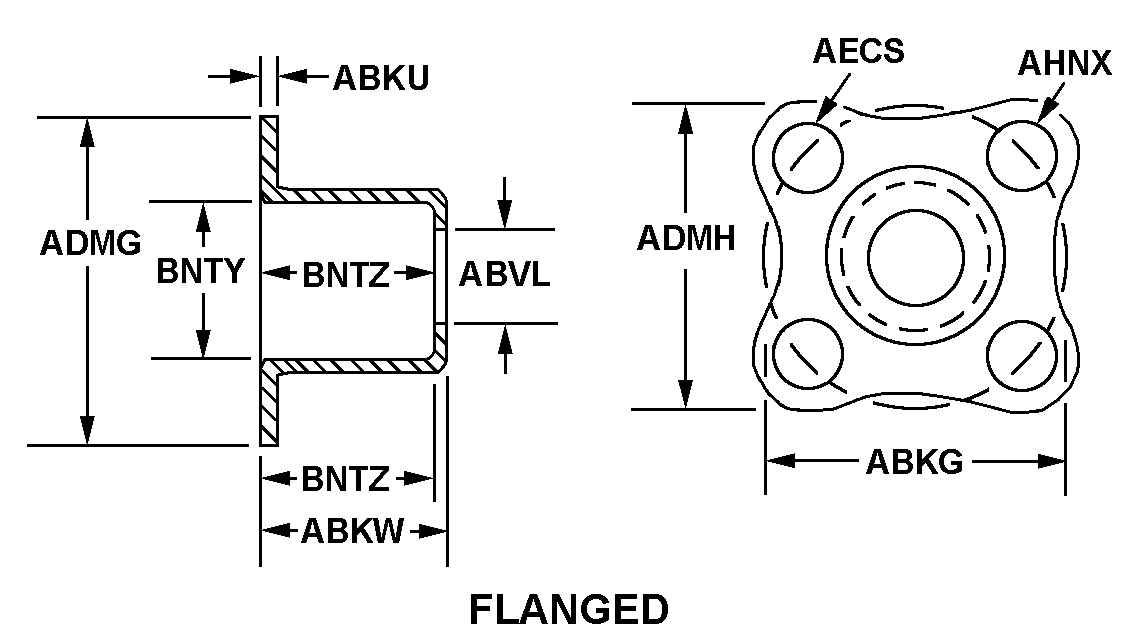

Drawings & Photos | NSN 5330-01-273-4391
Cross Reference | NSN 5330-01-273-4391
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3001531-2 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-273-4391
Technical Data | NSN 5330-01-273-4391
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | ONE-PIECE |
| STYLE DESIGNATOR | C2 FLANGED |
| BOLT CIRCLE DIAMETER | 2.875 INCHES NOMINAL |
| FLANGE THICKNESS | 0.094 INCHES NOMINAL |
| OVERALL HEIGHT | 0.656 INCHES NOMINAL |
| APERTURE DIAMETER | 1.594 INCHES NOMINAL |
| FLANGE MOUNTING LENGTH | 0.781 INCHES NOMINAL |
| MOUNTING FLANGE WIDTH | 3.125 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.250 INCHES NOMINAL |
| SEAL SEAT DIAMETER | 0.500 INCHES NOMINAL |
| SEAL SEAT DEPTH | 2.000 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 3 |
| FEATURES PROVIDED | NONSEPARABLE |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3001531-2 |
Restrictions/Controls & Freight Information | NSN 5330-01-273-4391
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-273-4391
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
