NSN 5330-01-326-6408 12345961, 01-326-6408, 013266408
Product Details | NONMETALLIC STRIP SEAL
5330-01-326-6408 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED.
Part Alternates: 12345961, 5330-01-326-6408, 01-326-6408, 5330013266408, 013266408
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 SEP 1990 | 01-326-6408 | 36874 ( SEAL, NONMETALLIC STRIP ) |
Drawings & Photos | NSN 5330-01-326-6408
Demand History | NSN 5330-01-326-6408
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-326-6408 | 2022-03-90 | 297 | DIBBS |
| 5330-01-326-6408 | 2021-05-126 | 771 | DIBBS |
| 5330-01-326-6408 | 2020-01-30 | 699 | DIBBS |
| 5330-01-326-6408 | 2019-04-108 | 504 | DIBBS |
| 5330-01-326-6408 | 2017-08-215 | 501 | DIBBS |
| 5330-01-326-6408 | 2015-10-302 | 342 | DIBBS |
Cross Reference | NSN 5330-01-326-6408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12345961 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-326-6408
Related Products | NSN 5330-01-326-6408
Technical Data | NSN 5330-01-326-6408
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| CONSTRUCTION | ONE-PIECE |

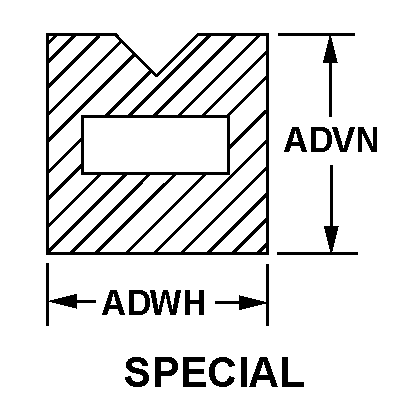

| CROSS-SECTIONAL SHAPE STYLE | G34 SPECIAL |
| CROSS-SECTIONAL HEIGHT | 0.435 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.380 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| STYLE DESIGNATOR | A4J NON-CIRCULAR |
| APERTURE WIDTH | 4.050 INCHES NOMINAL |
| APERTURE LENGTH | 9.990 INCHES NOMINAL |
| SPECIAL FEATURES | ASSY CONTAINS P/N 12345961-3 ADHEIVE TAPE AND P/N 12345961-2 BASE |
| III END ITEM IDENTIFICATION | 2350-01-087-1095 TANK,ARMORED BATTLE M1A1 |
Restrictions/Controls & Freight Information | NSN 5330-01-326-6408
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-326-6408
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | J | Tanks |
| Weapons Systems/End Item or Homogeneous Group | JY | Tank, Abrams, M1A2 unique |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 3 | Critical for Health and Safety of Personnel. Those parts and components that are required for the health and safety of personnel, and which do not fit the definition of Code 5 or 6 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
