NSN 5330-01-340-5099 62634302, 6263430-2, 01-340-5099
Product Details | NONMETALLIC ROUND SECTION SEAL
5330-01-340-5099 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items with a solid cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to specific shape with or without joints. It may be a straight item of a specific length with end cuts or joints. It may have a solid or tubular cross section. Except for molded corners, end cuts, and mounting facilities such as mounting holes, slots, press-fit buttons, or the like, the item must be of one continuous round cross section. It may have fabric, cord or metal reinforcement. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER ROUND SECTION and TUBING, NONMETALLIC. Excludes GASKET and PACKING, PREFORMED.
Part Alternates: 62634302, 6263430-2, 5330-01-340-5099, 01-340-5099, 5330013405099, 013405099
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUN 1991 | 01-340-5099 | 36873 ( SEAL, NONMETALLIC ROUND SECTION ) |

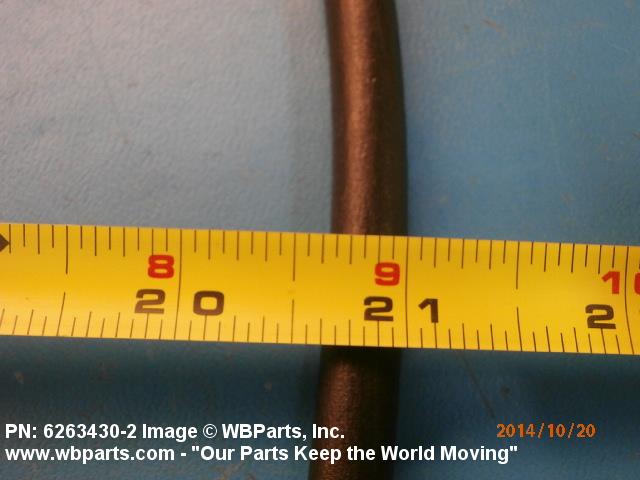

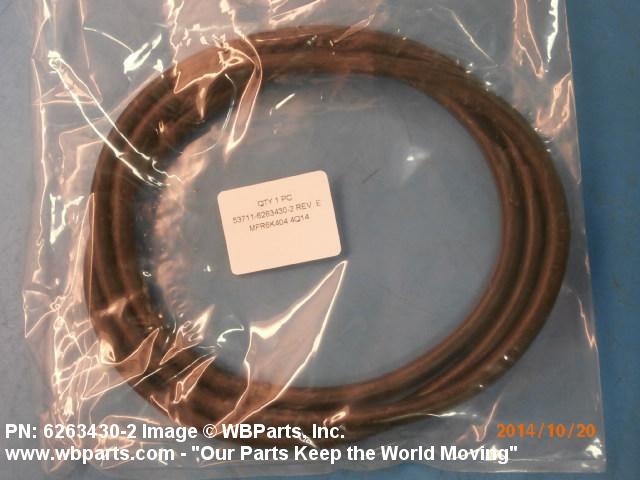

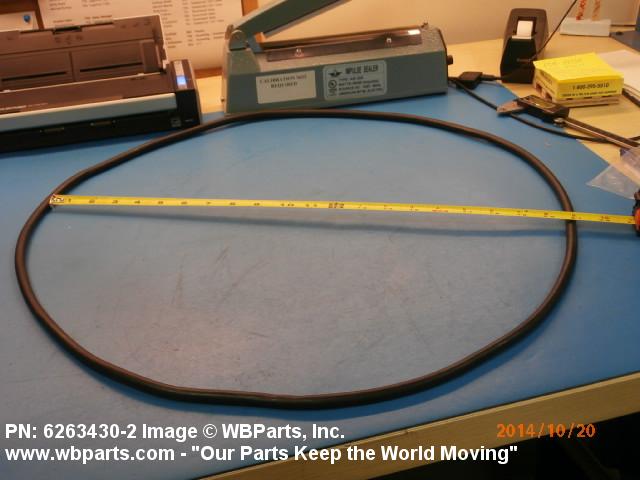

Drawings & Photos | NSN 5330-01-340-5099
Demand History | NSN 5330-01-340-5099
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AD6263430-2PKG | 2024-02-53 | 327 | DIBBS |
| AD6263430-2PKG | 2022-11-321 | 333 | DIBBS |
| AD6263430-2PKG | 2022-07-188 | 715 | DIBBS |
| AD6263430-2PKG | 2020-05-136 | 1092 | DIBBS |
| AD6263430-2PKG | 2020-05-128 | 1092 | DIBBS |
| AD6263430-2PKG | 2020-04-120 | 1092 | DIBBS |
| AD6263430-2PKG | 2019-05-135 | 800 | DIBBS |
| 5330-01-340-5099 | 2018-05-134 | 2200 | DIBBS |
| 5330-01-340-5099 | 2018-05-133 | 2138 | DIBBS |
| 5330-01-340-5099 | 2016-07-187 | 634 | DIBBS |
| 5330-01-340-5099 | 2016-06-178 | 634 | DIBBS |
| 5330-01-340-5099 | 2016-02-52 | 2004 | DIBBS |
| 5330-01-340-5099 | 2015-12-357 | 2576 | DIBBS |
| 5330-01-340-5099 | 2014-09-268 | 2 | United States |
| 5330-01-340-5099 | 2014-07-195 | 2503 | DIBBS |
| 5330-01-340-5099 | 2014-07-183 | 2503 | DIBBS |
| 5330-01-340-5099 | 2014-06-167 | 1184 | DIBBS |
| 5330-01-340-5099 | 2014-06-154 | 1184 | DIBBS |
| 5330-01-340-5099 | 2014-05-141 | 1084 | DIBBS |
| 5330-01-340-5099 | 2013-08-227 | 452 | DIBBS |
| 5330-01-340-5099 | 2013-07-191 | 565 | DIBBS |
| 5330-01-340-5099 | 2012-12-347 | 500 | DIBBS |
| 5330-01-340-5099 | 2011-02-47 | 2500 | DIBBS |
| 62634302 | 2009-12-363 | 35 | United States |
| 5330-01-340-5099 | 2009-10-281 | 785 | DIBBS |
| 5330-01-340-5099 | 2008-02-52 | 5347 | DIBBS |
Cross Reference | NSN 5330-01-340-5099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6263430-2 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-340-5099
Technical Data | NSN 5330-01-340-5099
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-STYRENE CLASS SBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D1056,RE-41E1 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SPLIT |
| CROSS-SECTIONAL SHAPE STYLE | G1 CIRCULAR |
| CROSS SECTION OUTSIDE DIAMETER | 0.344 INCHES MINIMUM AND 0.404 INCHES MAXIMUM |
| STYLE DESIGNATOR | A1 CIRCULAR |
| APERTURE DIAMETER | 20.640 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-01-340-5099
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | M | 24 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-340-5099
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | M | 24 months |
| Purchasing | QTY UOM |
1 EA : Each |
