NSN 5330-01-352-3361 MS3576935, MS35769-35, AMSHHG101
Product Details | GASKET
5330-01-352-3361 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: MS3576935, MS35769-35, AMSHHG101, AMS-HH-G-101, AS35769, 5330-01-352-3361, 01-352-3361, 5330013523361, 013523361
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JAN 1992 | 01-352-3361 | 04522 ( GASKET ) |

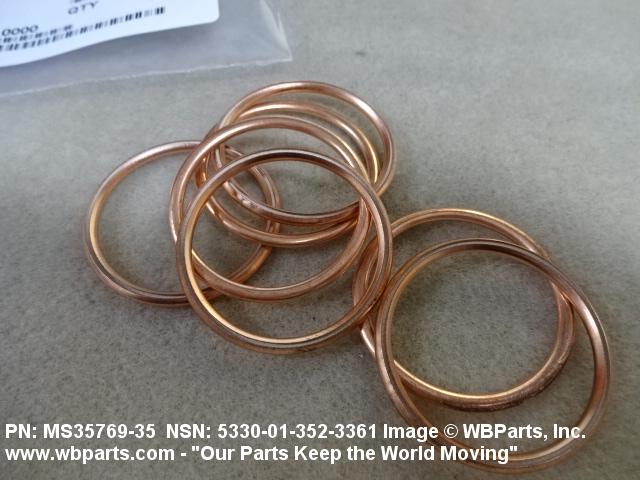

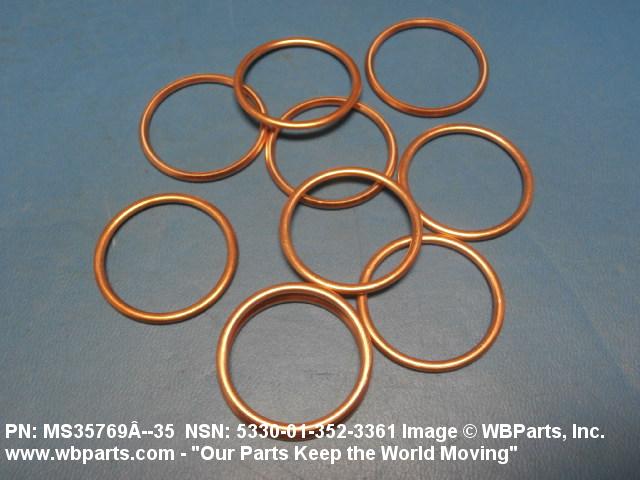

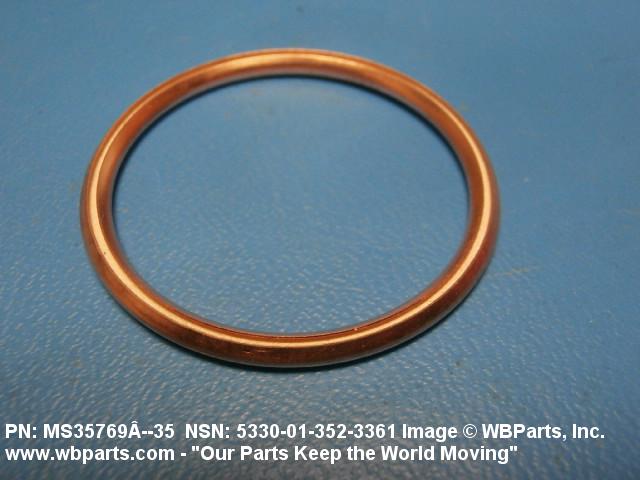

Drawings & Photos | NSN 5330-01-352-3361
Demand History | NSN 5330-01-352-3361
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-352-3361 | 2017-02-36 | 97 | DIBBS |
Cross Reference | NSN 5330-01-352-3361
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5330001995886 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7391018 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AMS-HH-G-101 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS35769 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS35769-35 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS35769-35 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-352-3361
Technical Data | NSN 5330-01-352-3361
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER CASE FIBER NONASBESTOS AND ASPHALT AND RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR CORE |
| MATERIAL DOCUMENT AND CLASSIFICATION | HH-G-101 FED SPEC SINGLE MATERIAL RESPONSE CASE HH-G-101,TYPE 3 FED SPEC SINGLE MATERIAL RESPONSE CORE |
| CROSS-SECTIONAL SHAPE STYLE | F35 METAL WITH SOFT FILLER |

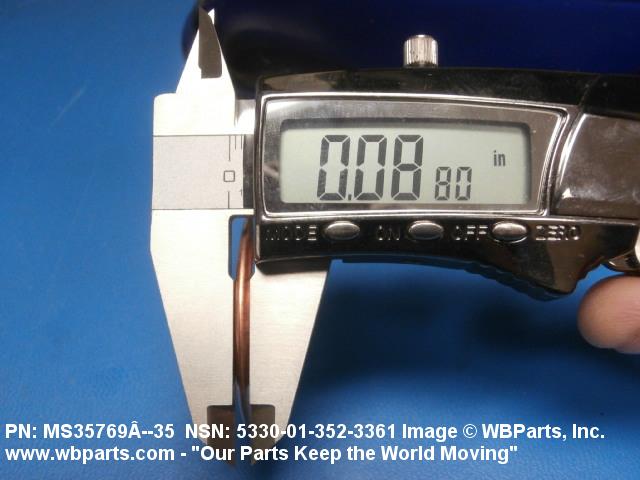

| CROSS-SECTIONAL THICKNESS | 0.094 INCHES NOMINAL |
| STYLE DESIGNATOR | B1 CIRCULAR |

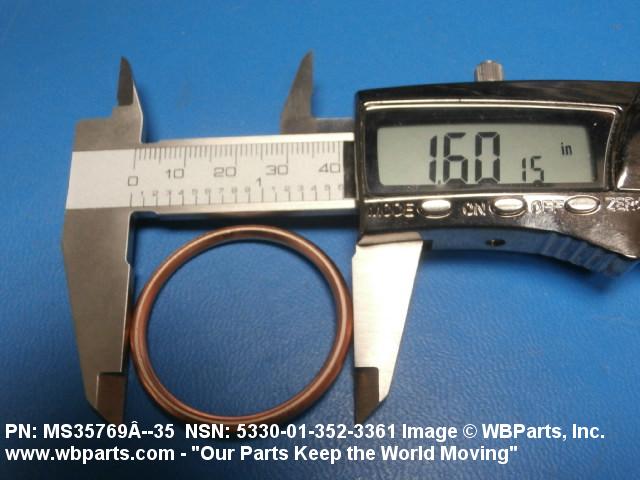

| OUTSIDE DIAMETER | 1.625 INCHES NOMINAL |

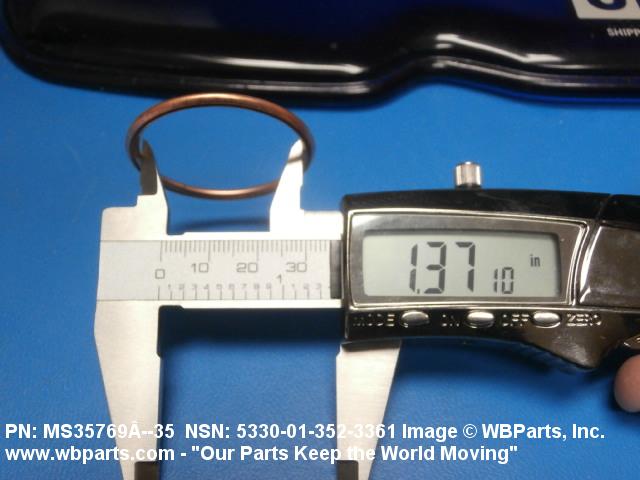

| APERTURE DIAMETER | 1.375 INCHES NOMINAL |
| SPECIAL FEATURES | AS DIFFERENTIATED BY FILLER OF NON-ASBESTOS MATERIAL |
| CRITICALITY CODE JUSTIFICATION | MATT |
Restrictions/Controls & Freight Information | NSN 5330-01-352-3361
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Environmental Attribute Code: | JG | |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-352-3361
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
