NSN 5330-01-355-8810 3016072, 8514, 01-355-8810
Product Details | NONMETALLIC ANGLE SEAL
5330-01-355-8810 An item fabricated from NONMETALLIC ANGLE. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting hole(s), slot(s), press fit buttons and the like, must be of one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; GASKET; and PACKING PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC ANGLE.
Part Alternates: 3016072, 8514, 5330-01-355-8810, 01-355-8810, 5330013558810, 013558810
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 MAR 1992 | 01-355-8810 | 32845 ( SEAL, NONMETALLIC ANGLE ) |
Drawings & Photos | NSN 5330-01-355-8810
Demand History | NSN 5330-01-355-8810
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3016072 | 2024-07-186 | 72 | DIBBS |
| 8514 | 2024-07-186 | 72 | DIBBS |
| 5330-01-355-8810 | 2016-01-13 | 26 | DIBBS |
| 5330-01-355-8810 | 2015-04-120 | 26 | DIBBS |
| 5330-01-355-8810 | 2012-09-249 | 26 | DIBBS |
| 5330-01-355-8810 | 2012-03-61 | 126 | DIBBS |
| 5330-01-355-8810 | 2012-01-31 | 65 | DIBBS |
| 5330-01-355-8810 | 2012-01-26 | 65 | DIBBS |
| 5330-01-355-8810 | 2012-01-12 | 14 | DIBBS |
| 5330-01-355-8810 | 2012-01-02 | 2 | DIBBS |
| 5330-01-355-8810 | 2011-10-293 | 2 | DIBBS |
| 5330-01-355-8810 | 2011-08-238 | 12 | DIBBS |
| 5330-01-355-8810 | 2011-01-23 | 1 | DIBBS |
| 5330-01-355-8810 | 2010-12-350 | 12 | DIBBS |
| 5330-01-355-8810 | 2010-11-316 | 9 | DIBBS |
| 5330-01-355-8810 | 2010-07-185 | 25 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-355-8810
Related Products | NSN 5330-01-355-8810
Technical Data | NSN 5330-01-355-8810
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q AND PLASTIC POLYETHYLENE TEREPHTHALATE OVERALL |
| CONSTRUCTION | ONE-PIECE |
| CROSS-SECTIONAL SHAPE STYLE | J2 L SHAPE |
| RIGHT/BASE FLANGE HEIGHT | 0.390 INCHES NOMINAL |
| LEFT FLANGE HEIGHT | 0.590 INCHES NOMINAL |
| LEFT FLANGE THICKNESS AT TOE | 0.039 INCHES NOMINAL |
| RIGHT/BASE FLANGE THICKNESS AT TOE | 0.039 INCHES NOMINAL |
| INNER RADIUS WHERE FLANGES JOIN | 0.098 INCHES NOMINAL |

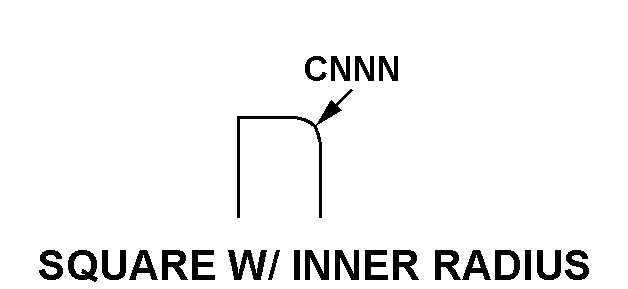

| LEFT TIP STYLE | J15A SQUARE W/INNER RADIUS |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | NOT IDENTICAL |
| RIGHT TIP STYLE | J1B SQUARE END |
| SPECIAL FEATURES | WITH LEFT LIP SEAL AT ANGLE WITH LENGTH OF .200 INCH. |
Restrictions/Controls & Freight Information | NSN 5330-01-355-8810
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-355-8810
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
