Product Details | PACKING WITH RETAINER
5330-01-362-6182 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: 5330-01-362-6182, 01-362-6182, 5330013626182, 013626182
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-362-6182 | 05680 ( PACKING WITH RETAINER ) |
Drawings & Photos | NSN 5330-01-362-6182
Cross Reference | NSN 5330-01-362-6182
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100347-9000-091 | 4V506 | BRITISH AEROSPACE DYNAMICS GROUP BRISTOL DIV |
| 100347-9000-091 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 100347-9000-091 | K0967 | MBDA UK LTD |
| 100347-9000-091 | K1020 | MBDA UK LTD |
| 100347-9000-091 | K1806 | MINISTRY OF DEFENCE NAVY UWS3A |
| 17560-178 | K1488 | BRITISH AEROSPACE PLC NAVAL AND ELECTRONIC SYSTEMS DIVISION |
| 17560-178 | U6441 | UTC AEROSPACE SYSTEMS LIMITED DBA GOODRICH SENSORS AND INTEGRATED |
| 300-511-0075-05 | U1068 | TRELLEBORG SEALING SOLUTIONS (UK)LTD |
| 300-511-075-05 | 49637 | RADCLIFFE JAMES AND SONS CO |
| 6375187-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| AIRAN4A511/P3 | U7689 | PAMARGAN PRODUCTS LTD |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5330-01-362-6182
5330-01-362-6183, 5330-01-362-6184, 5330-01-362-6185, 5330-01-362-6186, 5330-01-362-6232
Technical Data | NSN 5330-01-362-6182
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q PACKING STEEL RETAINER |
| SURFACE TREATMENT | ANODIZE RETAINER |
| CONSTRUCTION | ONE-PIECE |

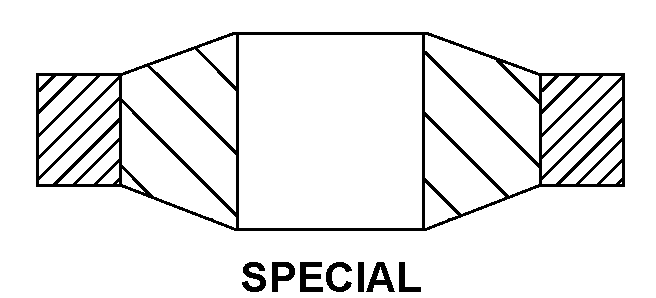

| CROSS-SECTIONAL SHAPE STYLE | R7 SPECIAL |
| OUTSIDE DIAMETER | 18.5 MILLIMETERS MINIMUM AND 18.7 MILLIMETERS MAXIMUM |
| RETAINER INSIDE DIAMETER | 15.75 MILLIMETERS MINIMUM AND 15.95 MILLIMETERS MAXIMUM |
| PACKING INSIDE DIAMETER | 13.85 MILLIMETERS MINIMUM AND 14.05 MILLIMETERS MAXIMUM |
| RETAINER THICKNESS | 1.1 MILLIMETERS MINIMUM AND 1.4 MILLIMETERS MAXIMUM |
| PACKING RING THICKNESS | 1.27 MILLIMETERS MINIMUM AND 1.67 MILLIMETERS MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5330-01-362-6182
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
