NSN 5330-01-382-8073 M166852IID, M16685-2IID, M16685TYPE2SIZED
Product Details | PACKING ASSEMBLY
5330-01-382-8073 Any combination of items manufactured from PACKING MATERIAL to predetermined dimensions, or any combination of nonmetallic molded or formed shapes (other than solid rubber or synthetic rubber rings having a square or rectangular cross section) specifically designed and manufactured for use as a seal. The assembly may include metal lantern rings, metal separators, and/or end or adapter rings.
Part Alternates: M166852IID, M16685-2IID, M16685TYPE2SIZED, MILP16685, MIL-P-16685, MILP1668541E, MIL-P-1668541E, 9000S6202-73286 TY2SIZEJ, 9000S6202-73286 TY2SZD, 9000S620273286TY2SIZEJ, 9000S620273286TY2SZD, 5330-01-382-8073, 01-382-8073, 5330013828073, 013828073
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 NOV 1993 | 01-382-8073 | 07961 ( PACKING ASSEMBLY ) |

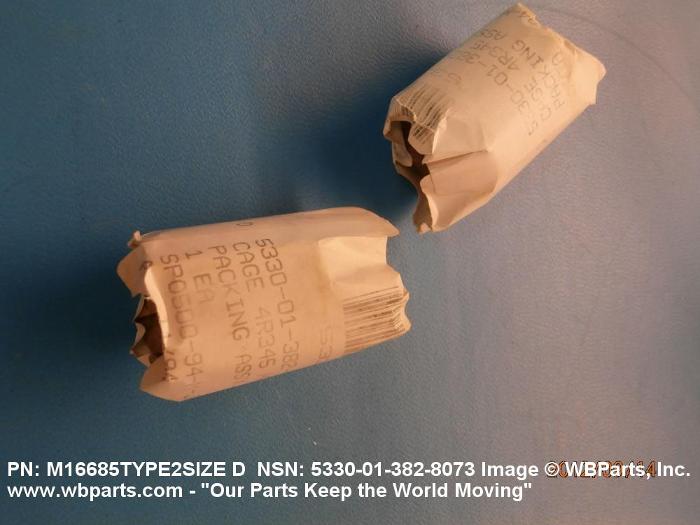

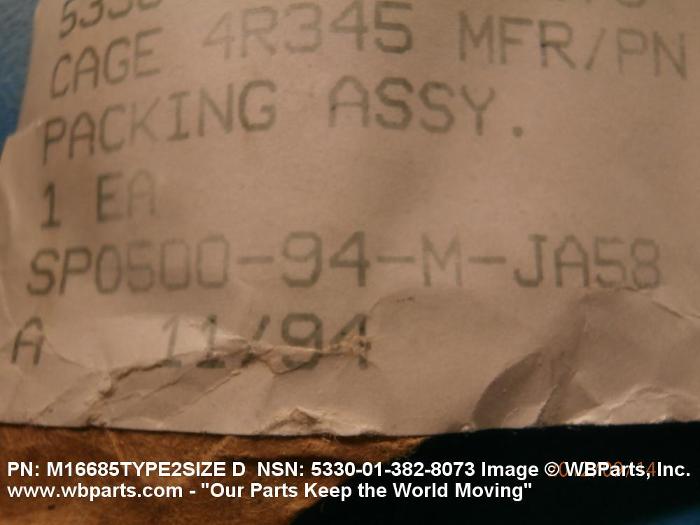

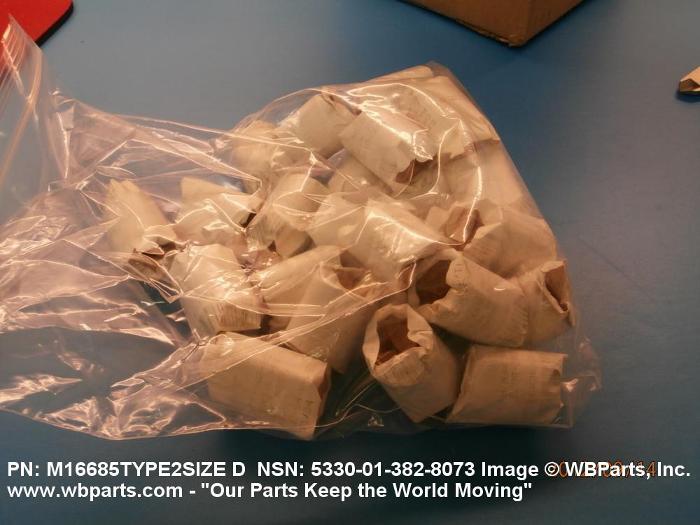

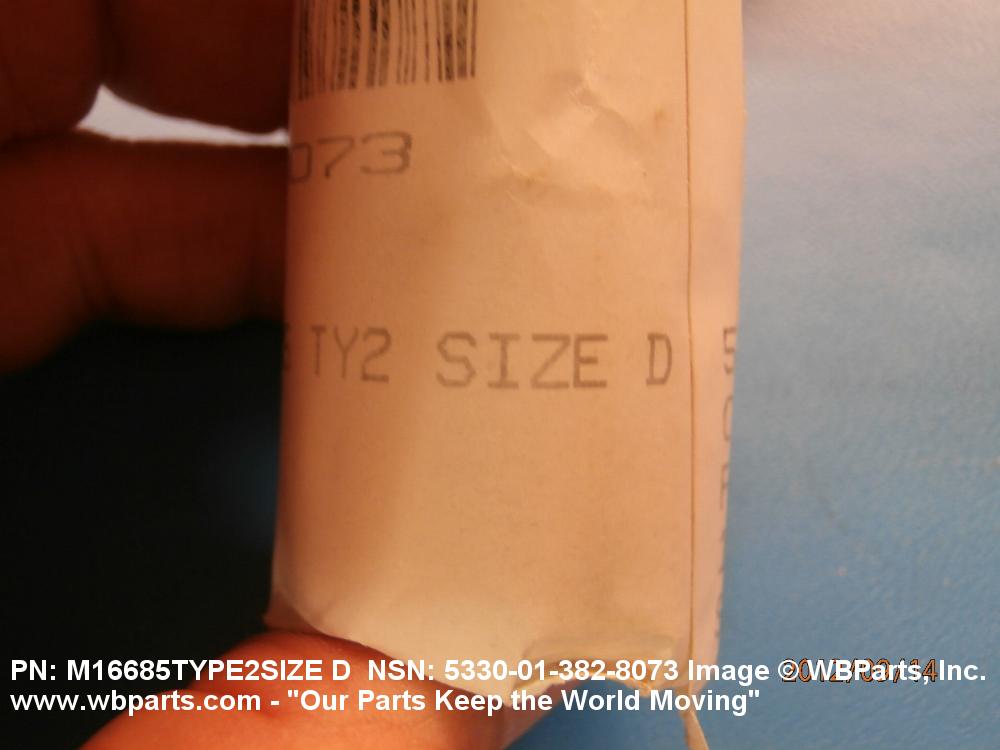

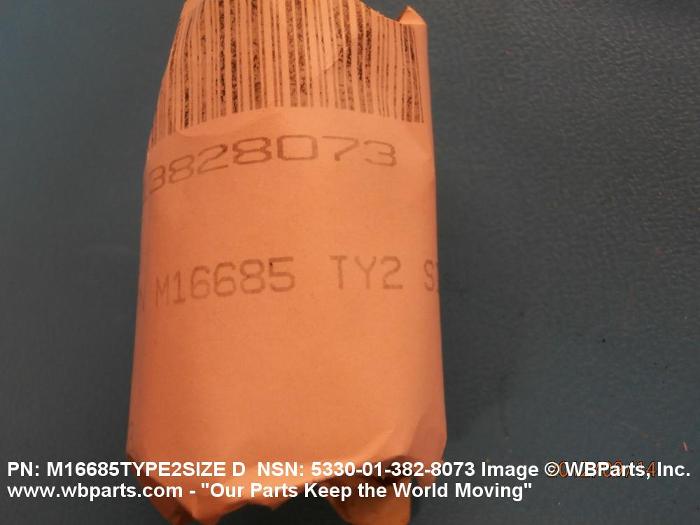

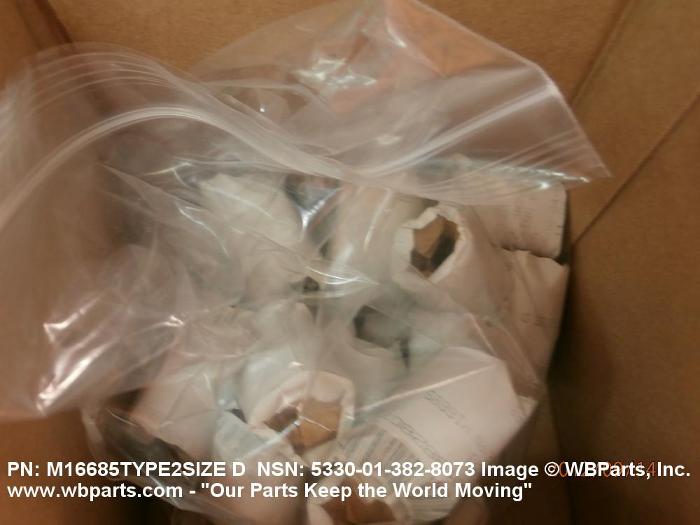

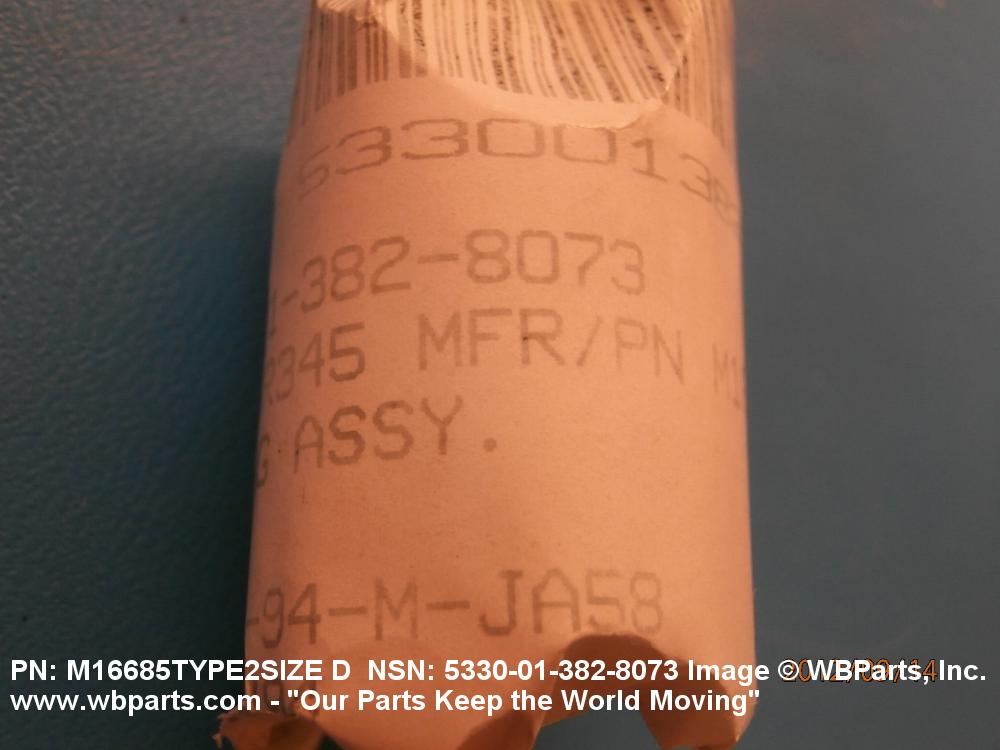

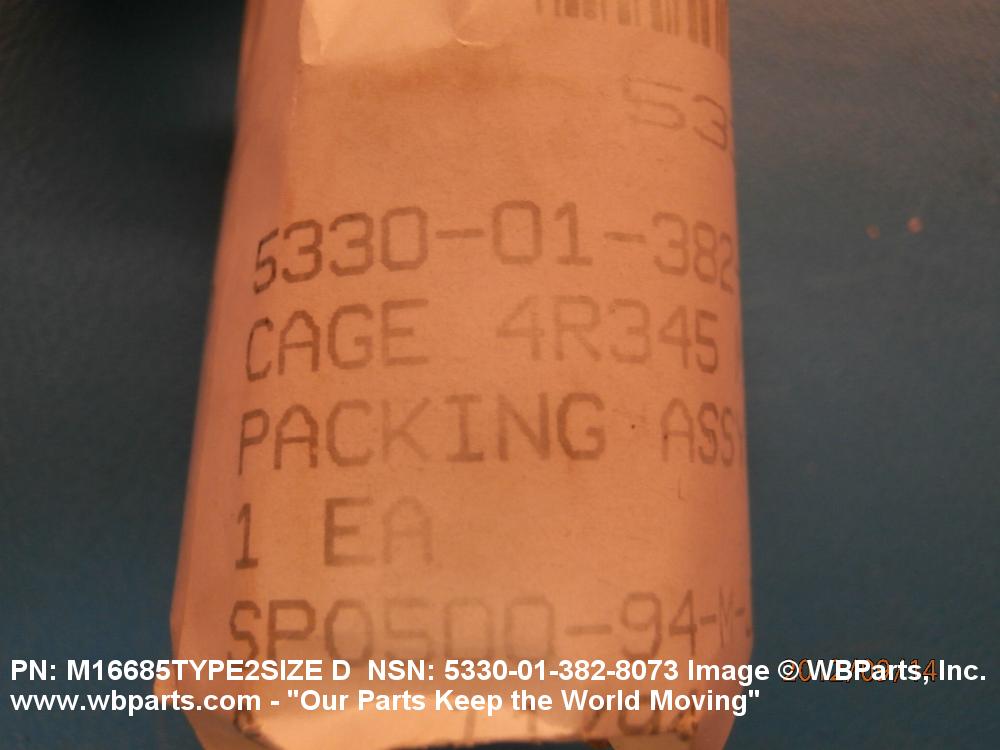

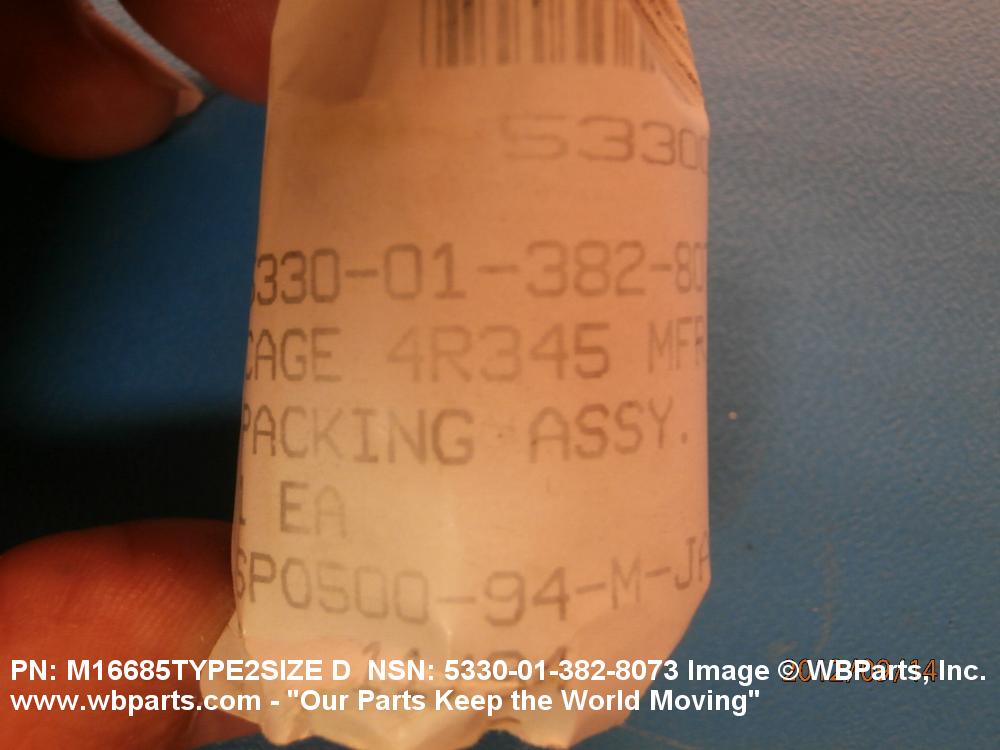

Drawings & Photos | NSN 5330-01-382-8073
Demand History | NSN 5330-01-382-8073
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-382-8073 | 2022-07-212 | 876 | DIBBS |
| 5330-01-382-8073 | 2022-04-104 | 190 | DIBBS |
| 5330-01-382-8073 | 2021-09-267 | 46 | DIBBS |
| 5330-01-382-8073 | 2021-09-252 | 46 | DIBBS |
| 5330-01-382-8073 | 2020-09-267 | 176 | DIBBS |
| 5330-01-382-8073 | 2019-09-252 | 12 | US |
| MILP16685 | 2018-07-197 | 25 | US |
| 5330-01-382-8073 | 2017-04-92 | 350 | DIBBS |
| 5330-01-382-8073 | 2016-12-353 | 377 | DIBBS |
| 5330-01-382-8073 | 2014-03-70 | 275 | DIBBS |
| 5330-01-382-8073 | 2012-09-249 | 8 | United States |
| 5330-01-382-8073 | 2012-07-207 | 194 | DIBBS |
| MILP16685 | 2008-06-155 | 150 | US |
Cross Reference | NSN 5330-01-382-8073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9000S6202-73286 TY2SIZEJ | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 9000S6202-73286 TY2SZD | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M16685-2IID | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M16685TYPE2SIZED | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-P-16685 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-P-1668541E | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-382-8073
Related Products | NSN 5330-01-382-8073
Technical Data | NSN 5330-01-382-8073
| Characteristic | Specifications |
|---|---|
| MATERIAL | GRAPHITE AND PLASTIC POLYTETRAFLUOROETHYLENE BOTTOM RING GRAPHITE AND PLASTIC POLYTETRAFLUOROETHYLENE INTERMEDIATE RING GRAPHITE AND PLASTIC POLYTETRAFLUOROETHYLENE TOP RING |
| CROSS-SECTIONAL SHAPE STYLE | D34 ANGLE BOTTOM RING D2 SQUARE/RECTANGULAR INTERMEDIATE RING D2 SQUARE/RECTANGULAR TOP RING |
| JOINT TYPE | BUTT BOTTOM RING BUTT INTERMEDIATE RING BUTT TOP RING |
| OUTSIDE DIAMETER | 1.125 INCHES NOMINAL |
| INSIDE DIAMETER | 0.719 INCHES NOMINAL |
| HEIGHT | 1.125 INCHES NOMINAL |
| SPECIAL FEATURES | INTERMEDIATE RINGS MAY BE OF ONE CONTINUOUS LENGHT; DIFFERENTIATED BY NON-ASBESTOS MATERIAL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND D SIZE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-P-1668541E |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M16685TYPE2SIZED |
Restrictions/Controls & Freight Information | NSN 5330-01-382-8073
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Environmental Attribute Code: | JG | |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-382-8073
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
