NSN 5330-01-414-9436 MS9135, MS913501, MS9135-01
Product Details | GASKET
5330-01-414-9436 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: MS9135, MS913501, MS9135-01, AS349201, AS3492-01, 660418, 10086588 , 5330-01-414-9436, 01-414-9436, 5330014149436, 014149436
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JUN 1995 | 01-414-9436 | 04522 ( GASKET ) |

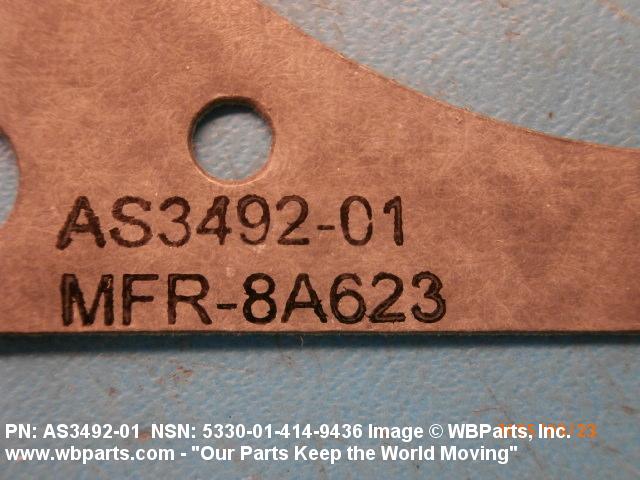

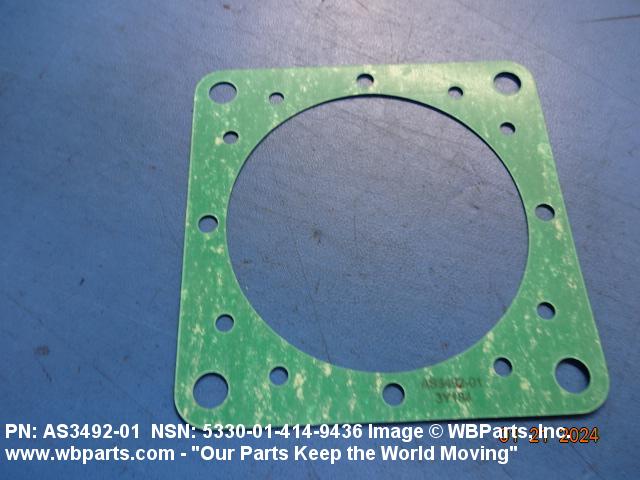

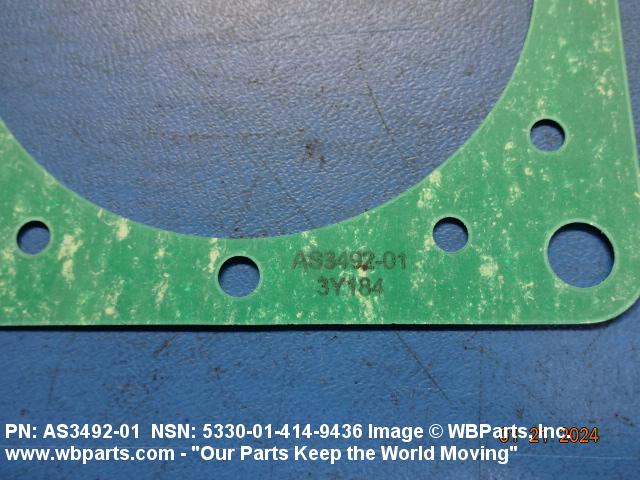

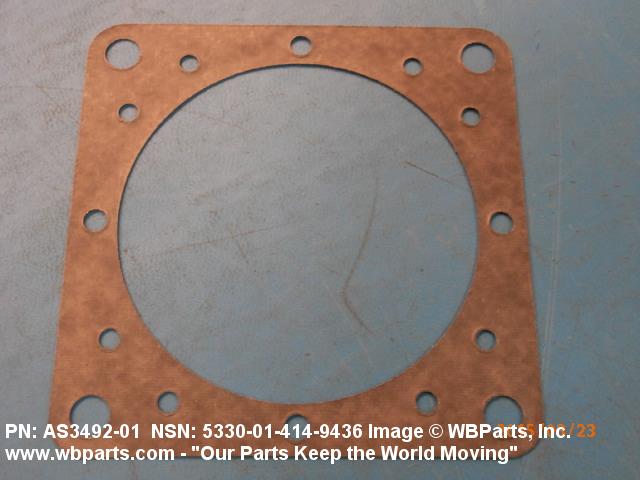

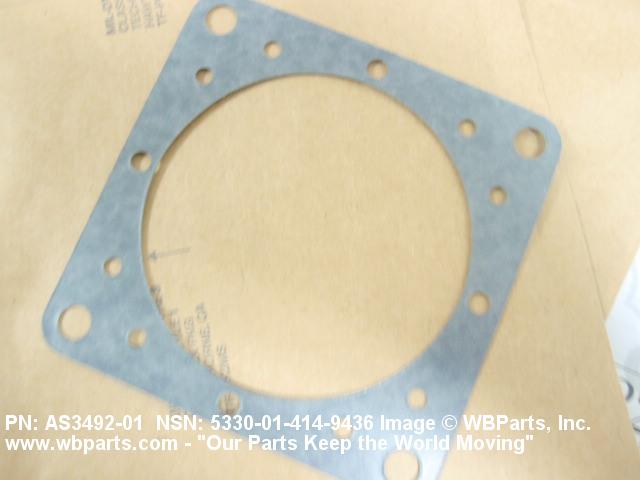

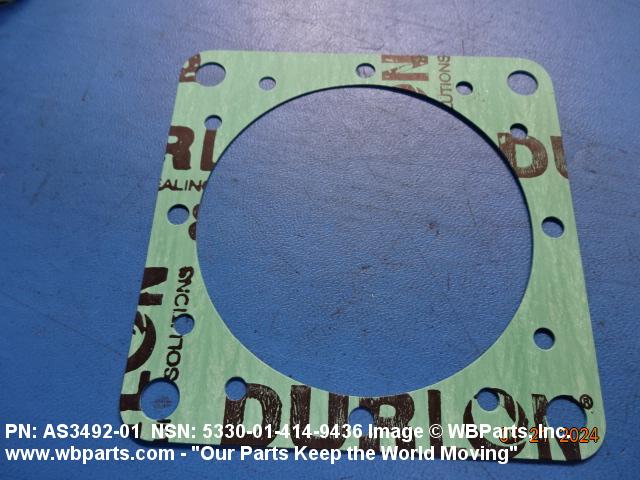

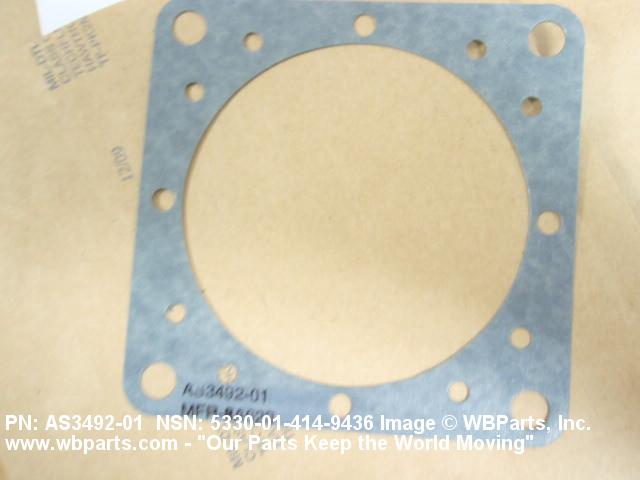

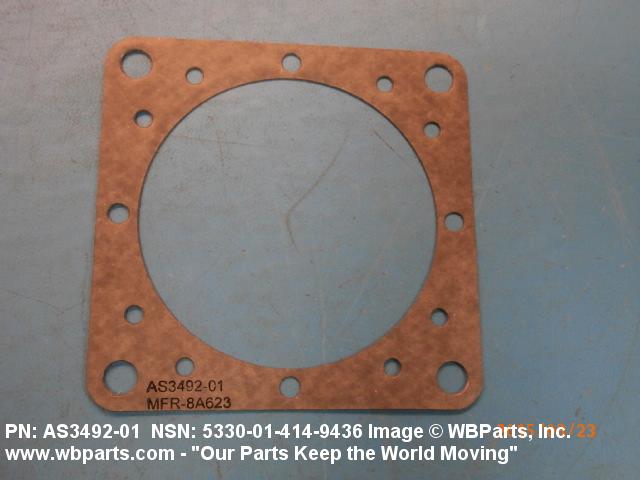

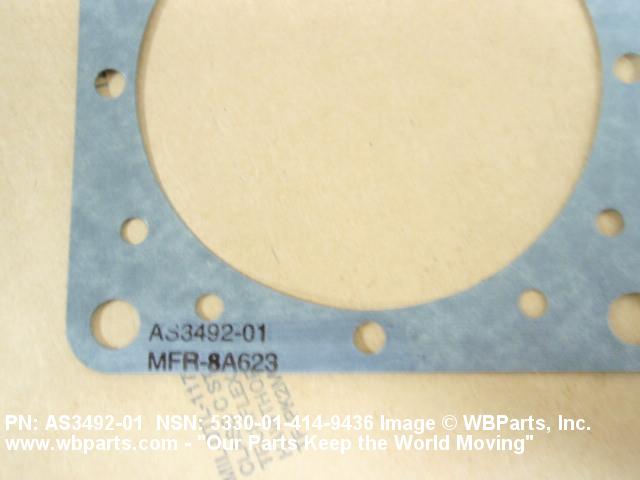

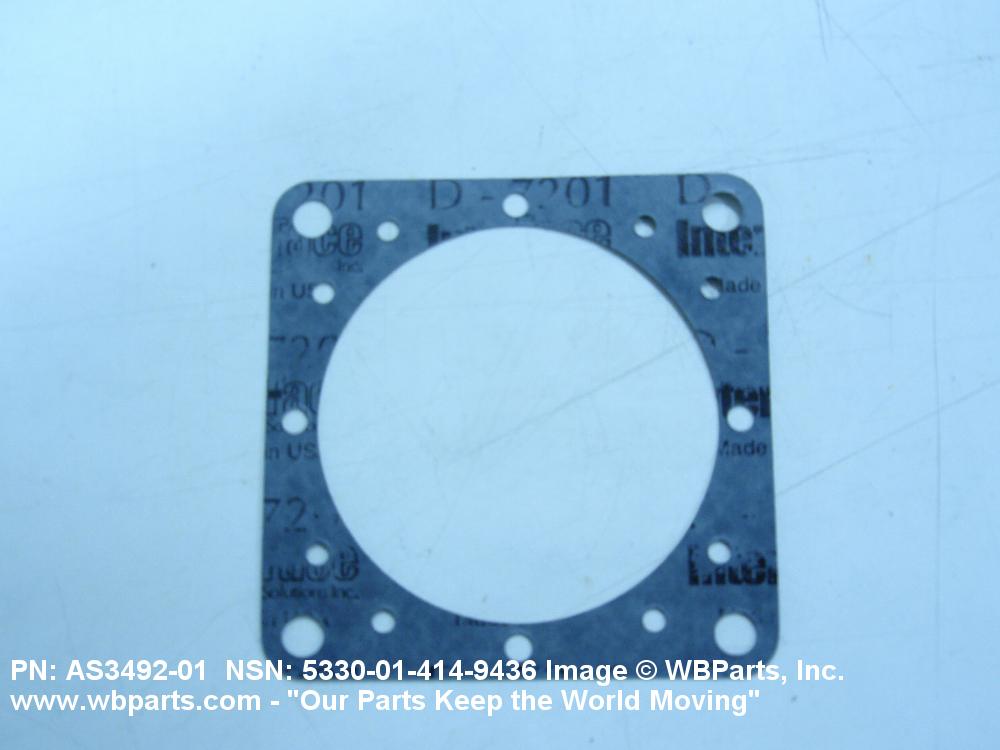

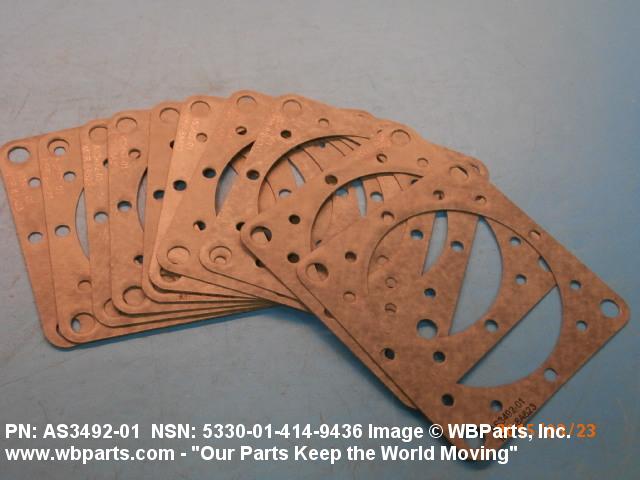

Drawings & Photos | NSN 5330-01-414-9436
Demand History | NSN 5330-01-414-9436
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-414-9436 | 2025-11-324 | 1181 | DIBBS |
| 5330-01-414-9436 | 2025-07-212 | 1844 | DIBBS |
| AS349201 | 2025-04-106 | 1 | France |
| MS913501 | 2025-01-02 | 1 | United States |
| 5330-01-414-9436 | 2024-08-241 | 20 | Taiwan |
| 5330-01-414-9436 | 2023-10-299 | 1230 | DIBBS |
| 5330-01-414-9436 | 2023-10-293 | 10 | Germany |
| 5330-01-414-9436 | 2023-05-142 | 9042 | DIBBS |
| 5330-01-414-9436 | 2023-05-131 | 9042 | DIBBS |
| MS913501 | 2023-04-95 | 4 | EC |
| AS3492-01 | 2023-01-05 | 10 | United States |
| 5330-01-414-9436 | 2022-09-273 | 5 | Taiwan |
| AS349201 | 2022-08-224 | 2 | South Africa |
| 5330-01-414-9436 | 2022-07-201 | 50 | Taiwan |
| MS913501 | 2022-02-46 | 24 | Philippines |
| 5330-01-414-9436 | 2021-12-337 | 200 | Sweden |
| MS913501 | 2021-09-267 | 25 | Philippines |
| 5330-01-414-9436 | 2021-06-173 | 10 | Taiwan |
| AS349201 | 2021-05-125 | 50 | Taiwan |
| MS9135-01 | 2021-05-123 | 12 | US |
| 5330-01-414-9436 | 2020-09-253 | 4 | US |
| 5330-01-414-9436 | 2020-08-227 | 22 | ID |
| AS349201 | 2020-06-157 | 8 | us |
| 5330-01-414-9436 | 2020-05-133 | 1 | US |
| MS913501 | 2020-03-73 | 12 | PH |
| 5330-01-414-9436 | 2018-10-304 | 1 | DIBBS-RFPs |
| AS349201 | 2018-09-255 | 10 | United States |
| 5330-01-414-9436 | 2018-01-25 | 6 | AR |
| AS349201 | 2018-01-09 | 25 | US |
| 5330-01-414-9436 | 2017-09-272 | 3 | US |
| MS913501 | 2017-06-158 | 2 | United States |
| MS913501 | 2017-05-136 | 1 | Canada |
| 5330-01-414-9436 | 2017-04-93 | 4 | Germany |
| 5330-01-414-9436 | 2016-11-335 | 50 | United States |
| MS913501 | 2016-08-238 | 20 | United States |
| AS349201 | 2016-05-131 | 5 | Egypt |
| AS3492-01 | 2015-03-71 | 1 | United States |
| 5330-01-414-9436 | 2015-03-65 | 20 | China |
| 5330-01-414-9436 | 2015-03-65 | 20 | China |
| MS913501 | 2015-02-55 | 2 | South Africa |
| MS9135-01 | 2014-11-330 | 12 | MY |
| MS9135-01 | 2014-11-309 | 1 | Argentina |
| 5330-01-414-9436 | 2014-10-295 | 4 | Germany |
| AS349201 | 2014-06-167 | 5 | US |
| MS913501 | 2014-06-163 | 20 | Malaysia |
| MS913501 | 2014-06-163 | 3 | Malaysia |
| AS3492-01 | 2014-06-162 | 4 | VE |
| 5330-01-414-9436 | 2014-06-154 | 45 | TW |
| MS913501 | 2014-05-143 | 287 | Malaysia |
| 5330-01-414-9436 | 2014-05-141 | 1 | United States |
| 5330-01-414-9436 | 2013-08-239 | 115 | MANUAL |
| AS3492-01 | 2013-08-239 | 115 | US |
| MS9135-01 | 2013-01-07 | 5 | Indonesia |
| MS913501 | 2012-08-234 | 14 | United States |
| MS9135-01 | 2012-08-223 | 4 | United States |
| AS349201 | 2012-08-216 | 11 | United States |
| 5330-01-414-9436 | 2012-07-194 | 6 | United States |
| MS9135-01 | 2011-12-342 | 60 | CO |
| MS9135-01 | 2011-08-223 | 1 | Hong Kong |
| 5330-01-414-9436 | 2011-07-210 | 1 | CO |
| AS349201 | 2011-04-105 | 15 | Singapore |
| 5330-01-414-9436 | 2011-03-61 | 50 | United States |
| 5330-01-414-9436 | 2010-02-34 | 50 | United States |
| 5330-01-414-9436 | 2010-02-32 | 1 | United States |
| 5330-01-414-9436 | 2009-04-106 | 10 | United States |
| 5330-01-414-9436 | 2008-09-274 | 8 | United States |
| MS913501 | 2006-05-151 | 20 | United Arab Emirates |
Cross Reference | NSN 5330-01-414-9436
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-414-9436
Related Products | NSN 5330-01-414-9436
Technical Data | NSN 5330-01-414-9436
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS3275 NATIONAL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |

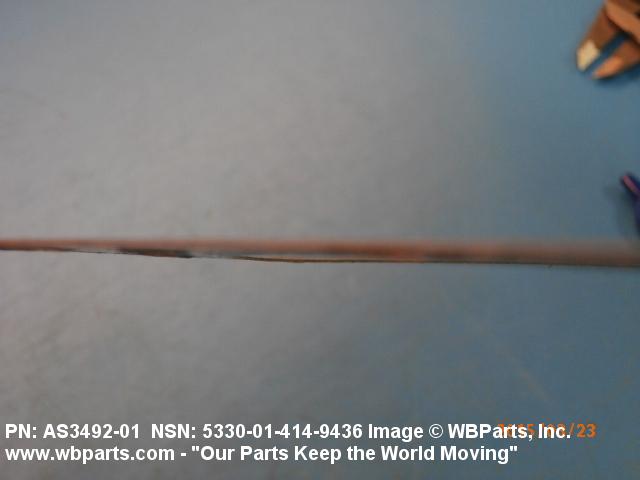

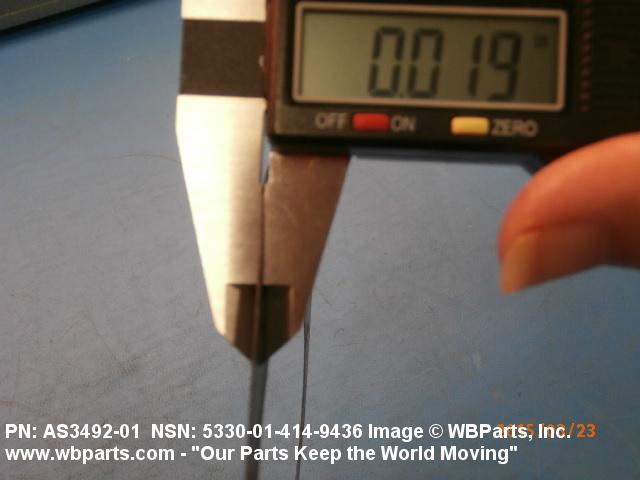

| CROSS-SECTIONAL THICKNESS | 0.014 INCHES MINIMUM AND 0.021 INCHES MAXIMUM |

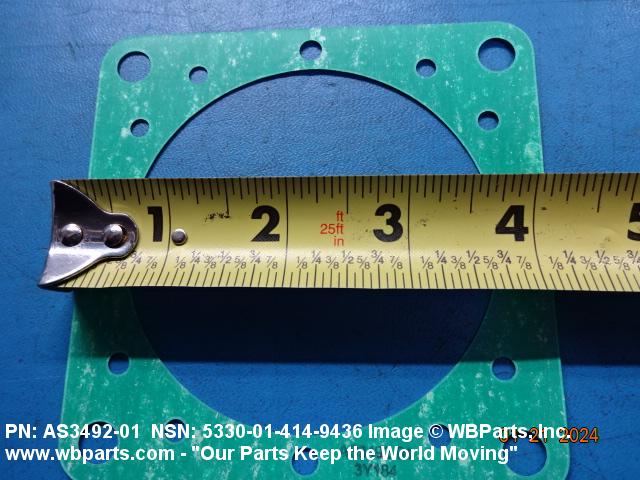

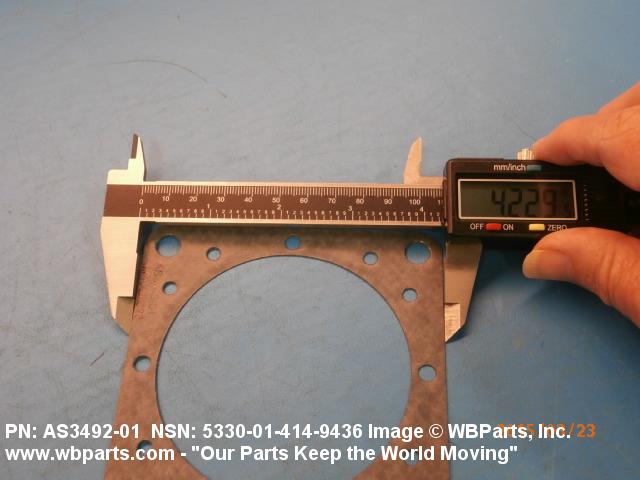

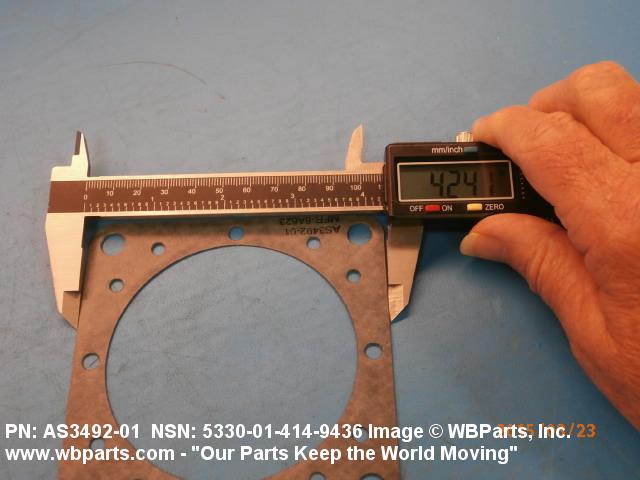

| OVERALL LENGTH | 4.224 INCHES NOMINAL |
| OVERALL WIDTH | 4.224 INCHES NOMINAL |

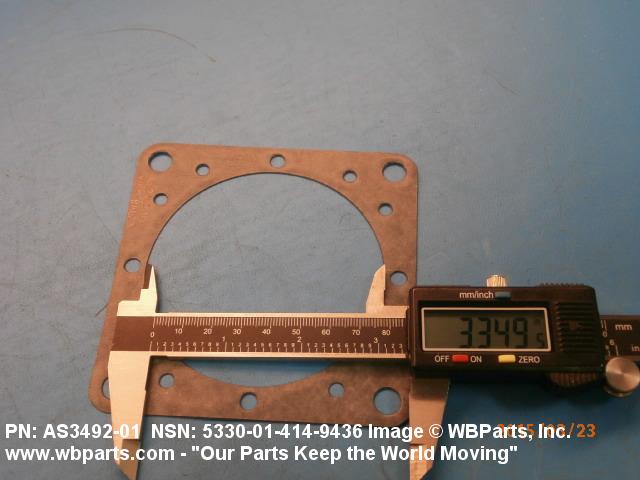

| APERTURE DIAMETER | 3.344 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-01-414-9436
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Environmental Attribute Code: | JG | |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 80 | NASA Marshall Space Flight Center Marshall Space Flight Center, AL 35812-0001 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-414-9436
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
