NSN 5330-01-418-1022 2547033, 2-54703-3, 01-418-1022
Product Details | GASKET
5330-01-418-1022 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 2547033, 2-54703-3, 5330-01-418-1022, 01-418-1022, 5330014181022, 014181022
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 1995 | 01-418-1022 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-01-418-1022
Demand History | NSN 5330-01-418-1022
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-418-1022 | 2013-09-267 | 5 | US |
| 5330-01-418-1022 | 2008-11-310 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-418-1022
Technical Data | NSN 5330-01-418-1022
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-7021, CL II MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

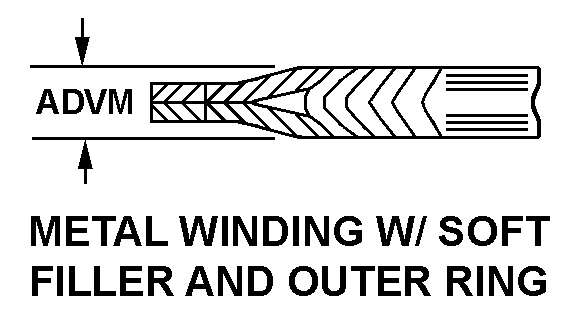

| CROSS-SECTIONAL SHAPE STYLE | F31 METAL WINDING W/SOFT FILLER AND OUTER RING |
| CROSS-SECTIONAL THICKNESS | 0.031 INCHES NOMINAL |
| HOLE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 5.170 INCHES NOMINAL |
| OVERALL WIDTH | 3.960 INCHES MINIMUM AND 4.170 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 19 |
| III END ITEM IDENTIFICATION | F-5 ACFT |
Restrictions/Controls & Freight Information | NSN 5330-01-418-1022
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
