NSN 5330-01-424-9958 206076377001, 206-076-377-001 , 206-076-377-1 NON-ASBESTOS
Product Details | GASKET
5330-01-424-9958 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 206076377001, 206-076-377-001 , 206-076-377-1 NON-ASBESTOS , 2060763771NONASBESTOS, 5330-01-424-9958, 01-424-9958, 5330014249958, 014249958
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 FEB 1996 | 01-424-9958 | 04522 ( GASKET ) |

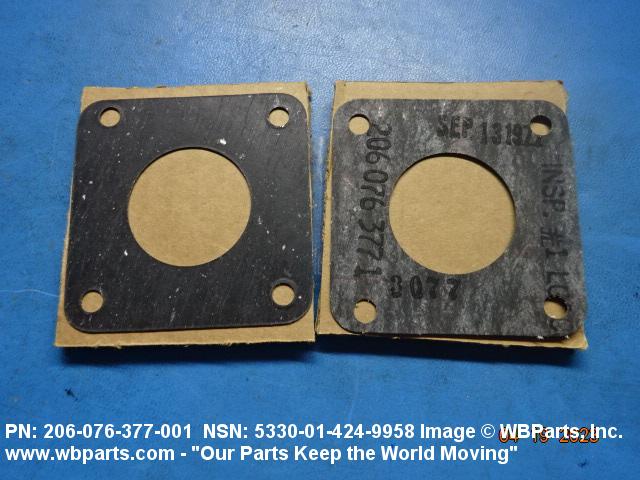

Drawings & Photos | NSN 5330-01-424-9958
Demand History | NSN 5330-01-424-9958
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-424-9958 | 2024-04-117 | 10 | ID |
| 5330-01-424-9958 | 2023-03-90 | 1 | Indonesia |
| 5330-01-424-9958 | 2021-11-312 | 1 | US |
| 5330-01-424-9958 | 2020-07-184 | 4 | CL |
| 206076377001 | 2019-08-224 | 3 | GT |
| 5330-01-424-9958 | 2018-11-316 | 5 | IN |
| 5330-01-424-9958 | 2017-04-99 | 602 | DIBBS |
| 5330-01-424-9958 | 2016-07-194 | 20 | DIBBS |
| 5330-01-424-9958 | 2016-05-122 | 73 | DIBBS |
| 5330-01-424-9958 | 2015-03-88 | 241 | DIBBS |
| 5330-01-424-9958 | 2014-04-98 | 296 | DIBBS |
| 206076377001 | 2013-12-361 | 2 | India |
| 5330-01-424-9958 | 2013-07-212 | 561 | DIBBS |
| 5330-01-424-9958 | 2012-07-200 | 424 | DIBBS |
| 5330-01-424-9958 | 2012-06-174 | 538 | DIBBS |
| 5330-01-424-9958 | 2011-11-307 | 1353 | DIBBS |
| 5330-01-424-9958 | 2011-09-262 | 309 | DIBBS |
| 206076377001 | 2011-07-182 | 2 | US |
| 5330-01-424-9958 | 2009-12-338 | 1208 | DIBBS |
| 206076377001 | 2009-09-258 | 2 | US |
| 5330-01-424-9958 | 2008-05-136 | 1344 | DIBBS |
| 5330-01-424-9958 | 2008-01-15 | 481 | DIBBS |
Cross Reference | NSN 5330-01-424-9958
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-424-9958
Related Products | NSN 5330-01-424-9958
Technical Data | NSN 5330-01-424-9958
| Characteristic | Specifications |
|---|---|

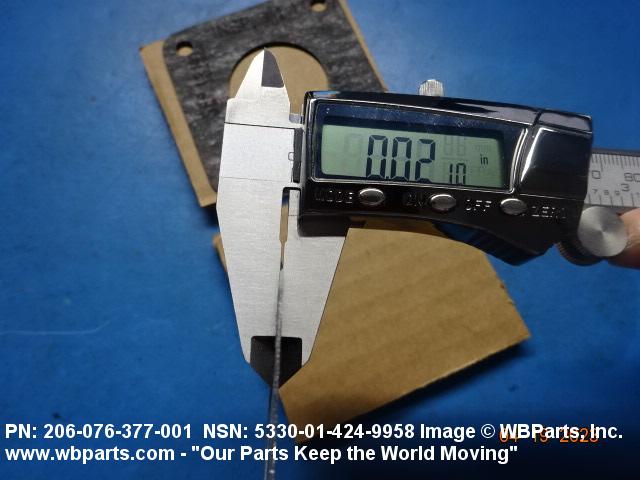

| CROSS-SECTIONAL THICKNESS | 0.016 INCHES NOMINAL |
| STYLE DESIGNATOR | B18B NON-CIRCULAR |

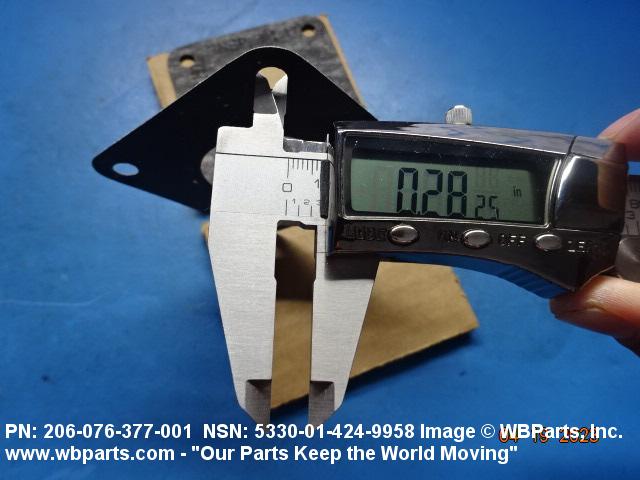

| HOLE DIAMETER | 0.280 INCHES MINIMUM AND 0.287 INCHES MAXIMUM |

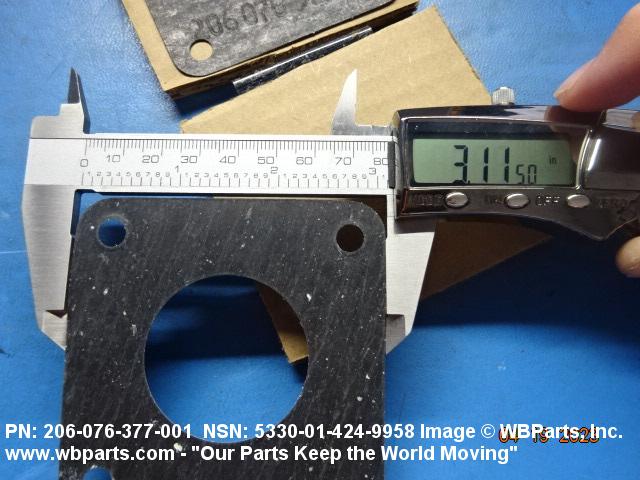

| OVERALL LENGTH | 3.120 INCHES NOMINAL |
| OVERALL WIDTH | 3.046 INCHES NOMINAL |
| APERTURE DIAMETER | 1.620 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.330 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 2.386 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 2.471 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.330 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.321 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| SPECIAL FEATURES | CONTAINS NON-ASBESTOS MATERIAL |
| ENVIRONMENTAL ATTRIBUTE CODE | ASBESTOS ALTERNATIVE PRODUCTS |
Restrictions/Controls & Freight Information | NSN 5330-01-424-9958
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Environmental Attribute Code: | JG | |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-424-9958
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
