NSN 5330-01-438-0580 2635-105-09 ITEM 1-100, 2635-105-09-1-100, 263510509ITEM1100
Product Details | GASKET
5330-01-438-0580 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 2635-105-09 ITEM 1-100, 2635-105-09-1-100, 263510509ITEM1100, 54707501A, 54-70-7501A, 5330-01-438-0580, 01-438-0580, 2635105091100, 5330014380580, 014380580
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 OCT 1996 | 01-438-0580 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-01-438-0580
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-438-0580
Technical Data | NSN 5330-01-438-0580
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-2765 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.031 INCHES NOMINAL |

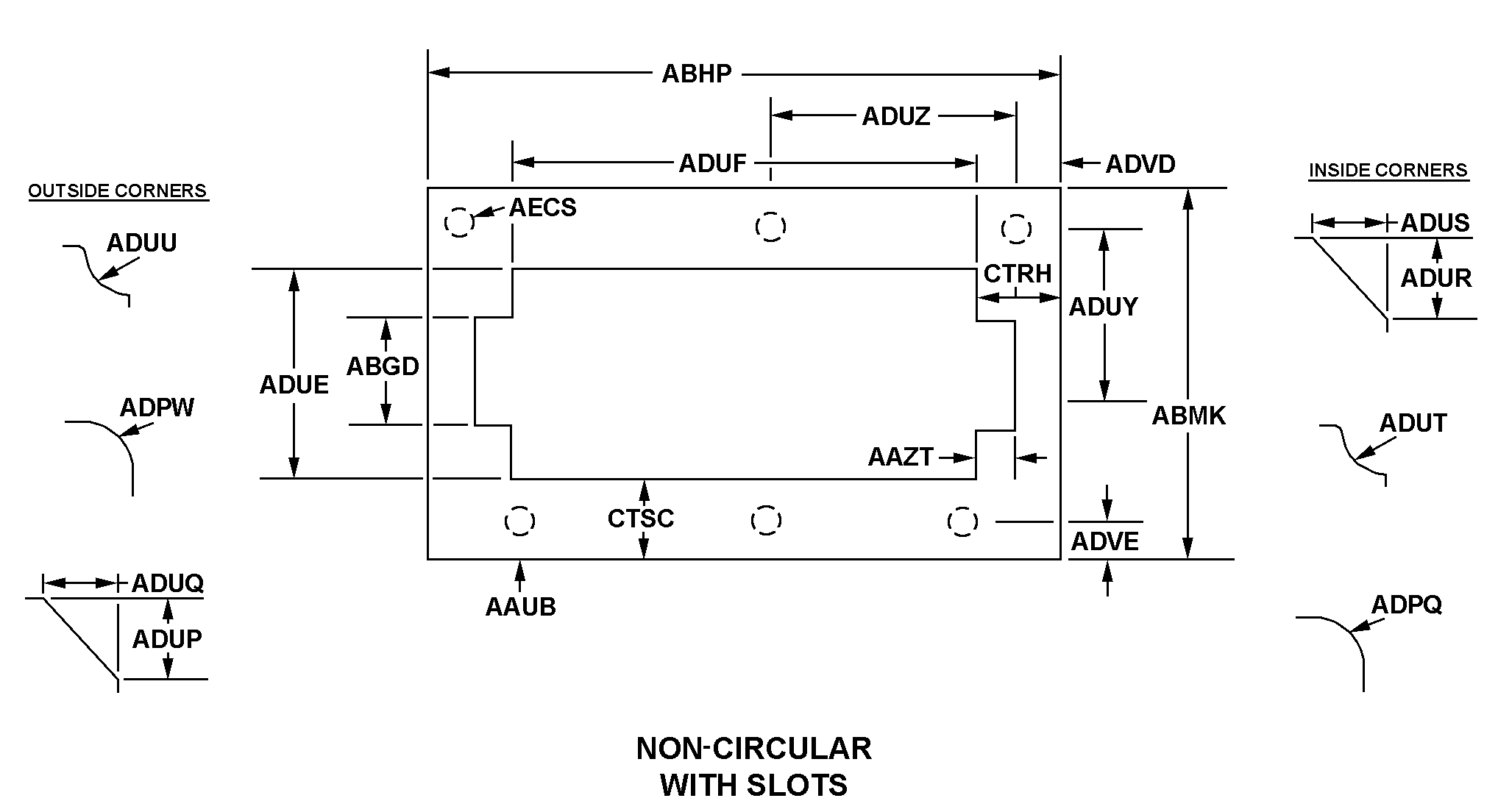

| STYLE DESIGNATOR | B45B NON-CIRCULAR WITH SLOTS |
| HOLE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 5.880 INCHES NOMINAL |
| OVERALL WIDTH | 3.620 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.220 INCHES NOMINAL |
| APERTURE WIDTH | 2.760 INCHES NOMINAL |
| APERTURE LENGTH | 3.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 5.125 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.380 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 1.810 INCHES NOMINAL |
| OUTSIDE EDGE TO INSIDE EDGE SMALLEST DISTANCE ALONG WIDTH | 1.310 INCHES NOMINAL |
| OUTSIDE EDGE TO INSIDE EDGE SMALLEST DISTANCE ALONG LENGTH | 0.430 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 2 |
| SPECIAL FEATURES | RECTANGULAR SHAPED APERTURE IS OFF CENTERED |
