NSN 5330-01-446-6486 23052227, 23073810, 01-446-6486
Product Details | GASKET
5330-01-446-6486 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 23052227, 23073810, 5330-01-446-6486, 01-446-6486, 5330014466486, 014466486
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JUL 1997 | 01-446-6486 | 04522 ( GASKET ) |

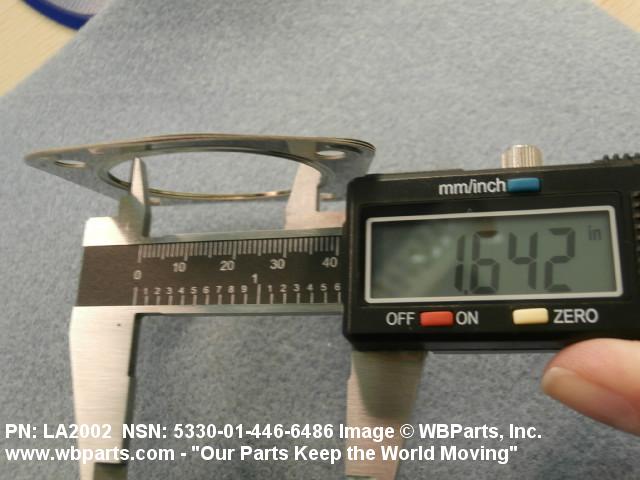

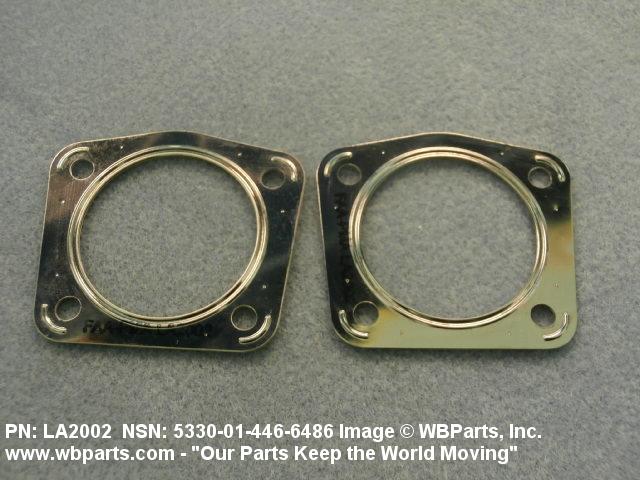

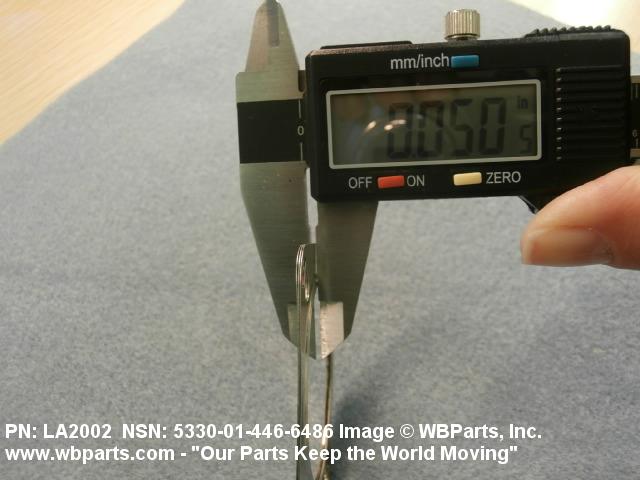

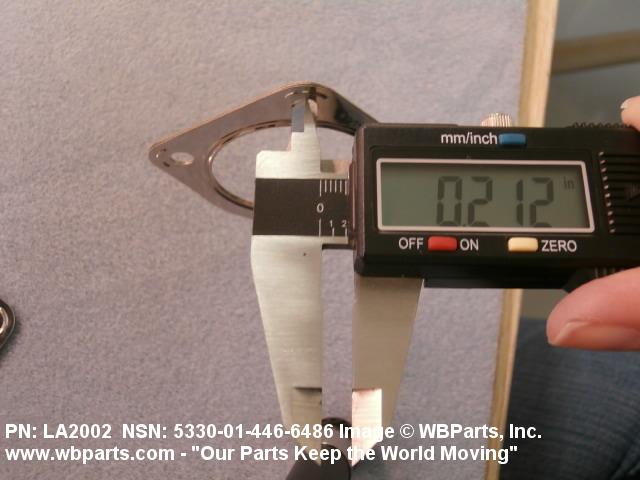

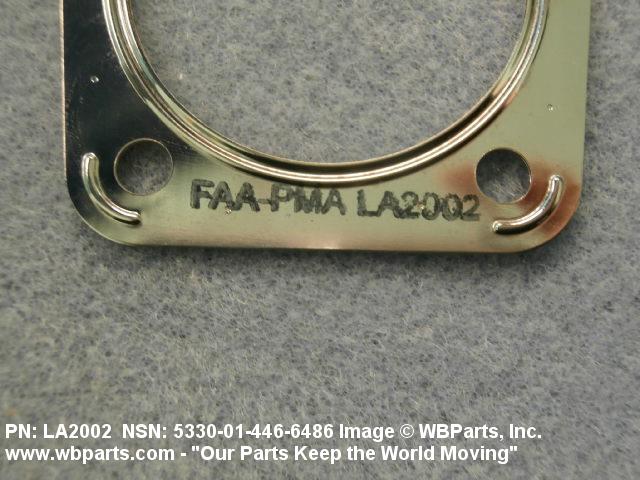

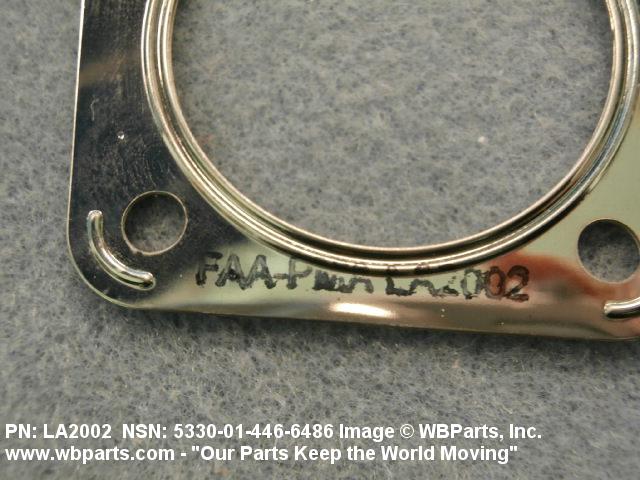

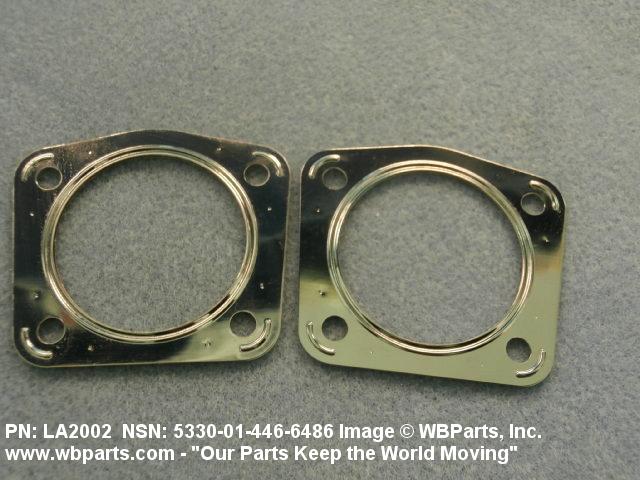

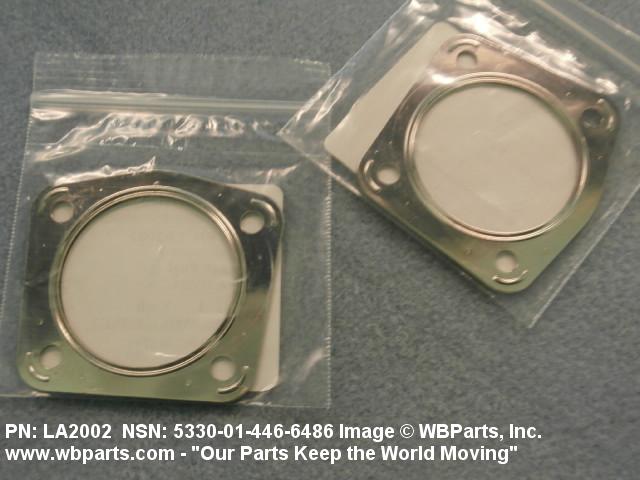

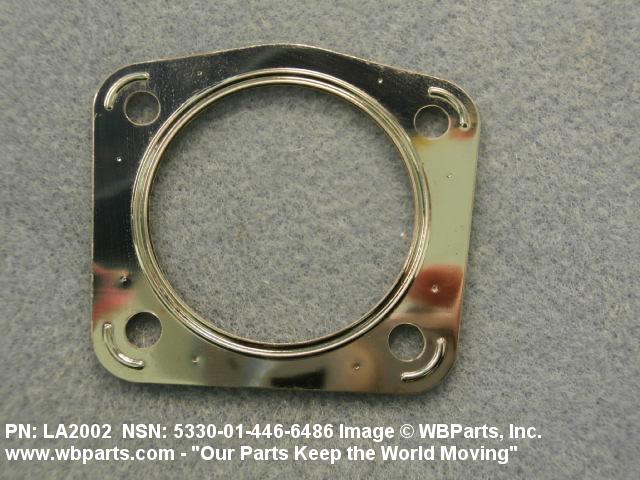

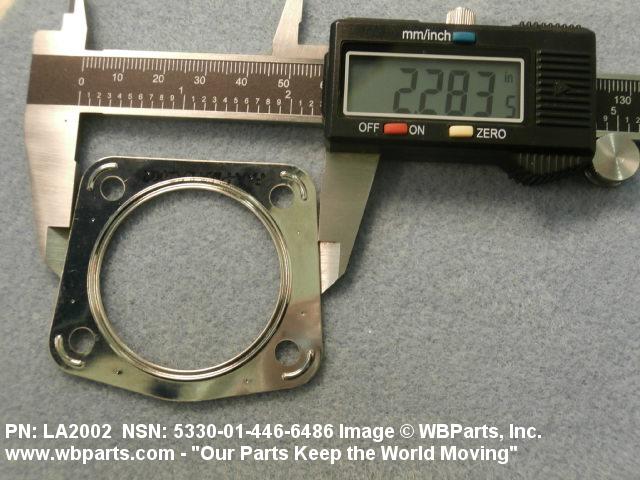

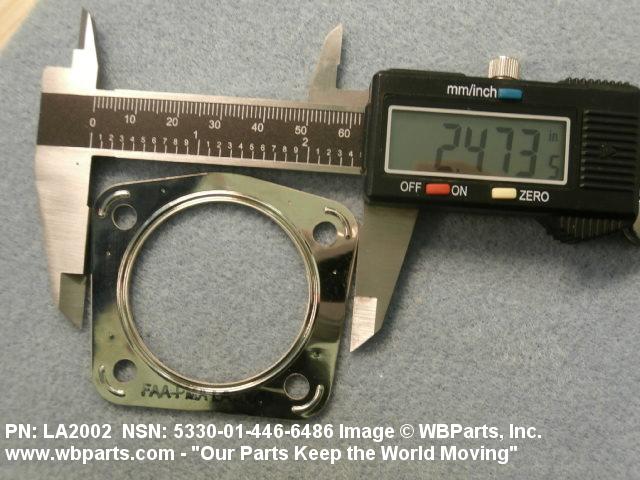

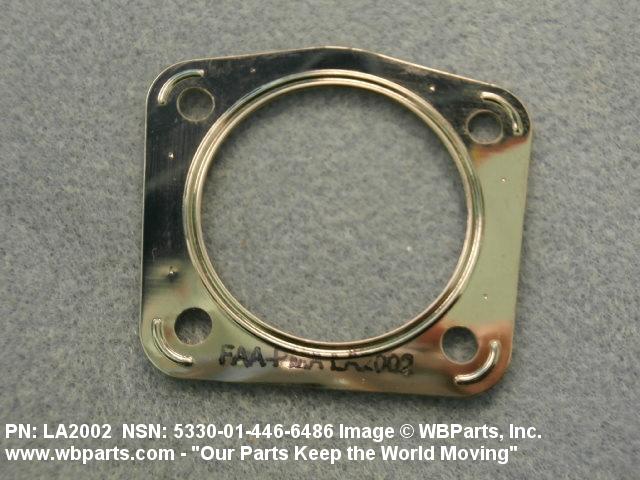

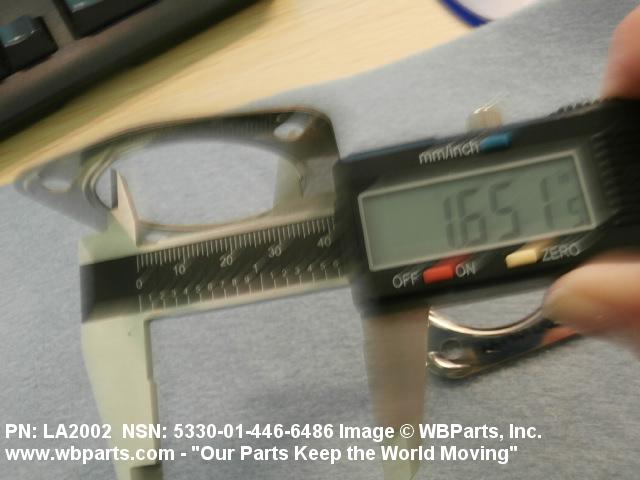

Drawings & Photos | NSN 5330-01-446-6486
Demand History | NSN 5330-01-446-6486
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-446-6486 | 2023-08-236 | 48 | United States |
| 014466486 | 2023-07-192 | 48 | us |
| 014466486 | 2023-06-181 | 48 | us |
| 23073810 | 2022-10-276 | 150 | US |
| 23073810 | 2022-01-27 | 0 | |
| 23073810 | 2021-01-15 | 0 | |
| 23073810 | 2020-09-249 | 0 | |
| 23073810 | 2020-07-199 | 112 | United States |
| 23073810 | 2017-03-68 | 16 | |
| 23073810 | 2016-12-343 | 16 | |
| 23073810 | 2015-07-206 | 1 | |
| 5330-01-446-6486 | 2014-10-297 | 16 | United States |
| 23073810 | 2012-07-200 | 160 | |
| 23073810 | 2012-06-181 | 115 | |
| 23073810 | 2012-06-158 | 115 | |
| 23073810 | 2012-05-144 | 160 | |
| 23073810 | 2012-05-126 | 115 | |
| 23073810 | 2012-04-115 | 440 | |
| 23073810 | 2012-03-89 | 160 | |
| 23073810 | 2010-09-272 | 50 | |
| 5330-01-446-6486 | 2010-09-271 | 50 | BRAZILIAN |
| 23073810 | 2008-04-92 | 32 | Singapore |
| 23073810 | 2008-01-21 | 141 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-446-6486
Technical Data | NSN 5330-01-446-6486
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | C13-J ACFT. |
Restrictions/Controls & Freight Information | NSN 5330-01-446-6486
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-446-6486
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Materiel Management Aggregation Code | RC | SI:AE100D3/C-130J ENGINE |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F16 | Rolls Royce Corporation 2840 Fortune Circle West Indianapolis, IN 42641-5055 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
