NSN 5330-01-463-5621 NAS1523C18Y, NAS1523C-18Y, 01-463-5621
Product Details | PACKING WITH RETAINER
5330-01-463-5621 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: NAS1523C18Y, NAS1523C-18Y, 5330-01-463-5621, 01-463-5621, 5330014635621, 014635621
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAR 1999 | 01-463-5621 | 05680 ( PACKING WITH RETAINER ) |

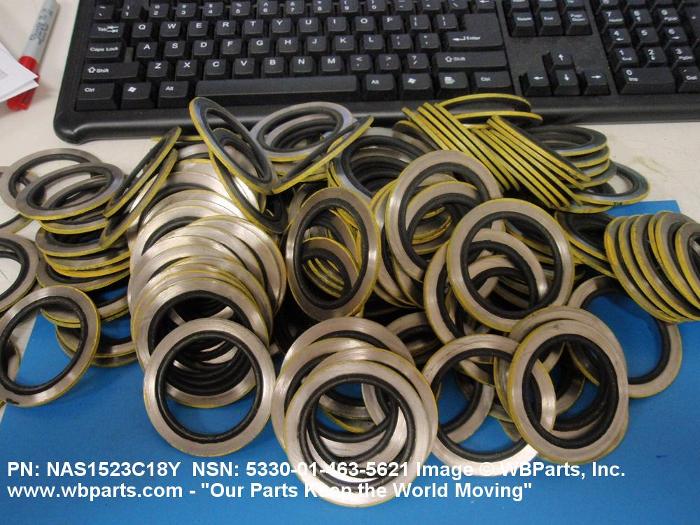

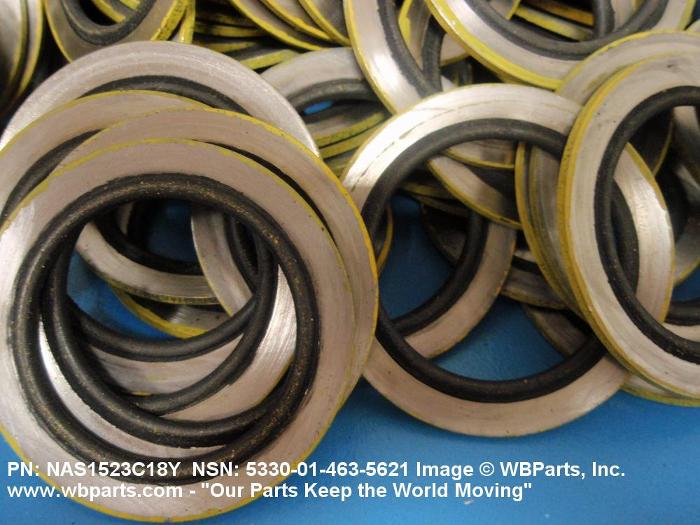

Drawings & Photos | NSN 5330-01-463-5621
Demand History | NSN 5330-01-463-5621
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-463-5621 | 2013-03-73 | 5 | DIBBS |
| 5330-01-463-5621 | 2011-04-100 | 5 | DIBBS |
| NAS1523C18Y | 2011-03-88 | 160 | United States |
| 5330-01-463-5621 | 2009-03-75 | 10 | DIBBS |
| 5330-01-463-5621 | 2009-03-68 | 6 | DIBBS |
| 5330-01-463-5621 | 2009-02-54 | 3 | DIBBS |
Cross Reference | NSN 5330-01-463-5621
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1523C-18Y | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-463-5621
Technical Data | NSN 5330-01-463-5621
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR PACKING STEEL COMP 301 OR STEEL COMP 302 RETAINER |
| SURFACE TREATMENT | PASSIVATE RETAINER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE RETAINER |
| CONSTRUCTION | TWO-PIECE |
| OUTSIDE DIAMETER | 1.870 INCHES MINIMUM AND 1.895 INCHES MAXIMUM |
| RETAINER INSIDE DIAMETER | 1.351 INCHES MAXIMUM |
| PACKING INSIDE DIAMETER | 1.090 INCHES MINIMUM AND 1.110 INCHES MAXIMUM |
| RETAINER THICKNESS | 0.085 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1523 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5330-01-463-5621
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-463-5621
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
