NSN 5330-01-481-9786 NSN SPECIFIC V-22 AE1107C ENGINE, NSNSPECIFICV22AE1107CENGINE, 23073810
Product Details | GASKET
5330-01-481-9786 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: NSN SPECIFIC V-22 AE1107C ENGINE, NSNSPECIFICV22AE1107CENGINE, 23073810, 5330-01-481-9786, 01-481-9786, 5330014819786, 014819786
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 FEB 2001 | 01-481-9786 | 04522 ( GASKET ) |

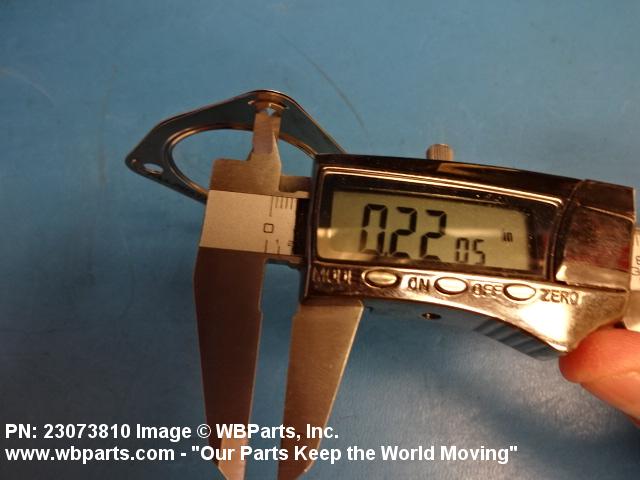

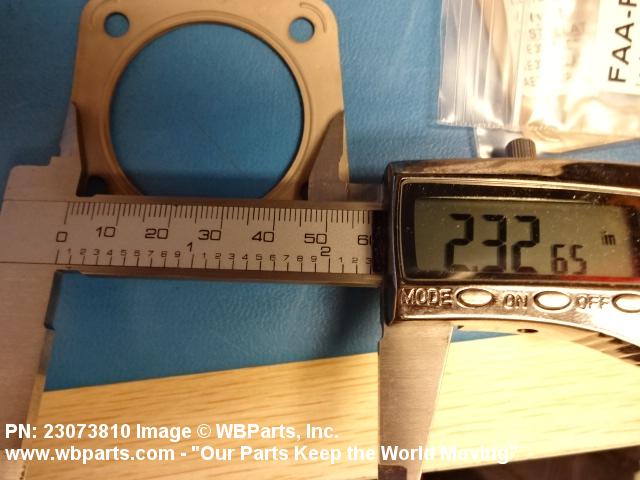

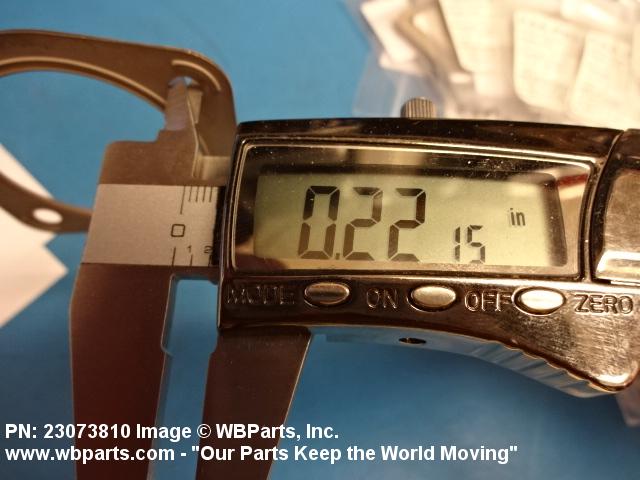

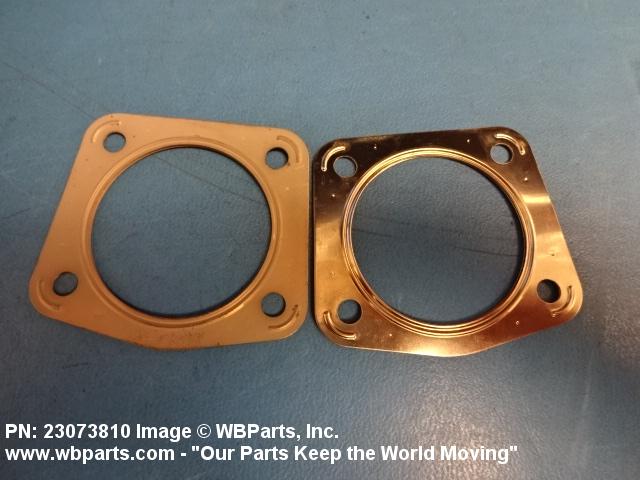

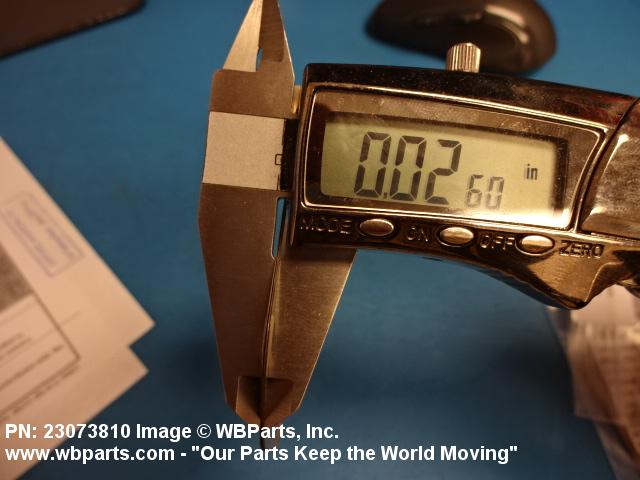

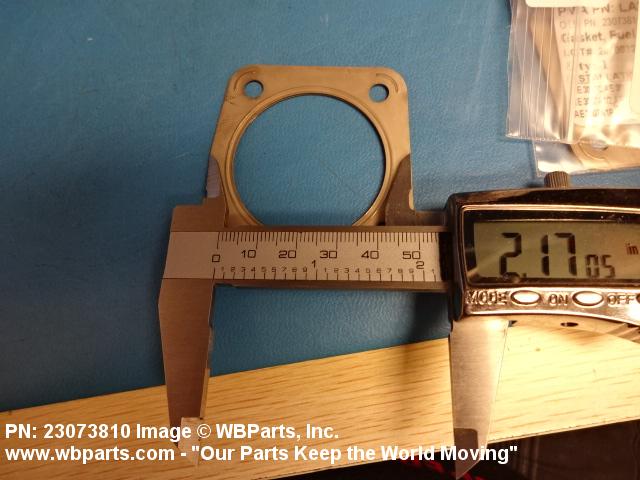

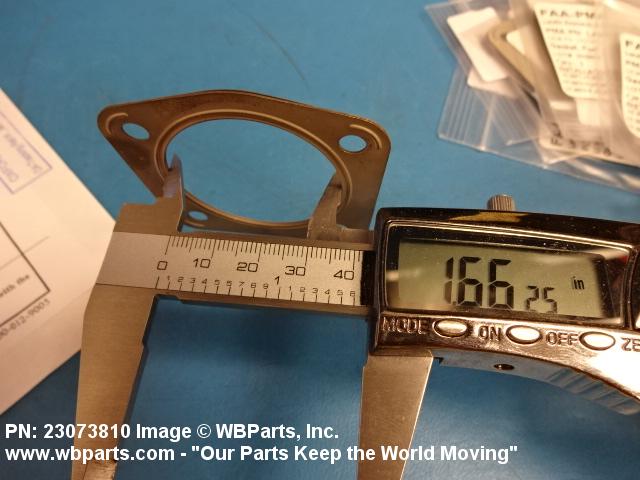

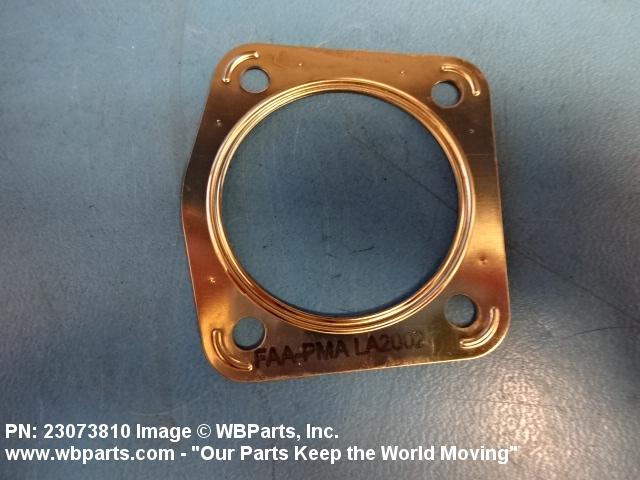

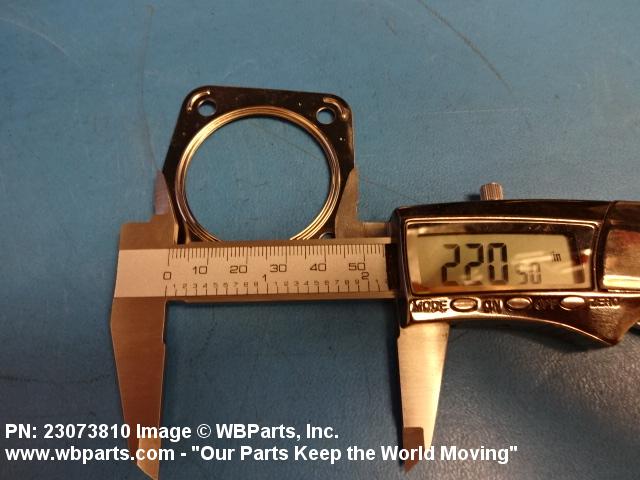

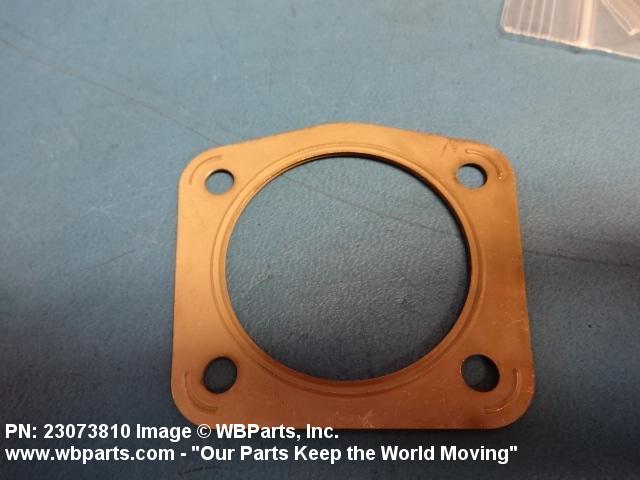

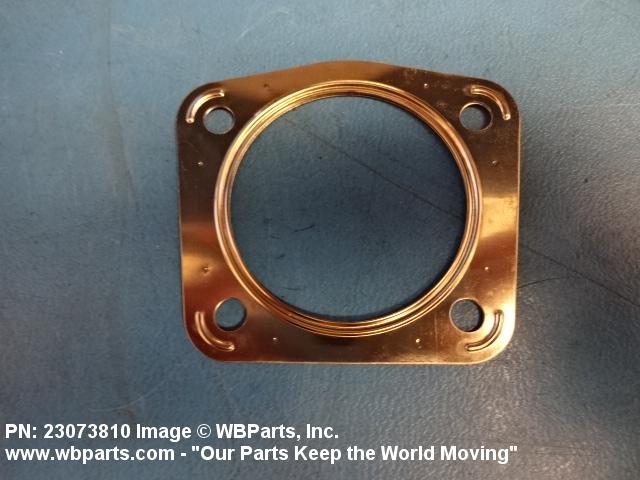

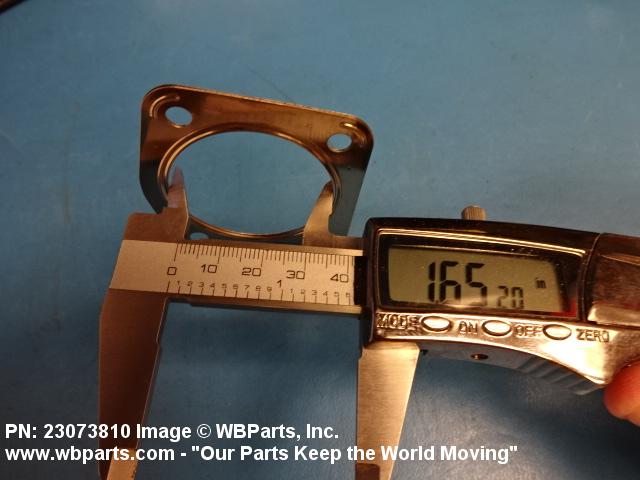

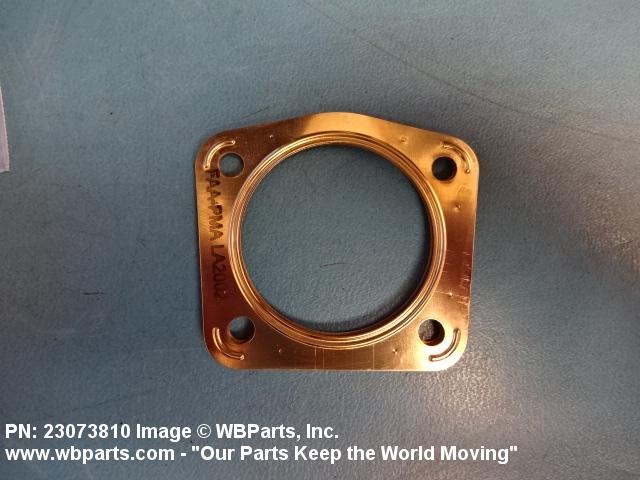

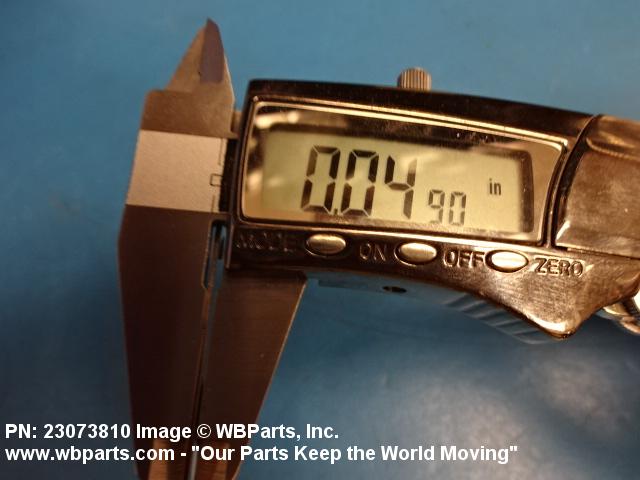

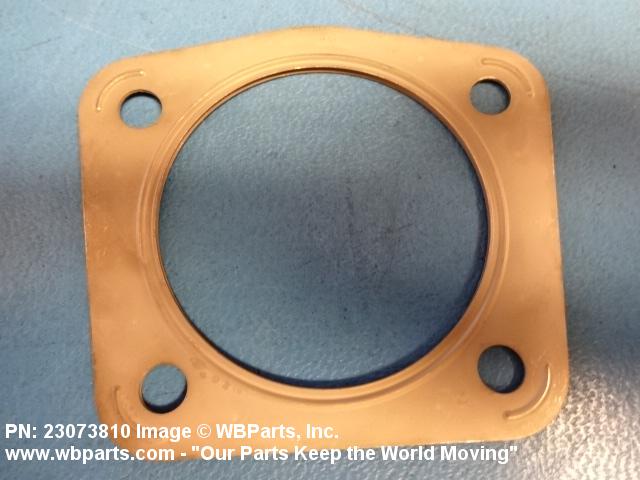

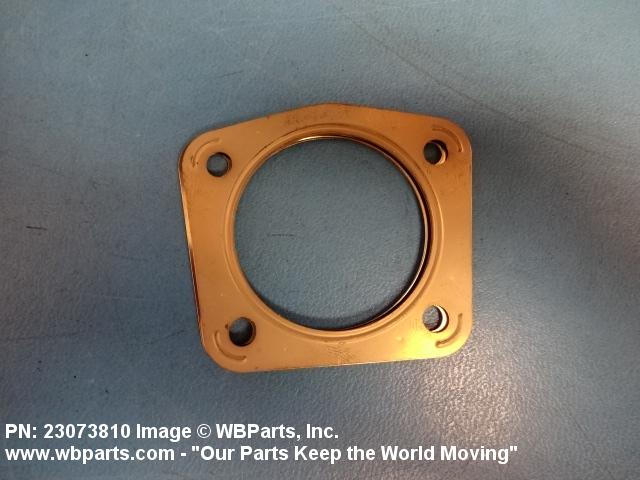

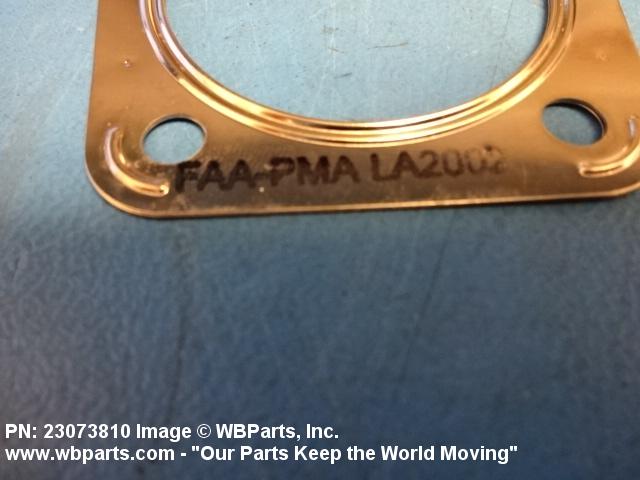

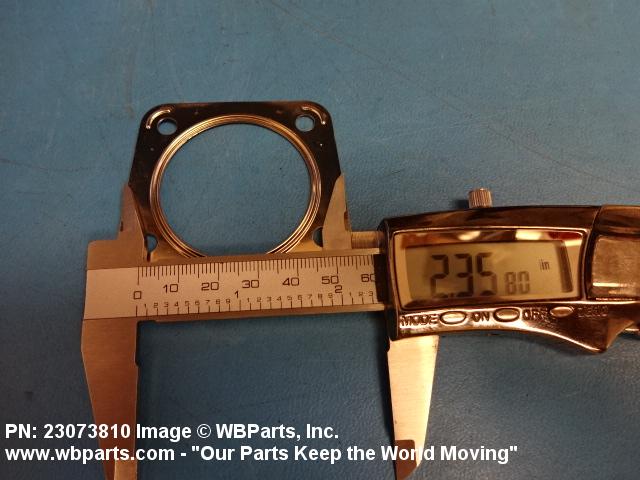

Drawings & Photos | NSN 5330-01-481-9786
Demand History | NSN 5330-01-481-9786
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23073810 | 2022-10-276 | 150 | US |
| 23073810 | 2022-01-27 | 0 | |
| 5330-01-481-9786 | 2022-01-26 | 0 | NECO |
| 23073810 | 2021-01-15 | 0 | |
| 5330-01-481-9786 | 2021-01-14 | 0 | NECO |
| 23073810 | 2020-09-249 | 0 | |
| 5330-01-481-9786 | 2020-09-248 | 0 | NECO |
| 23073810 | 2020-07-199 | 112 | United States |
| 5330-01-481-9786 | 2019-09-266 | 100 | United States |
| 23073810 | 2017-03-68 | 16 | |
| 5330-01-481-9786 | 2017-03-66 | 16 | NECO |
| 23073810 | 2016-12-343 | 16 | |
| 5330-01-481-9786 | 2016-12-342 | 16 | NECO |
| NSN SPECIFIC V-22 AE1107C ENGINE | 2016-03-81 | 4 | United States |
| 23073810 | 2015-07-206 | 1 | |
| 5330-01-481-9786 | 2015-07-205 | 1 | NECO |
| 23073810 | 2012-07-200 | 160 | |
| 23073810 | 2012-06-181 | 115 | |
| 5330-01-481-9786 | 2012-06-180 | 115 | NECO |
| 23073810 | 2012-06-158 | 115 | |
| 5330-01-481-9786 | 2012-06-156 | 115 | NECO |
| 23073810 | 2012-05-144 | 160 | |
| 23073810 | 2012-05-126 | 115 | |
| 5330-01-481-9786 | 2012-05-125 | 115 | NECO |
| 23073810 | 2012-04-115 | 440 | |
| 23073810 | 2012-03-89 | 160 | |
| 23073810 | 2010-09-272 | 50 | |
| 23073810 | 2008-04-92 | 32 | Singapore |
| 23073810 | 2008-01-21 | 141 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-481-9786
Related Products | NSN 5330-01-481-9786
Technical Data | NSN 5330-01-481-9786
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | CONTRACTOR SUPPORTED ITEM |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | V-22 OSPREY AIRCRAFT |
| III FSC APPLICATION DATA | ALLISON AE1107C TURBOSHAFT ENGINE T-406-AD-400 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GASKET, FUEL NOZZLE |
| MANUFACTURERS CODE | 1E0F1 |
| DESIGN CONTROL REFERENCE | 23073810 |
Restrictions/Controls & Freight Information | NSN 5330-01-481-9786
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094120 | CLEATS BARREL/KEG STEEL IN BUNDLES |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-481-9786
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | Q1J | Naval ICP Philadelphia, PA 19111 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 0Q | Contractor supported items for NAVICP PHIL Consumables (1R) Naval Inventory Control Point, Philadelphia |
| Special Material ID | CL | ALLISONENGINE(AE1107C) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | Q1J | Naval ICP Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
