NSN 5330-01-504-4748 CC-1915 PC#4, CC1915PC4, 01-504-4748
Product Details | NONMETALLIC ANGLE SEAL
5330-01-504-4748 An item fabricated from NONMETALLIC ANGLE. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting hole(s), slot(s), press fit buttons and the like, must be of one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; GASKET; and PACKING PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC ANGLE.
Part Alternates: CC-1915 PC#4, CC1915PC4, 5330-01-504-4748, 01-504-4748, 5330015044748, 015044748
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JAN 2003 | 01-504-4748 | 32845 ( SEAL, NONMETALLIC ANGLE ) |
Drawings & Photos | NSN 5330-01-504-4748
Demand History | NSN 5330-01-504-4748
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CC-1915 PC#4 | 2022-11-326 | 1 | DIBBS |
| 5330-01-504-4748 | 2018-02-46 | 2 | DIBBS |
| 5330-01-504-4748 | 2017-05-137 | 2 | DIBBS |
| 5330-01-504-4748 | 2016-03-69 | 1 | DIBBS |
| 5330-01-504-4748 | 2014-07-196 | 1 | DIBBS |
Cross Reference | NSN 5330-01-504-4748
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CC-1915 PC#4 | 21204 | CORNELL-CARR CO., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-504-4748
Technical Data | NSN 5330-01-504-4748
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR OVERALL |
| CONSTRUCTION | ONE-PIECE |
| CROSS-SECTIONAL SHAPE STYLE | J5 L SHAPE |
| RIGHT/BASE FLANGE HEIGHT | 0.812 INCHES NOMINAL |
| LEFT FLANGE HEIGHT | 0.875 INCHES NOMINAL |
| LEFT FLANGE THICKNESS AT TOE | 0.187 INCHES NOMINAL |
| RIGHT/BASE FLANGE THICKNESS AT TOE | 0.187 INCHES NOMINAL |
| INNER RADIUS WHERE FLANGES JOIN | 0.125 INCHES NOMINAL |
| OUTER RADIUS WHERE FLANGES JOIN | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | A15 STRIP |
| OVERALL LENGTH | 120.000 INCHES NOMINAL |
| LEFT TIP STYLE | J1A SQUARE END |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | NOT IDENTICAL |

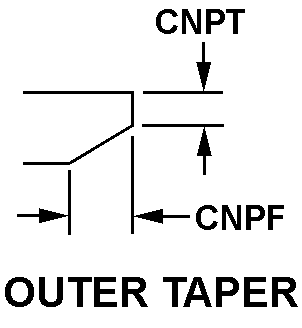

| RIGHT TIP STYLE | J10B OUTER TAPER |
| SECOND TIP TAPER LENGTH | 0.062 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | FIXED ELECTRICALLY HEATED WINDOW ;FLAG BRIDGE |
Restrictions/Controls & Freight Information | NSN 5330-01-504-4748
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-504-4748
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
