NSN 5330-01-510-4269 BACS11BD2, 01-510-4269, 015104269
Product Details | PREFORMED PACKING BACK-UP RING
5330-01-510-4269 A circular shaped item with an aperture manufactured to predetermined dimensions, constructed with a rectangular cross section that may be solid, with joint, or in a helical form that facilitates spiral wrap installation. It prevents seal extrusion under pressure and is designed to fit on the down-pressure side of a gland groove with a PACKING, PREFORMED or O-RING.
Part Alternates: BACS11BD2, 5330-01-510-4269, 01-510-4269, 5330015104269, 015104269
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JUL 2003 | 01-510-4269 | 66949 ( BACK-UP RING, PREFORMED PACKING ) |
Drawings & Photos | NSN 5330-01-510-4269
Demand History | NSN 5330-01-510-4269
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACS11BD2 | 2024-10-290 | 236 | DIBBS |
| BACS11BD2 | 2023-07-193 | 72 | DIBBS |
| 5330-01-510-4269 | 2015-08-239 | 30 | DIBBS |
| 5330-01-510-4269 | 2015-08-228 | 30 | DIBBS |
| BACS11BD2 | 2015-07-209 | 10 | US |
| 5330-01-510-4269 | 2015-01-30 | 770 | DIBBS |
| 5330-01-510-4269 | 2015-01-19 | 770 | DIBBS |
Cross Reference | NSN 5330-01-510-4269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACS11BD2 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-510-4269
Related Products | NSN 5330-01-510-4269
Technical Data | NSN 5330-01-510-4269
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D 4066 ASSN STD SINGLE MATERIAL RESPONSE OR L-P-410 FED SPEC SINGLE MATERIAL RESPONSE |

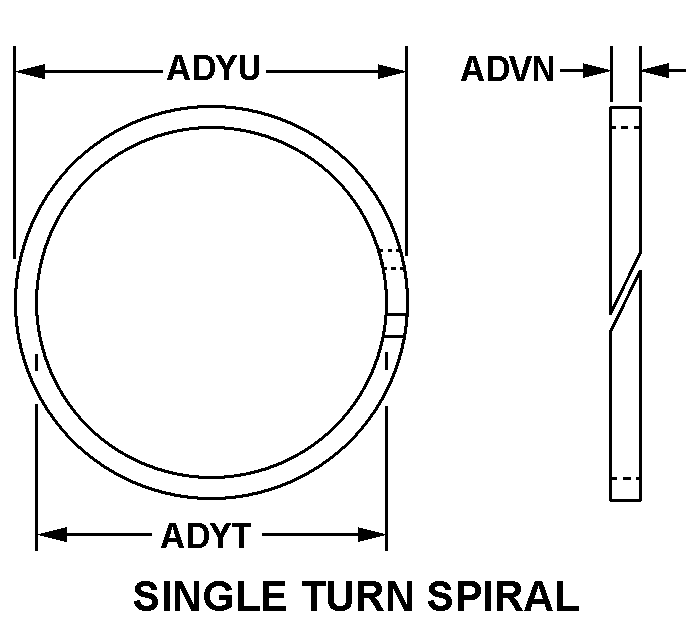

| CROSS-SECTIONAL SHAPE STYLE | 2 SINGLE TURN SPIRAL |
| III END ITEM IDENTIFICATION | AC130 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PACKING,PREFORMED |
| CROSS-SECTIONAL HEIGHT | 0.030 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 0.870 INCHES MINIMUM AND 0.930 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 1.530 INCHES MINIMUM AND 1.590 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5330-01-510-4269
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
