NSN 5330-01-524-1894 1313-2 PIECE 28, 13132PIECE28, 301404-3007215
Product Details | BRUSH TYPE SEAL
5330-01-524-1894 An item designed for sealing openings. It is fitted with natural or synthetic bristles preventing dust or dirt penetration and contributing to air draft reduction.
Part Alternates: 1313-2 PIECE 28, 13132PIECE28, 301404-3007215, 527-5942038 PIECE 28, 5275942038PIECE28, 5330-01-524-1894, 01-524-1894, 3014043007215, 5330015241894, 015241894
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 SEP 2004 | 01-524-1894 | 42120 ( SEAL, BRUSH TYPE ) |
Drawings & Photos | NSN 5330-01-524-1894
Demand History | NSN 5330-01-524-1894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1313-2 PIECE 28 | 2025-06-177 | 79 | DIBBS |
| 301404-3007215 | 2025-06-177 | 79 | DIBBS |
| 527-5942038 PIECE 28 | 2025-06-177 | 79 | DIBBS |
| 1313-2 PIECE 28 | 2023-10-278 | 21 | DIBBS |
| 301404-3007215 | 2023-10-278 | 21 | DIBBS |
| 527-5942038 PIECE 28 | 2023-10-278 | 21 | DIBBS |
| 1313-2 PIECE 28 | 2023-09-250 | 34 | DIBBS |
| 301404-3007215 | 2023-09-250 | 34 | DIBBS |
| 527-5942038 PIECE 28 | 2023-09-250 | 34 | DIBBS |
| 1313-2 PIECE 28 | 2022-07-202 | 98 | DIBBS |
| 301404-3007215 | 2022-07-202 | 98 | DIBBS |
| 527-5942038 PIECE 28 | 2022-07-202 | 98 | DIBBS |
| 5330-01-524-1894 | 2018-08-226 | 179 | DIBBS |
| 5330-01-524-1894 | 2018-01-02 | 186 | DIBBS |
| 5330-01-524-1894 | 2017-08-221 | 186 | DIBBS |
| 5330-01-524-1894 | 2016-06-153 | 99 | DIBBS |
| 5330-01-524-1894 | 2013-02-45 | 184 | DIBBS |
| 5330-01-524-1894 | 2013-01-09 | 72 | DIBBS |
| 5330-01-524-1894 | 2012-06-160 | 42 | DIBBS |
| 5330-01-524-1894 | 2012-02-33 | 71 | DIBBS |
| 5330-01-524-1894 | 2008-02-59 | 61 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-524-1894
Related Products | NSN 5330-01-524-1894
Technical Data | NSN 5330-01-524-1894
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING CASE PLASTIC POLYIMIDE BRISTLES |
| COLOR | BLACK |
| CONSTRUCTION | ONE-PIECE |

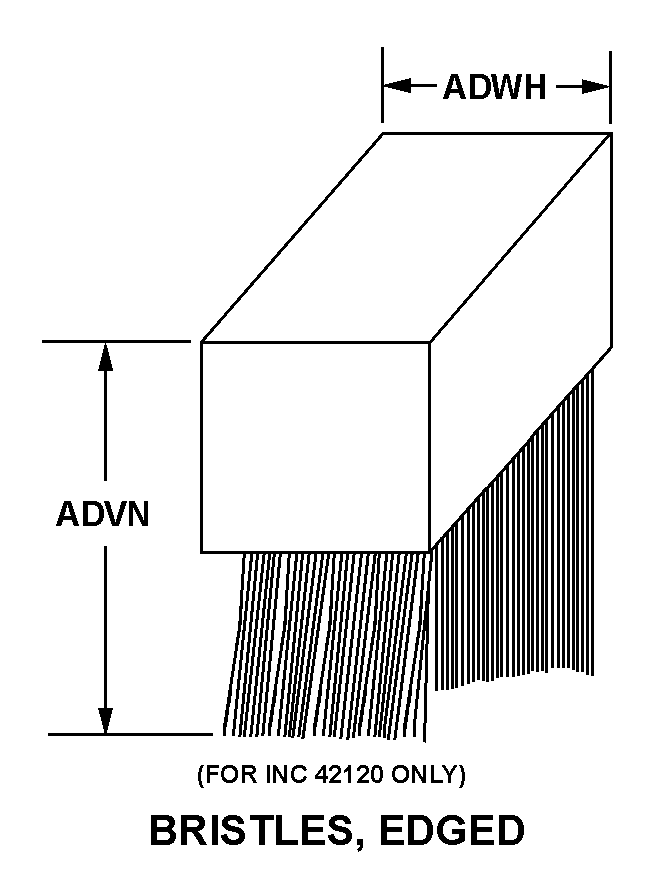

| CROSS-SECTIONAL SHAPE STYLE | G41 BRISTLES, EDGED |
| CROSS-SECTIONAL HEIGHT | 1.000 INCHES NOMINAL |
| STYLE DESIGNATOR | A2 OVAL |
| APERTURE LENGTH | 8.000 INCHES NOMINAL |
| SPECIAL FEATURES | BRISTLE: 6-12 NYLON -- BRISTLE DIA : 0.008 --- BACKING MATERIAL : 3/8IN STAINLESS STEEL -- BRUSH LENGTH: 8IN -- BRUSH OVERALL TRIM: 1IN |
| III END ITEM IDENTIFICATION | SSN 688 CLASS SUBMARINE RETRACTABLE BOW PLANE TIP SEAL |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BRUSH STRIP ASSY REVERSE COIL |
Restrictions/Controls & Freight Information | NSN 5330-01-524-1894
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-524-1894
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
