NSN 5330-01-542-6282 F056433 ITEM 10, F056433ITEM10, F056708
Product Details | PLAIN SEAL
5330-01-542-6282 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Part Alternates: F056433 ITEM 10, F056433ITEM10, F056708, 8820 H1L5, 8820H1L5, 01258820LUP, 0125-8820-LUP, 5330-01-542-6282, 01-542-6282, 5330015426282, 015426282
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 AUG 2006 | 01-542-6282 | 04250 ( SEAL, PLAIN ) |
Drawings & Photos | NSN 5330-01-542-6282
Demand History | NSN 5330-01-542-6282
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8820 H1L5 | 2023-07-208 | 71 | DIBBS |
| F056433 ITEM 10 | 2023-07-208 | 71 | DIBBS |
| F056708 | 2023-07-208 | 71 | DIBBS |
| 8820 H1L5 | 2022-09-262 | 39 | DIBBS |
| F056433 ITEM 10 | 2022-09-262 | 39 | DIBBS |
| F056708 | 2022-09-262 | 39 | DIBBS |
| 8820 H1L5 | 2022-07-205 | 56 | DIBBS |
| F056433 ITEM 10 | 2022-07-205 | 56 | DIBBS |
| F056708 | 2022-07-205 | 56 | DIBBS |
| 5330-01-542-6282 | 2016-10-295 | 56 | US |
| 5330-01-542-6282 | 2016-10-295 | 56 | US |
| 5330-01-542-6282 | 2013-08-220 | 25 | DIBBS |
Cross Reference | NSN 5330-01-542-6282
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0125-8820-LUP | 48482 | PARKER-HANNIFIN, CORPORATION DBA ENGINEERED POLYMER SYSTEMS |
| 8820 H1L5 | 48482 | PARKER-HANNIFIN, CORPORATION DBA ENGINEERED POLYMER SYSTEMS |
| F056433 ITEM 10 | 34712 | OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE |
| F056708 | 34712 | OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-542-6282
Related Products | NSN 5330-01-542-6282
Technical Data | NSN 5330-01-542-6282
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING SPRING |
| CONSTRUCTION | ONE-PIECE |

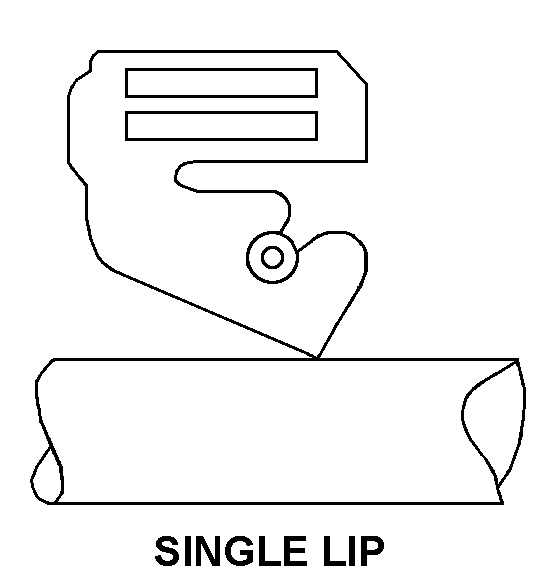

| CROSS-SECTIONAL SHAPE STYLE | L11 SINGLE LIP |
| SEAL WIDTH | 0.220 INCHES MINIMUM AND 0.228 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 1.135 INCHES MINIMUM AND 1.200 INCHES MAXIMUM |
| HOUSING BORE DIAMETER | 1.757 INCHES MINIMUM AND 1.778 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | HATCH ASSY |
Restrictions/Controls & Freight Information | NSN 5330-01-542-6282
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194090 | WASHERS/SEALS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-542-6282
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
