NSN 5330-01-561-7567 8525T24, 01-561-7567, 015617567
Product Details | GASKET
5330-01-561-7567 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 8525T24, 5330-01-561-7567, 01-561-7567, 5330015617567, 015617567
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAR 2008 | 01-561-7567 | 04522 ( GASKET ) |

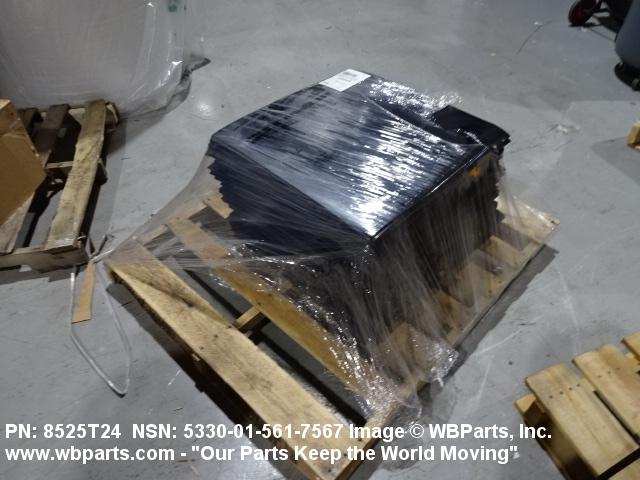

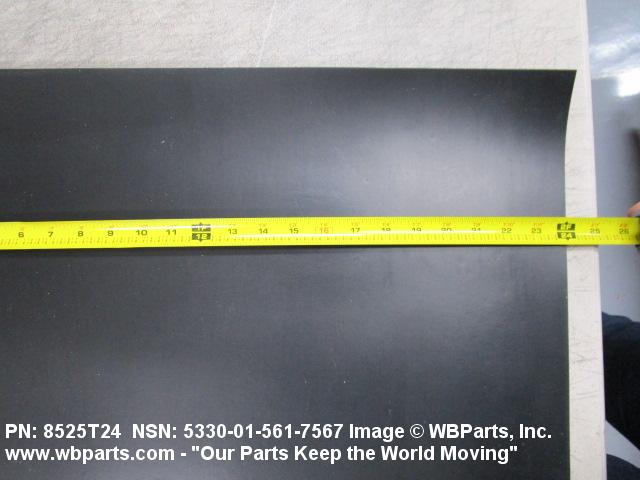

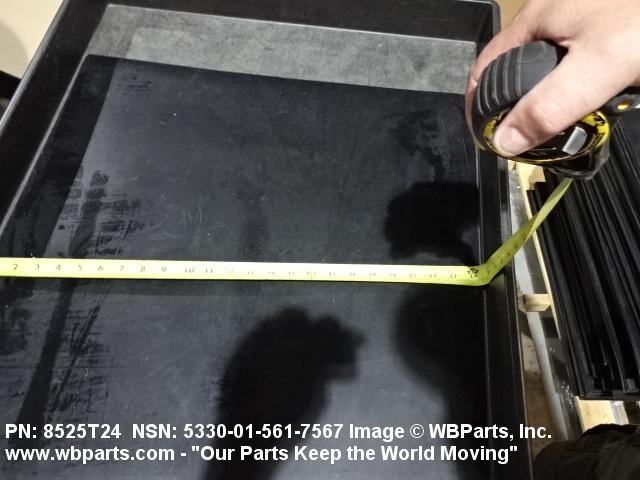

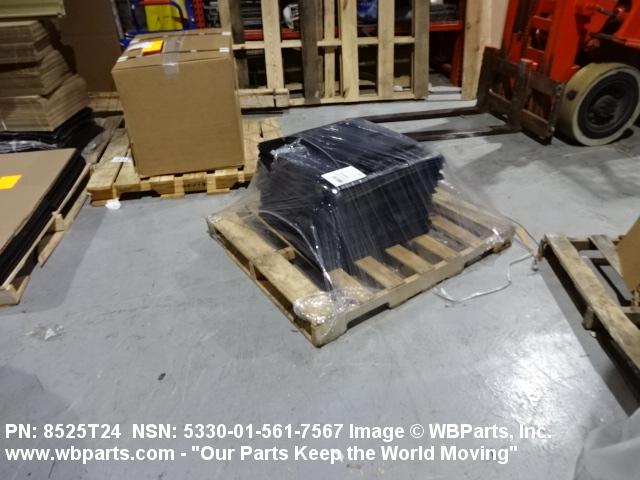

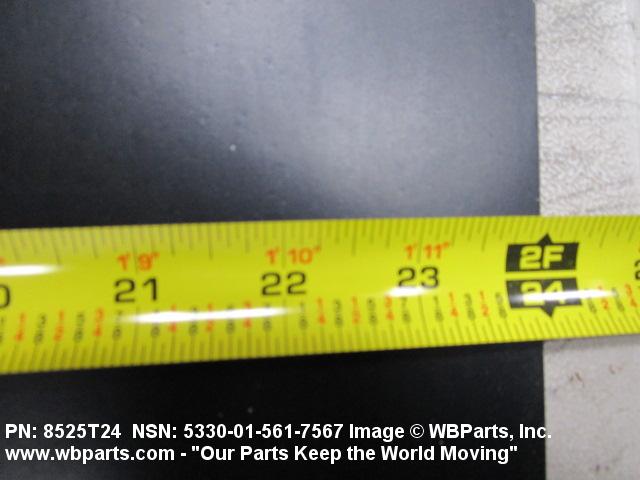

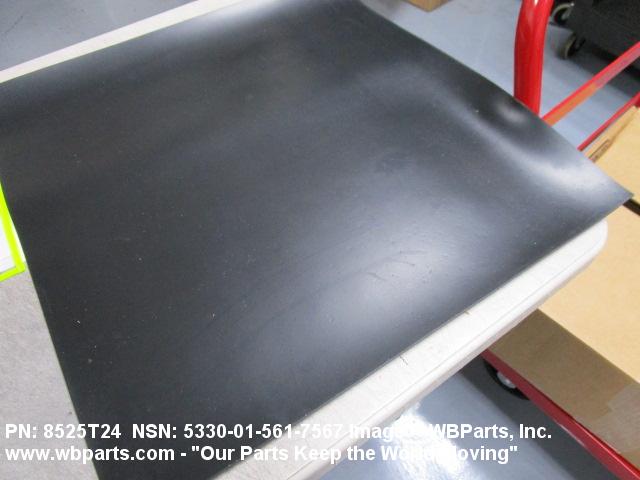

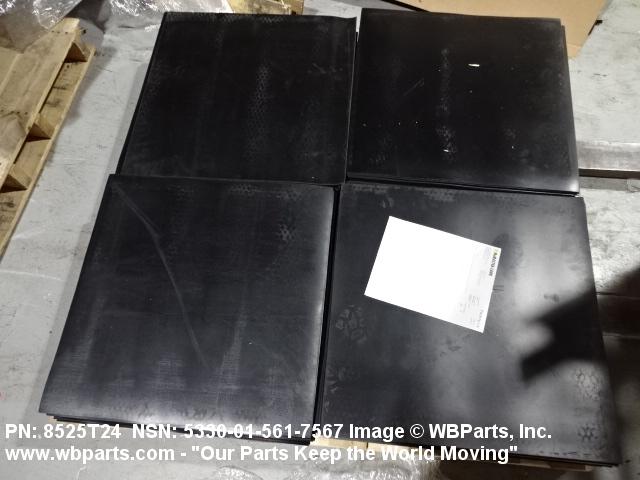

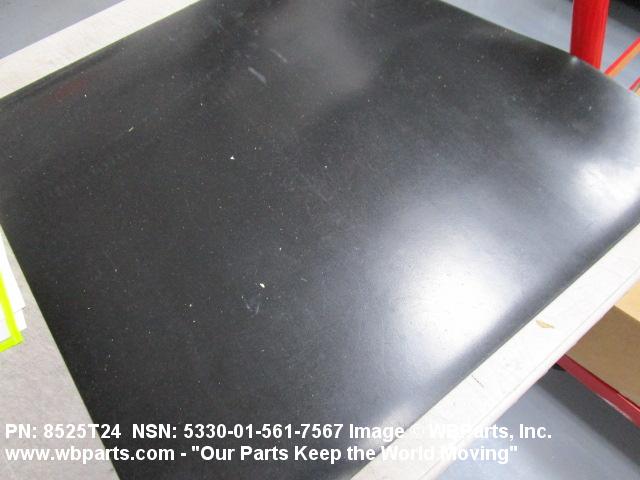

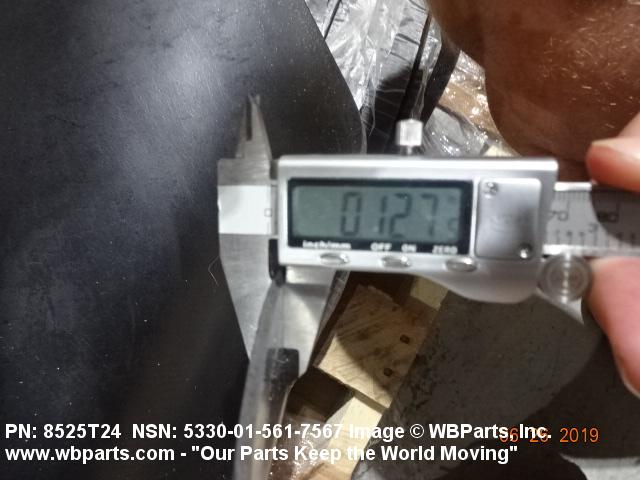

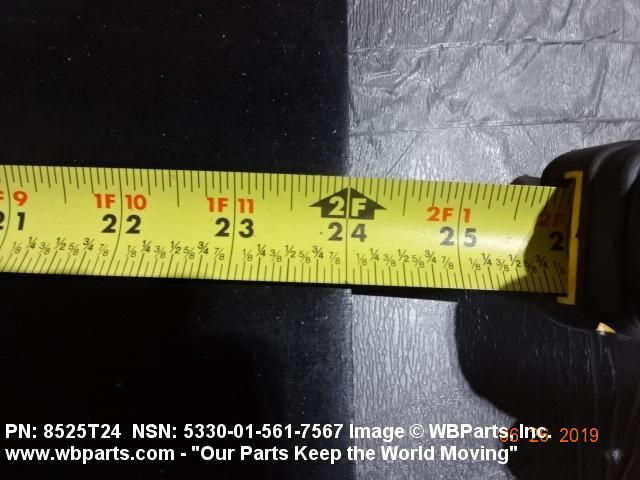

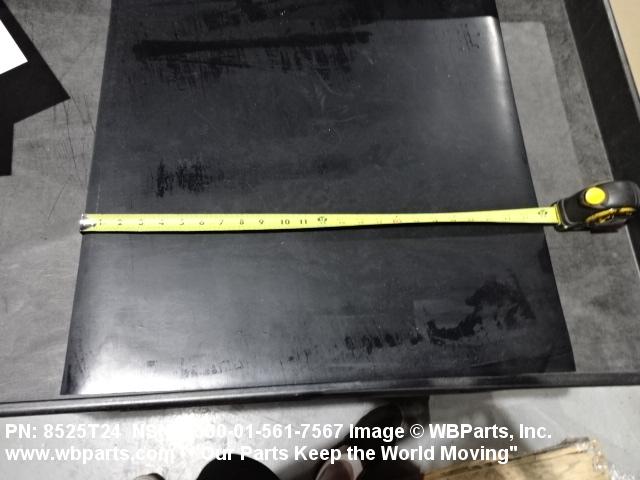

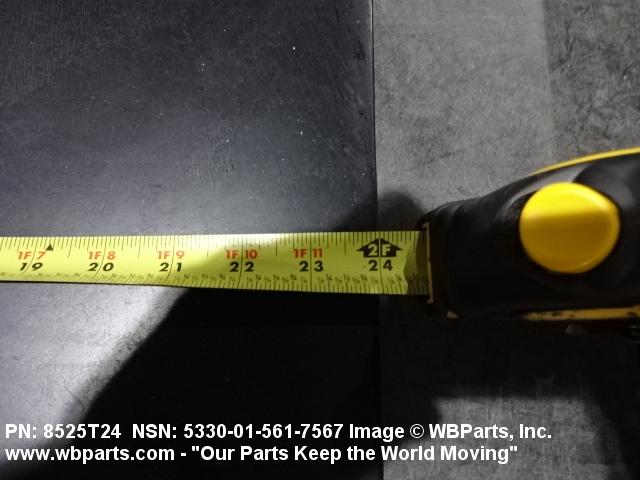

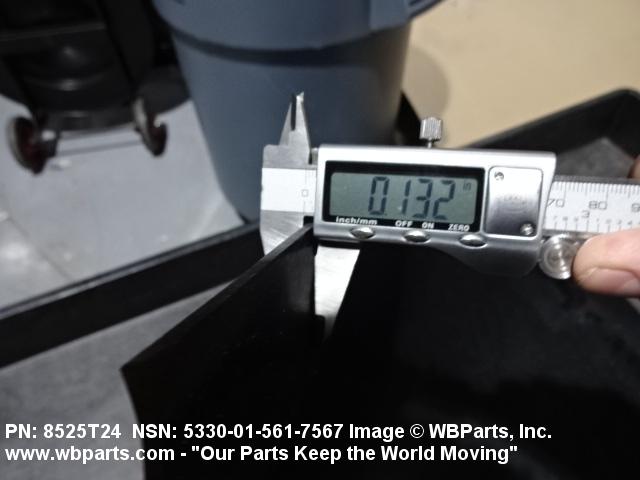

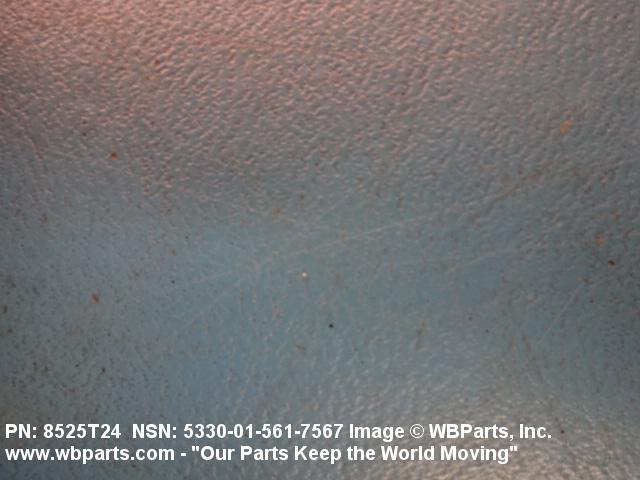

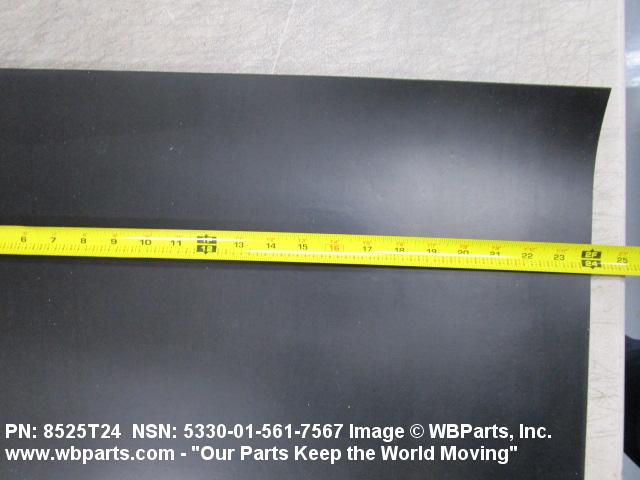

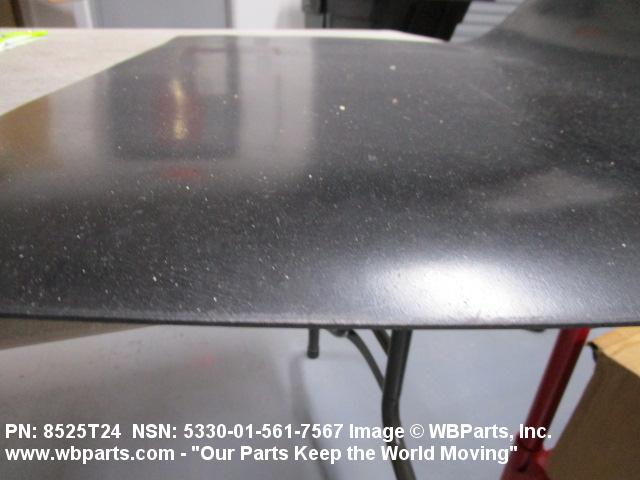

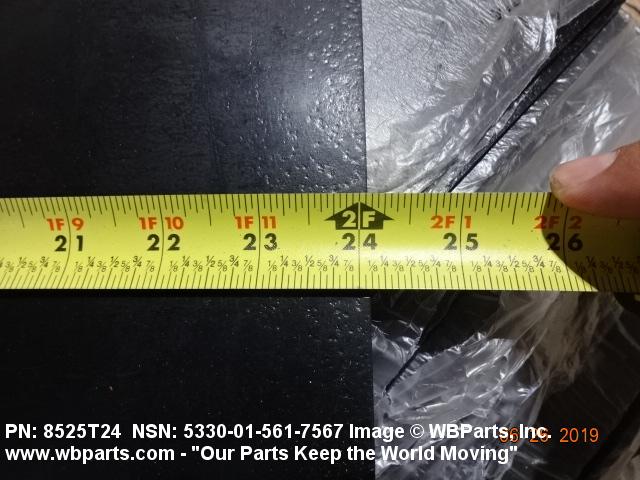

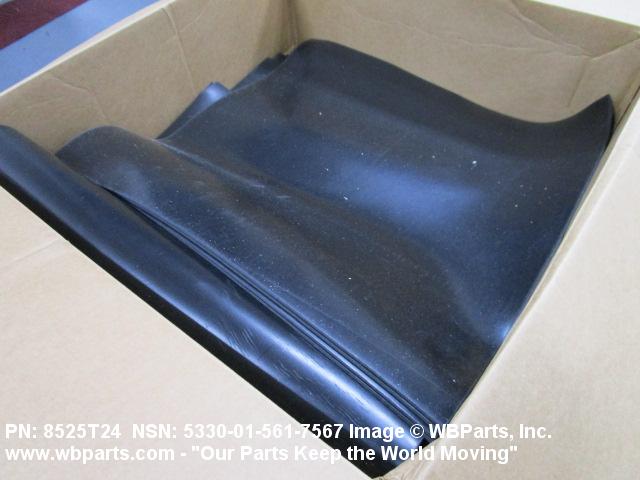

Drawings & Photos | NSN 5330-01-561-7567
Demand History | NSN 5330-01-561-7567
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-561-7567 | 2025-06-178 | 75 | US |
| 5330-01-561-7567 | 2021-12-342 | 6 | US |
| 5330-01-561-7567 | 2021-12-342 | 6 | US |
| 5330-01-561-7567 | 2021-07-182 | 300 | United States |
| 5330-01-561-7567 | 2021-06-166 | 300 | United States |
| 5330-01-561-7567 | 2019-06-164 | 60 | United States |
| 5330-01-561-7567 | 2018-01-23 | 40 | United States |
Cross Reference | NSN 5330-01-561-7567
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8525T24 | 3A054 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-561-7567
Technical Data | NSN 5330-01-561-7567
| Characteristic | Specifications |
|---|---|

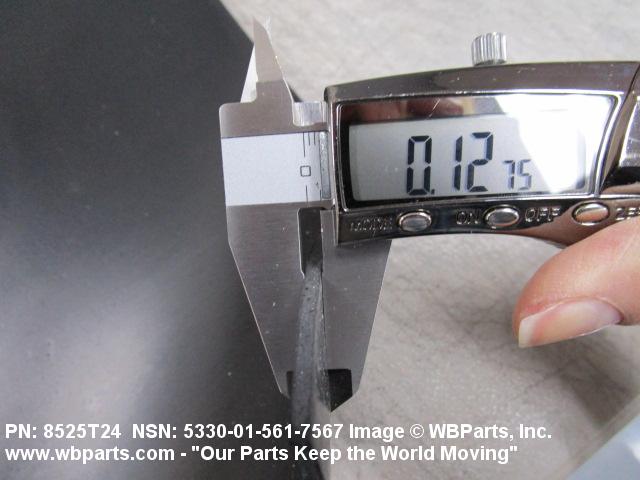

| SPECIAL FEATURES | 0.125THK |
| III END ITEM IDENTIFICATION | NSC-420 (WMSL-750) |
| MANUFACTURERS CODE | 3A054 |
| DESIGN CONTROL REFERENCE | 8525T24 |
Restrictions/Controls & Freight Information | NSN 5330-01-561-7567
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-561-7567
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
