NSN 5330-01-564-0314 296442000005550, 296-44200-000-5550, 01-564-0314
Product Details | PREFORMED PACKING BACK-UP RING
5330-01-564-0314 A circular shaped item with an aperture manufactured to predetermined dimensions, constructed with a rectangular cross section that may be solid, with joint, or in a helical form that facilitates spiral wrap installation. It prevents seal extrusion under pressure and is designed to fit on the down-pressure side of a gland groove with a PACKING, PREFORMED or O-RING.
Part Alternates: 296442000005550, 296-44200-000-5550, 5330-01-564-0314, 01-564-0314, 5330015640314, 015640314
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JUN 2008 | 01-564-0314 | 66949 ( BACK-UP RING, PREFORMED PACKING ) |
Drawings & Photos | NSN 5330-01-564-0314
Cross Reference | NSN 5330-01-564-0314
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 296-44200-000-5550 | 5F573 | GREENE, TWEED & CO., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-564-0314
Related Products | NSN 5330-01-564-0314
Technical Data | NSN 5330-01-564-0314
| Characteristic | Specifications |
|---|---|
| MATERIAL | CARBON |

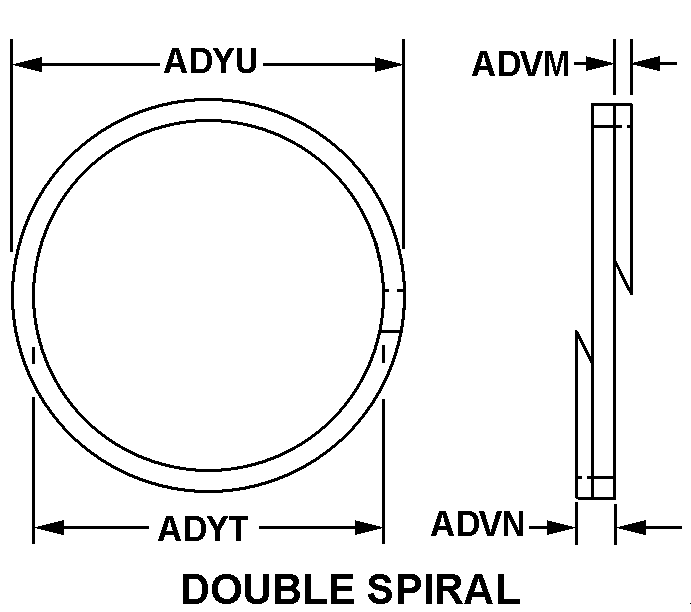

| CROSS-SECTIONAL SHAPE STYLE | 5 DOUBLE SPIRAL |
| III END ITEM IDENTIFICATION | C5 AIRCRAFT |
| CROSS-SECTIONAL THICKNESS | 0.579 INCHES MINIMUM AND 0.589 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 7.244 INCHES MINIMUM AND 7.247 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 7.720 INCHES MINIMUM AND 7.722 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5330-01-564-0314
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-564-0314
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
