NSN 5331-00-166-8404 MS9338215, MS9338-215, M83248/1-215
Product Details | O-RING
5331-00-166-8404 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: MS9338215, MS9338-215, M83248/1-215, M832481215, NAS1593215, NAS1593-215, AN622720, AN6227-20, AS3209215, AS3209-215, AS568215AMS7280, AS568-215AMS7280, ASC1442478, S2C215, ST1050215, ST1050-215, ST3001215, ST3001-215, Z00.N7423360015TBM, Z00N7423360015TBM, GS570AP139C105, J221P215, PRP21519357, PRP215-19357, MIL-R-83248/1, MILR832481, 21471-400 FIND 25, 21471400FIND25, 21517107, 215-17107, 21519357, 215-19357, 21725-400 FIND 13, 21725400FIND13, 21780-400 FIND 14, 21780400FIND14, 2-215 V747-75, 2215V074775, 2-215V0747-75, 2215V116475, 2-215V1164-75, 2215V122675, 2-215V1226-75, 2215V74775, 2-215V747-75, 262394, 3235RA PIECE 21, 3235RAPIECE21, 556-6408988-B-2 6, 5566408988B26, 5682157, 568215-7, 645001RR215, 6493932150, 649-393-215-0, 71089330, 710893-30, 516759-505, 757075-215, 7955020, 79550-20, 815-1197212 PIECE 17, 8151197212PIECE17, 845-7285243 ITEM 26, 8457285243ITEM26, 5331-00-166-8404, 00-166-8404, 5331001668404, 001668404, 757075215, 516759505
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 NOV 1971 | 00-166-8404 | 47946 ( O-RING ) |

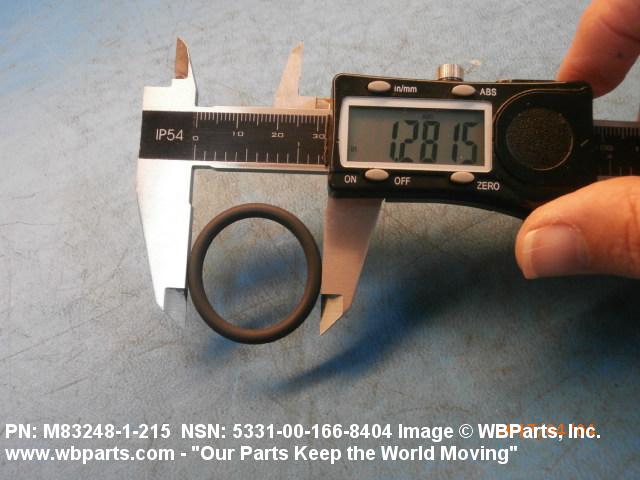

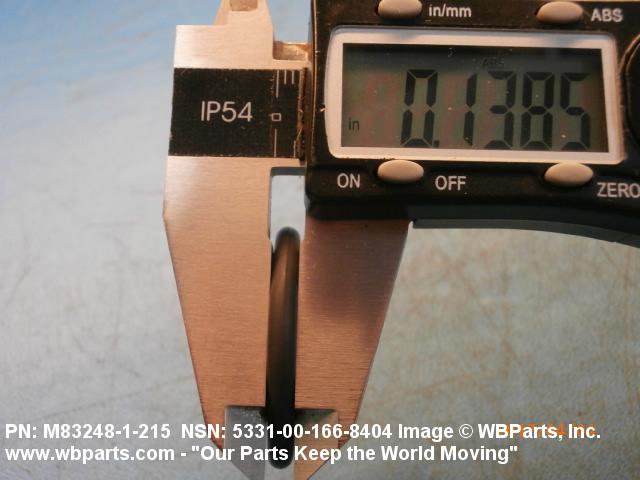

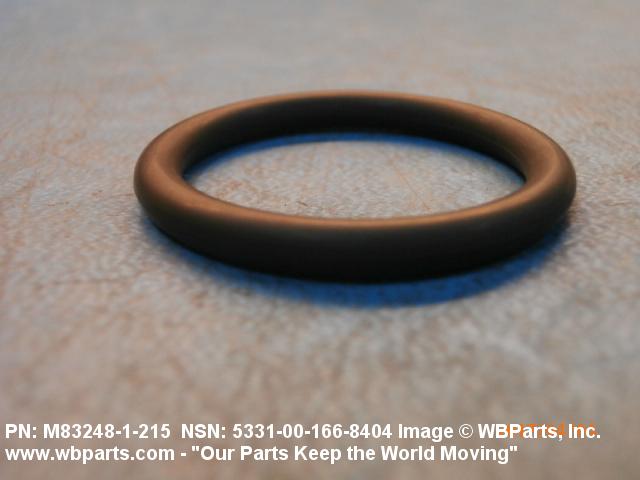

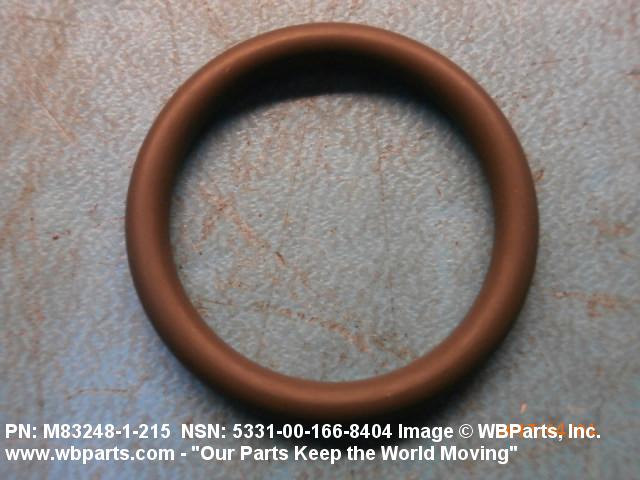

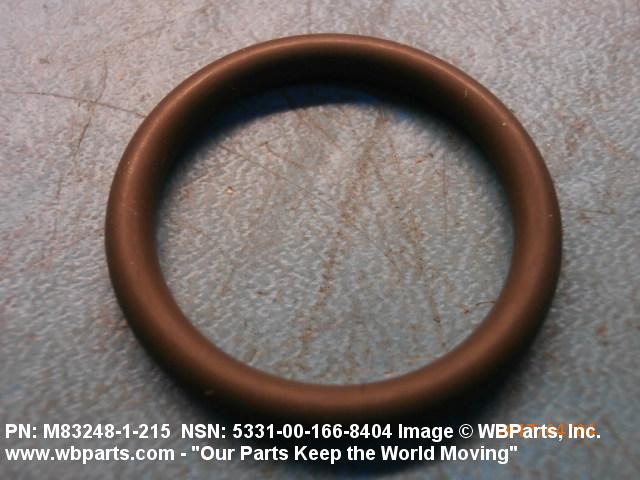

Drawings & Photos | NSN 5331-00-166-8404
Demand History | NSN 5331-00-166-8404
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5331-00-166-8404 | 2025-08-223 | 35 | AU |
| M832481215 | 2024-02-57 | 200 | US |
| 5331-00-166-8404 | 2023-08-225 | 12589 | DIBBS |
| AS3209215 | 2022-07-194 | 4 | Australia |
| 5331-00-166-8404 | 2022-06-156 | 733 | DIBBS |
| AS3209215 | 2022-06-152 | 8 | Sri Lanka |
| 5331-00-166-8404 | 2019-08-217 | 1 | DIBBS-RFPs |
| 6493932150 | 2019-03-70 | 1 | us |
| 5331-00-166-8404 | 2018-10-288 | 3 | United States |
| 5331-00-166-8404 | 2018-07-201 | 1 | DIBBS-RFPs |
| 5331-00-166-8404 | 2017-03-88 | 2 | United States |
| 5331-00-166-8404 | 2017-02-42 | 10 | United States |
| M832481215 | 2016-12-336 | 1 | United States |
| AS3209215 | 2016-09-267 | 8 | Taiwan |
| 5331-00-166-8404 | 2016-03-83 | 1 | DIBBS-RFPs |
| 5331-00-166-8404 | 2016-02-55 | 25300 | DIBBS |
| 6493932150 | 2015-07-196 | 2 | JO |
| M83248/1-215 | 2015-03-85 | 19 | US |
| M83248/1-215 | 2015-03-69 | 500 | US |
| MS9338-215 | 2014-12-352 | 12 | United States |
| MS9338-215 | 2013-08-229 | 314 | Canada |
| AS3209215 | 2013-02-46 | 10 | Italy |
| MS9338-215 | 2011-04-95 | 16 | United States |
| AN622720 | 2011-01-19 | 5 | US |
| 5331-00-166-8404 | 2010-10-300 | 5 | US |
| 5331-00-166-8404 | 2010-07-204 | 2 | US |
| J221P215 | 2009-10-295 | 1 | United States |
Cross Reference | NSN 5331-00-166-8404
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-215 V747-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-215 V747-75 | C0308 | O-RING DIVISION EUROPE |
| 2-215V0747-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-215V1164-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-215V1226-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-215V747-75 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 21471-400 FIND 25 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 215-17107 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| 215-19357 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| 21725-400 FIND 13 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 21780-400 FIND 14 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 262394 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 3235RA PIECE 21 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 516759-505 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 556-6408988-B-2 6 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 568215-7 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 645001RR215 | 99551 | GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS |
| 649-393-215-0 | 58828 | CFM INTERNATIONAL, INC. |
| 649-393-215-0 | F0301 | SNECMA MOTEURS GROUPE SNECMA |
| 710893-30 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 710893-30 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 757075-215 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 79550-20 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 815-1197212 PIECE 17 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 845-7285243 ITEM 26 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| AN6227-20 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AS3209-215 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS568-215AMS7280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| ASC1442478 | Z4779 | ASC PTY LTD |
| GS570AP139C105 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| J221P215 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| M83248/1-215 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-83248/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS9338-215 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS1593-215 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| PRP215-19357 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| S2C215 | 08118 | EATON AVIATION CORPORATION |
| ST1050-215 | 24664 | JONAL LABORATORIES INCORPORATED |
| ST1050-215 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| ST3001-215 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
| Z00.N7423360015TBM | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5331-00-166-8404
Related Products | NSN 5331-00-166-8404
Technical Data | NSN 5331-00-166-8404
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM |
| CENTER HOLE DIAMETER | 1.036 INCHES MINIMUM AND 1.056 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.135 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5331-00-166-8404
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-00-166-8404
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | I | Industrial MaterielDefense Industrial Supply Center (DISC) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
