NSN 5331-00-167-5146 MS9388264, MS9388-264, M83248/1-264

Product Details | O-RING

5331-00-167-5146 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.

Part Alternates: MS9388264, MS9388-264, M83248/1-264, M832481264, M832481264ES, M83248-1-264ES, NB39826474, AMS7276G, AS3085264, AS3085-264, AS3209264, AS3209-264, ASC1497728, S9413264, S9413-264, Z1057AC, MILR83248, F-NGG-0-99-001 PIECE 36, FNGG099001PIECE36, GBV-F3-60-0010 DET 24 , GBVF360001024, GBV-F3-60-0010-24 , GBVF3600010DET24, J221P264, 10000937, 2264V074775, 2-264V0747-75, 2264V116475, 2-264V1164-75, 2264V122675, 2-264V1226-75, 2264V88475, 2-264V884-75, 26419357, 264-19357, 001184.851.000, 001184851000, 264-1935-70, 607948.001 SEQ 274, 607948001SEQ274, 623062, 903260C1, 5331-00-167-5146, 00-167-5146, 5331001675146, 001675146, 264193570

Hardware and Abrasives | O-Ring

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	24 NOV 1971	00-167-5146	47946 ( O-RING )

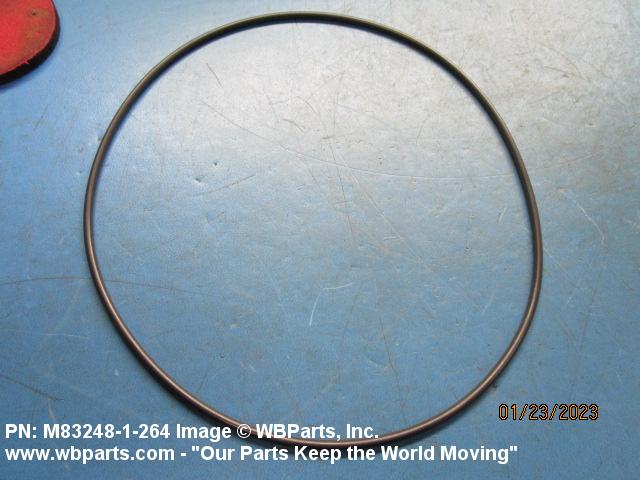

Drawings & Photos | NSN 5331-00-167-5146

Part Number	Request Date	QTY	Origin
MILR83248	2025-05-132	2	United States
AMS7276G	2024-11-317	2	United States
AS3209264	2024-07-199	40	United States
5331-00-167-5146	2023-08-243	5225	DIBBS
5331-00-167-5146	2023-08-232	5225	DIBBS
5331-00-167-5146	2023-08-226	2461	DIBBS
5331-00-167-5146	2023-08-214	2461	DIBBS
5331-00-167-5146	2023-07-194	690	DIBBS
5331-00-167-5146	2023-05-138	498	DIBBS
5331-00-167-5146	2023-04-106	685	DIBBS
5331-00-167-5146	2023-01-08	1494	DIBBS
M832481264	2022-12-355	4	United States
5331-00-167-5146	2022-12-336	3	MANUAL
5331-00-167-5146	2022-09-270	200	DIBBS
5331-00-167-5146	2022-09-262	658	DIBBS
5331-00-167-5146	2022-08-224	4	United States
5331-00-167-5146	2021-10-280	2	DIBBS
5331-00-167-5146	2020-11-321	1	DIBBS-RFPs
5331-00-167-5146	2018-07-201	1	DIBBS-RFPs
J221P264	2018-05-135	1	FX
MILR83248	2017-03-83	3	United States
5331-00-167-5146	2016-07-193	1000	DIBBS
5331-00-167-5146	2016-03-83	1	DIBBS-RFPs
MILR83248	2016-03-81	18	United States
MILR83248	2016-03-81	9	United States
5331-00-167-5146	2016-03-67	2940	DIBBS
5331-00-167-5146	2015-01-22	10	US
5331001675146	2015-01-16	10	PL
5331-00-167-5146	2014-10-276	4665	DIBBS
5331-00-167-5146	2014-08-239	5205	DIBBS
AMS7276G	2013-08-229	200	Canada
MILR83248	2011-10-304	301	KR
M832481264	2011-05-129	100	United States
MILR83248	2011-01-05	1	CA
AS3085264	2010-12-354	50	US
AMS7276G	2009-05-127	250	US
MILR83248	2007-08-221	4	US

Cross Reference | NSN 5331-00-167-5146

Part Number	Cage Code	Manufacturer
001184.851.000	1J9B9	FLOWSERVE FCD CORPORATION DBA FLOWSERVE
10000937	1F5D8	MCJUNKIN CORP MCPAC INC DIV
10000937	50815	VALTEK INC
2-264V0747-75	02697	PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER
2-264V1164-75	02697	PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER
2-264V1226-75	02697	PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER
2-264V884-75	02697	PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER
264-1935-70	25184	PARKER HANNIFIN CORPORATION DIV O-RING DIVISION
264-19357	25184	PARKER HANNIFIN CORPORATION DIV O-RING DIVISION
607948.001 SEQ 274	1J9B9	FLOWSERVE FCD CORPORATION DBA FLOWSERVE
623062	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
903260C1	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AMS7276G	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS3085-264	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AS3209-264	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
ASC1497728	Z4779	ASC PTY LTD
F-NGG-0-99-001 PIECE 36	10941	CARVER PUMP COMPANY INC
GBV-F3-60-0010 DET 24	0AZ22	B.N.L. INDUSTRIES, INC.
GBV-F3-60-0010-24	0AZ22	B.N.L. INDUSTRIES, INC.
J221P264	07482	GENERAL ELECTRIC COMPANY DBA GE
M83248-1-264ES	H2313	ERIKS B.V.
M83248/1-264	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILR83248	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS9388-264	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NB39826474	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
S9413-264	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
Z1057AC	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5331-00-167-5146

Compare

Related Products | NSN 5331-00-167-5146

5331-00-167-5147, 5331-00-167-5148, 5331-00-167-5149, 5331-00-167-5150, 5331-00-167-5151

Technical Data | NSN 5331-00-167-5146

Characteristic	Specifications
MATERIAL	RUBBER FLUOROCARBON CLASS FPM

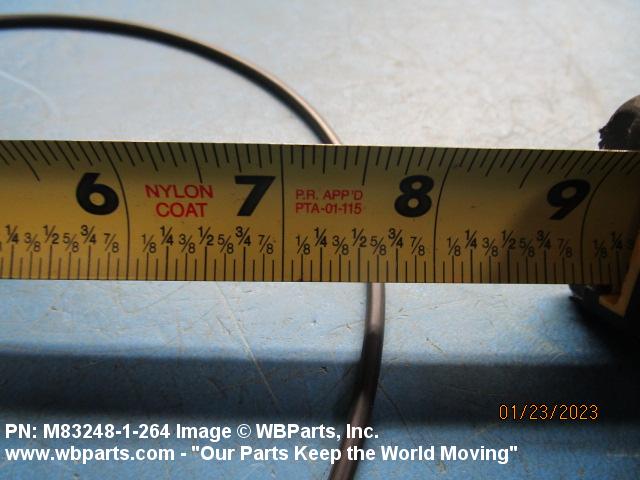

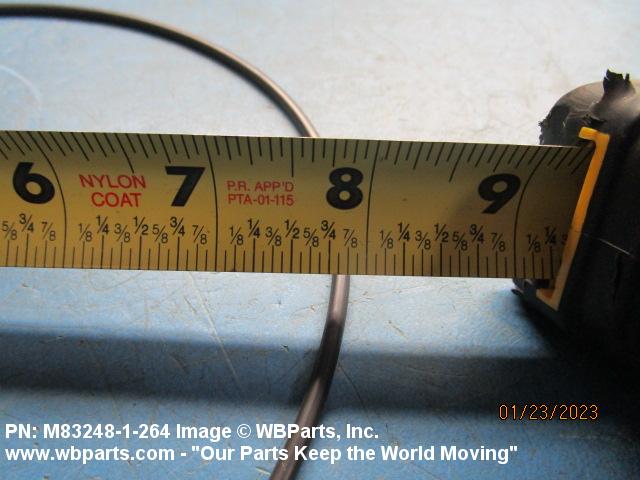

CENTER HOLE DIAMETER	7.439 INCHES MINIMUM AND 7.529 INCHES MAXIMUM

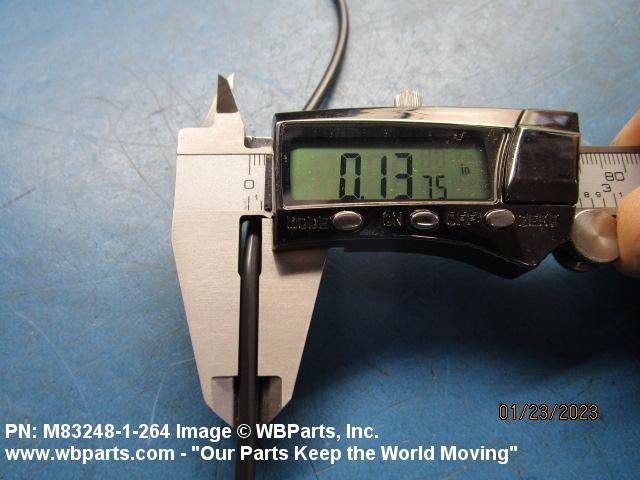

CROSS-SECTIONAL HEIGHT	0.135 INCHES MINIMUM AND 0.143 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5331-00-167-5146

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5331-00-167-5146

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
