NSN 5331-00-175-4978 S8990604, S8990-604 , S8990604ES

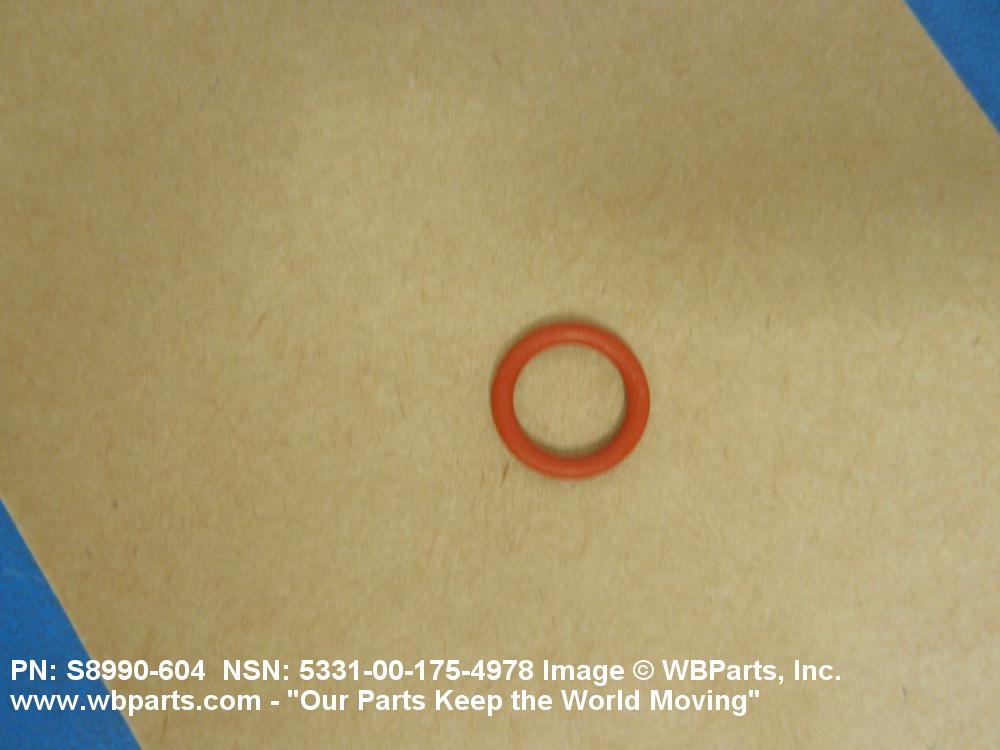

Product Details | O-RING
5331-00-175-4978 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: S8990604, S8990-604 , S8990604ES, S8990-604ES, VS8990604, VS8990-604 , 10159937 , 5331-00-175-4978, 00-175-4978, 5331001754978, 001754978
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 DEC 1971 | 00-175-4978 | 47946 ( O-RING ) |
Drawings & Photos | NSN 5331-00-175-4978
Demand History | NSN 5331-00-175-4978
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5331-00-175-4978 | 2025-05-132 | 292 | United States |
| S8990604 | 2025-02-42 | 2 | PH |
| 5331-00-175-4978 | 2023-10-293 | 10 | PT |
| S8990-604 | 2019-10-300 | 7000 | DIBBS |
| 5331-00-175-4978 | 2018-06-172 | 5240 | DIBBS |
| 5331-00-175-4978 | 2017-11-312 | 1000 | DIBBS |
| 5331-00-175-4978 | 2017-10-304 | 1000 | DIBBS |
| 5331-00-175-4978 | 2017-10-276 | 6168 | DIBBS |
| 5331-00-175-4978 | 2017-06-158 | 1044 | DIBBS |
| 5331-00-175-4978 | 2016-08-235 | 4 | United States |
| S8990604 | 2016-04-116 | 250 | US |
| 5331-00-175-4978 | 2016-01-11 | 796 | DIBBS |
| 5331-00-175-4978 | 2014-04-98 | 1200 | DIBBS |
| 5331-00-175-4978 | 2013-10-304 | 10 | United Kingdom |
| 5331-00-175-4978 | 2013-05-142 | 400 | DIBBS |
| S8990-604 | 2013-05-134 | 50 | CZ |
| 5331-00-175-4978 | 2011-06-159 | 213 | DIBBS |
| 5331-00-175-4978 | 2011-05-138 | 24 | Spain |
| 5331-00-175-4978 | 2011-05-125 | 24 | Spain |
| 5331-00-175-4978 | 2011-05-123 | 24 | Spain |
| 5331-00-175-4978 | 2011-05-123 | 24 | Spain |
| 5331-00-175-4978 | 2011-03-70 | 539 | DIBBS |
| 5331-00-175-4978 | 2010-11-321 | 2 | US |
| 5331-00-175-4978 | 2010-11-321 | 50 | US |
| 5331-00-175-4978 | 2009-01-29 | 218 | DIBBS |
| 5331-00-175-4978 | 2008-12-364 | 3 | DIBBS |
| 5331-00-175-4978 | 2008-12-349 | 1 | DIBBS |
| 5331-00-175-4978 | 2008-12-349 | 10 | DIBBS |
| 5331-00-175-4978 | 2008-11-333 | 5 | DIBBS |
| 5331-00-175-4978 | 2008-11-328 | 10 | DIBBS |
| 5331-00-175-4978 | 2007-11-318 | 12 | Turkey |
| 5331-00-175-4978 | 2006-07-198 | 2 | us |
Cross Reference | NSN 5331-00-175-4978
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S8990-604 | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| S8990-604 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| S8990-604 | 1RDZ1 | BE AEROSPACE CONSUMABLES MANAGEMENT DBA CONSUMABLES SOLUTIONS DIV |
| S8990-604 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| S8990-604 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8990-604 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8990-604 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| S8990-604 | 77308 | PARCO INC. |
| S8990-604 | 77969 | RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD |
| S8990-604 | 91265 | PARKER-HANNIFIN, CORPORATION DBA TECHSEAL DIVISION |
| S8990-604 | 95272 | STILLMAN SEAL CORPORATION |
| S8990-604 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| S8990-604 | 98159 | RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD |
| S8990-604 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8990-604ES | H2313 | ERIKS B.V. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5331-00-175-4978
Related Products | NSN 5331-00-175-4978
Technical Data | NSN 5331-00-175-4978
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| MATERIAL DOCUMENT AND CLASSIFICATION | EMS 53015 FSCM 99193 MFR REF SINGLE MATERIAL RESPONSE |
| HARDNESS RATING | 60.0 SHORE DUROMETER A MINIMUM AND 75.0 SHORE DUROMETER A MAXIMUM |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 500.0 DEG FAHRENHEIT |
| CENTER HOLE DIAMETER | 0.344 INCHES MINIMUM AND 0.358 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.069 INCHES MINIMUM AND 0.075 INCHES MAXIMUM |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | S8990-604 |
Restrictions/Controls & Freight Information | NSN 5331-00-175-4978
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-00-175-4978
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
