NSN 5331-00-248-3848 MS29513018, MS29513-018, MS29513018ES
Product Details | O-RING
5331-00-248-3848 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: MS29513018, MS29513-018, MS29513018ES, MS29513-018ES, MS2951318, MS29513-18, AJ6011, AJ60-11, SR18SR822A60, WB178A01877EA3A, WB178A01877EANA, R01877X178AD016, I16450SR822A60, 7866018, 7866-018, 8927926, 892-7926, 00518, 00520, 00718, 01055, 018C69, 018-C-69, 031640, 1793018, 1793-018, 1877X178SR822A60A, 2601730-22, 2661058B018, 42605SB16A, 4-2605SB16A, 4517531PC7, 451-7531PC7, 45760018, 457-60-018, 5331-00-248-3848, 00-248-3848, 5331002483848, 260173022, 002483848
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-248-3848 | 47946 ( O-RING ) |

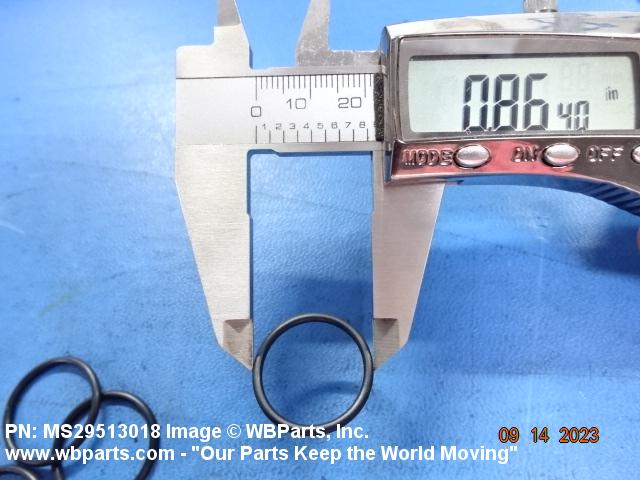

Drawings & Photos | NSN 5331-00-248-3848
Demand History | NSN 5331-00-248-3848
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5331-00-248-3848 | 2024-08-241 | 50 | Taiwan |
| 5331-00-248-3848 | 2024-04-99 | 3572 | DIBBS |
| 5331-00-248-3848 | 2024-03-88 | 3572 | DIBBS |
| MS29513018 | 2023-09-248 | 1 | United States |
| MS29513-018 | 2023-02-36 | 100 | Argentina |
| 5331-00-248-3848 | 2021-01-07 | 4546 | DIBBS |
| 18 | 2020-12-353 | 0 | |
| 5331-00-248-3848 | 2020-11-321 | 1 | DIBBS-RFPs |
| MS29513018 | 2020-11-315 | 48 | United States |
| 5331-00-248-3848 | 2019-05-139 | 117 | United States |
| 5331-00-248-3848 | 2016-05-144 | 4455 | DIBBS |
| 5331-00-248-3848 | 2016-05-136 | 4455 | DIBBS |
| 5331-00-248-3848 | 2013-10-288 | 5803 | DIBBS |
| 1793018 | 2010-05-130 | 500 | IE |
Cross Reference | NSN 5331-00-248-3848
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00518 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 00520 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 00718 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 01055 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 018-C-69 | 76680 | FEDERAL-MOGUL CORP CHASSIS PRODUCTS DIV |
| 031640 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| 1793-018 | 91265 | PARKER-HANNIFIN, CORPORATION DBA TECHSEAL DIVISION |
| 18,77X1,78SR822A60A | F0229 | LE JOINT FRANCAIS |
| 18,77X1,78SR822A60A | FB011 | AERO STOCK |
| 2601730-22 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 2661058B018 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 4-2605SB16A | F0553 | ZODIAC AEROTECHNICS |
| 451-7531PC7 | 09647 | AQUA-CHEM INC. |
| 457-60-018 | 77308 | PARCO INC. |
| 7866-018 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| 892-7926 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AJ60-11 | F0422 | ZODIAC - INTERTECHNIQUE FUEL &INERTING SYSTEMS |
| I16450SR822A60 | F0229 | LE JOINT FRANCAIS |
| MS29513-018 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS29513-018 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS29513-018 | F0229 | LE JOINT FRANCAIS |
| MS29513-018ES | H2313 | ERIKS B.V. |
| MS29513-18 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| R01877X178AD016 | F6117 | DASSAULT AVIATION |
| SR18SR822A60 | F0229 | LE JOINT FRANCAIS |
| WB178A01877EA3A | F8300 | CIMD (CENTRE D'IDENTIFICATION DESMATERIELS DE LA DEFENSE) |
| WB178A01877EANA | F8300 | CIMD (CENTRE D'IDENTIFICATION DESMATERIELS DE LA DEFENSE) |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5331-00-248-3848
Technical Data | NSN 5331-00-248-3848
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR |
| CENTER HOLE DIAMETER | 0.734 INCHES MINIMUM AND 0.744 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.067 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5331-00-248-3848
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-00-248-3848
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
