NSN 5331-00-250-0224 MS29513, MS29513020, MS29513-020

Product Details | O-RING

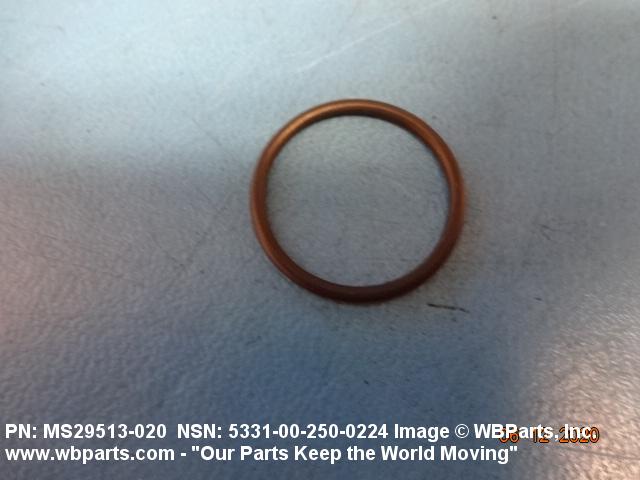

5331-00-250-0224 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.

Part Alternates: MS29513, MS29513020, MS29513-020, MS29513020ES, MS29513-020ES, MS2951320, MS29513-20, MPA957637A12, MPA9576-37A12, A020SR82260, A-020SR822-60, A3210369, A3210-369, C69020, C-69-020, SR822A60, SR-822A-60, SR822A60020, SR-822A-60-020, PRP0207866, PRP020-7866, PRP56802045760, PRP-568-020-457-60, PX1775020, PX-1775-020, RT25365020, RT253-65-020, E3210369, E3210-369, GHN1009520, GHN10095-20 , GS570EM020, 560H13631, 560H1-3631, 60P31020, 60-P-31-020, 700138, 72570020, 725-70-020, 7866, 7866020, 7866-020, 902235, 93496, 934-96, 0207866, 020-7866, 020C69, 020-C-69, 10V60141020, 10V60-141-020, 1190476, 119047-6, 1793, 1793020, 1793-020, 2-020 N602-70, 2020N60270, 2552063-25, 2661058B020, 2710806PC62, 29077866, 2907786-6, 2MV11A16, 3014529, 45760, 457-60, 45760020, 457-60-020, 4576020, 457-60-20, 5130-524-070-70 8, 51320, 513-20, 5331-00-250-0224, 00-250-0224, 5330002500224 , 5331002500224, 5130524070708, 255206325, 002500224

Hardware and Abrasives | O-Ring

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-250-0224	47946 ( O-RING )

Drawings & Photos | NSN 5331-00-250-0224

Part Number	Request Date	QTY	Origin
MS29513020	2025-08-217	500	United States
MS29513020	2024-11-320	10	US
MS29513020	2023-09-248	1	United States
5331-00-250-0224	2023-02-44	5389	DIBBS
5331-00-250-0224	2023-02-33	5389	DIBBS
MS2951320	2022-11-313	100	IN
MS29513020	2022-07-202	12	PT
5331-00-250-0224	2018-09-260	29375	DIBBS
MS29513020	2018-09-250	25	EE
5331-00-250-0224	2018-03-70	6039	DIBBS
5331-00-250-0224	2017-10-295	8093	DIBBS
5331-00-250-0224	2017-05-136	9615	DIBBS
5331-00-250-0224	2017-05-128	9615	DIBBS
5331-00-250-0224	2017-02-34	7711	DIBBS
5331-00-250-0224	2017-01-04	24	US
5331-00-250-0224	2016-09-257	4570	DIBBS
MS29513	2016-08-225	10	US
MS29513020	2016-07-210	20	US
5331-00-250-0224	2016-06-181	7711	DIBBS
MS29513020	2015-11-306	1	US
MS29513	2013-08-229	386	Canada
MS29513020	2012-05-122	200	ID
5331-00-250-0224	2012-04-114	1	MANUAL
MS29513-020	2012-04-114	1	Taiwan
MS29513-20	2012-03-75	25	United States
5331-00-250-0224	2011-09-265	4	CO
5331-00-250-0224	2010-06-173	10	US
MS29513	2010-06-166	1	Australia
5331-00-250-0224	2009-07-201	17600	DIBBS
5331-00-250-0224	2009-06-163	13867	DIBBS
MS29513020	2009-03-84	4	US
5331-00-250-0224	2008-09-248	7378	DIBBS
5331-00-250-0224	2008-09-247	7378	DIBBS
5331-00-250-0224	2008-01-09	10	Sri Lanka

Cross Reference | NSN 5331-00-250-0224

Part Number	Cage Code	Manufacturer
020-7866	25184	PARKER HANNIFIN CORPORATION DIV O-RING DIVISION
020-C-69	80266	AP PARTS CO INDUSTRIAL SALES DIV
10V60-141-020	73277	HOUGHTON INTERNATIONAL INC.
119047-6	01400	UNITED CORP THE
1793	91265	PARKER-HANNIFIN, CORPORATION DBA TECHSEAL DIVISION
1793-020	91265	PARKER-HANNIFIN, CORPORATION DBA TECHSEAL DIVISION
2-020 N602-70	02697	PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER
2-020 N602-70	83259	PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS
2-020 N602-70	C0308	O-RING DIVISION EUROPE
2552063-25	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
2661058B020	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
2710806PC62	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
2907786-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2MV11A16	98182	H.E.F. CORPORATION
3014529	001JK	EMBRAER S/A
3014529	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
457-60	77308	PARCO INC.
457-60-020	77308	PARCO INC.
457-60-20	77308	PARCO INC.
513-20	91265	PARKER-HANNIFIN, CORPORATION DBA TECHSEAL DIVISION
5130-524-070-70 8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5330002500224	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
560H1-3631	75377	KURZ & ROOT GENERATOR COMPANY LLC
60-P-31-020	28486	WEST AMERICAN RUBBER CO EXTRUDE PRODUCTS DIV
700138	57733	STEWART-WARNER CORPORATION
700138	77260	PIERCE CO INC THE SUB OF AVIS INDUSTRIAL CORP
700138	78385	MEGGITT (TROY), INC. DIV MEGGITT PLC
725-70-020	96879	TROSTEL ALBERT PACKING LTD
7866	25184	PARKER HANNIFIN CORPORATION DIV O-RING DIVISION
7866-020	25184	PARKER HANNIFIN CORPORATION DIV O-RING DIVISION
902235	34228	L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO
934-96	80049	DEPARTMENT OF THE AIR FORCE
A-020SR822-60	95272	STILLMAN SEAL CORPORATION
A3210-369	00462	GOODRICH CORPORATION DBA TRW LUCAS AEROSPACE
C-69-020	01212	FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT
E3210-369	82402	TRIUMPH GEAR SYSTEMS, INC. DBA TRIUMPH GEAR SYSTEMS- PARK CITY
GS570EM020	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MPA9576-37A12	91340	MET-PRO CORPORATION
MS29513	78385	MEGGITT (TROY), INC. DIV MEGGITT PLC
MS29513-020	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS29513-020	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS29513-020	F0229	LE JOINT FRANCAIS
MS29513-020ES	H2313	ERIKS B.V.
MS29513-20	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
PRP-568-020-457-60	77308	PARCO INC.
PRP020-7866	25184	PARKER HANNIFIN CORPORATION DIV O-RING DIVISION
PX-1775-020	70106	ACUSHNET RUBBER COMPANY, INC. DBA PRECIX
RT253-65-020	77969	RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD
RT253-65-020	98159	RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD
SR-822A-60	95272	STILLMAN SEAL CORPORATION
SR-822A-60-020	95272	STILLMAN SEAL CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5331-00-250-0224

Compare

Related Products | NSN 5331-00-250-0224

5331-00-250-0225, 5331-00-250-0226, 5331-00-250-0227, 5331-00-250-0228, 5331-00-250-0229

Technical Data | NSN 5331-00-250-0224

Characteristic	Specifications
MATERIAL	RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR

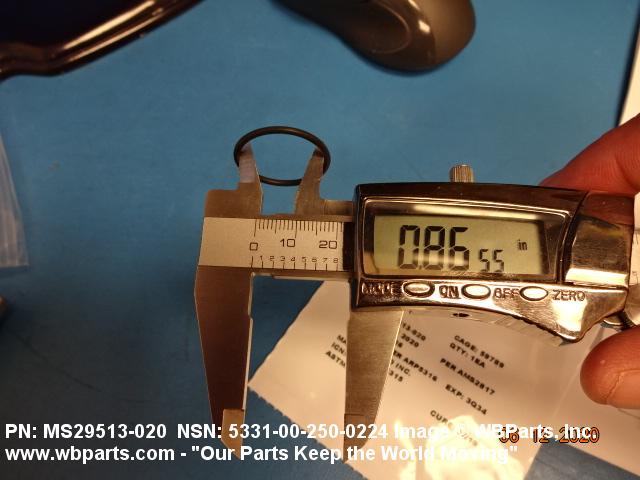

CENTER HOLE DIAMETER	0.858 INCHES MINIMUM AND 0.870 INCHES MAXIMUM

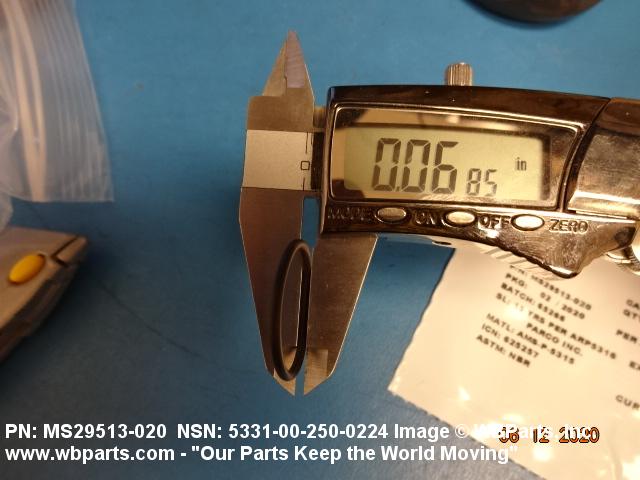

CROSS-SECTIONAL HEIGHT	0.067 INCHES MINIMUM AND 0.073 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5331-00-250-0224

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5331-00-250-0224

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
