NSN 5331-00-251-9376 MS29513241, MS29513-241, AS29513241
Product Details | O-RING
5331-00-251-9376 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: MS29513241, MS29513-241, AS29513241, AS29513-241, AS568241N70R, AS568-241-N70R, C69241, C-69-241, SR822A60241, SR-822A-60-241, PRP56824145760, PRP568-241-457-60, PX1775241, PX1775-241, RT25365241, RT253-65-241, GS570EM241, 60P31241, 60-P-31-241, 72570241, 725-70-241, 7866241, 7866-241, 109A903180, 10V60141241, 10V60-141-241, 1793241, 1793-241, 2-241 N602-70, 2241N60270, 241C69, 241-C-69, 45760241, 457-60-241, 5331-00-251-9376, 00-251-9376, 5331002519376, 002519376
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-251-9376 | 47946 ( O-RING ) |

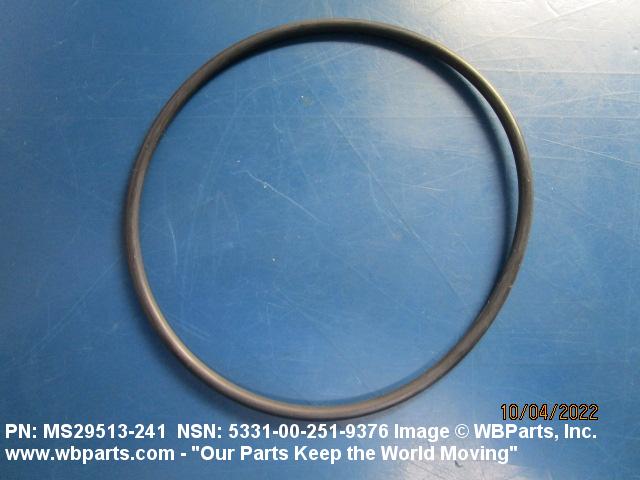

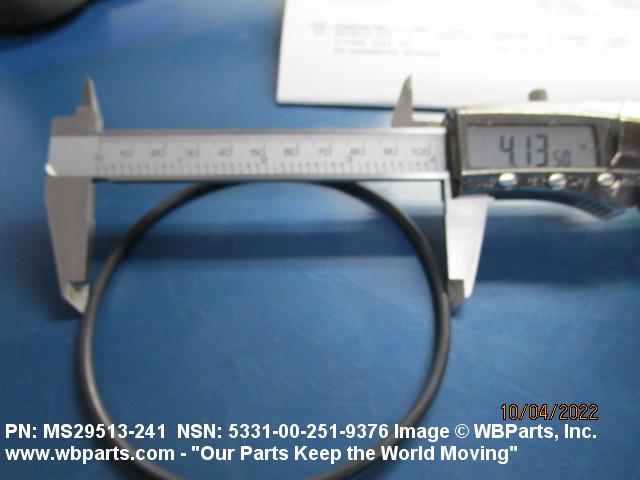

Drawings & Photos | NSN 5331-00-251-9376
Demand History | NSN 5331-00-251-9376
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5331-00-251-9376 | 2025-02-54 | 778 | DIBBS |
| 5331-00-251-9376 | 2024-12-344 | 1090 | DIBBS |
| 5331-00-251-9376 | 2024-07-213 | 1512 | DIBBS |
| 5331-00-251-9376 | 2024-05-148 | 3541 | DIBBS |
| 5331-00-251-9376 | 2023-05-137 | 2139 | DIBBS |
| 5331-00-251-9376 | 2022-08-238 | 89 | Taiwan |
| 5331-00-251-9376 | 2022-03-76 | 89 | Taiwan |
| 5331-00-251-9376 | 2019-08-231 | 2335 | DIBBS |
| 5331-00-251-9376 | 2018-10-277 | 2253 | DIBBS |
| 5331-00-251-9376 | 2018-06-178 | 3000 | DIBBS |
| 5331-00-251-9376 | 2018-04-91 | 2439 | DIBBS |
| 5331-00-251-9376 | 2017-11-319 | 7 | United States |
| 5331-00-251-9376 | 2017-04-106 | 3758 | DIBBS |
| 5331-00-251-9376 | 2017-02-33 | 10 | us |
| 5331-00-251-9376 | 2016-10-297 | 2098 | DIBBS |
| 5331-00-251-9376 | 2014-09-271 | 4039 | DIBBS |
| MS29513241 | 2012-11-334 | 1 | PH |
| 5331-00-251-9376 | 2011-12-348 | 6000 | DIBBS |
| 5331-00-251-9376 | 2011-06-157 | 4000 | DIBBS |
| 5331-00-251-9376 | 2010-10-287 | 3 | US |
| 5331-00-251-9376 | 2010-04-118 | 4500 | DIBBS |
| MS29513241 | 2008-09-248 | 50 | Italy |
Cross Reference | NSN 5331-00-251-9376
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 109A903180 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 10V60-141-241 | 73277 | HOUGHTON INTERNATIONAL INC. |
| 1793-241 | 91265 | PARKER-HANNIFIN, CORPORATION DBA TECHSEAL DIVISION |
| 2-241 N602-70 | 02692 | DOLLY MFG CORP |
| 241-C-69 | 76680 | FEDERAL-MOGUL CORP CHASSIS PRODUCTS DIV |
| 241-C-69 | 80266 | AP PARTS CO INDUSTRIAL SALES DIV |
| 457-60-241 | 77308 | PARCO INC. |
| 5330002519376 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 60-P-31-241 | 28486 | WEST AMERICAN RUBBER CO EXTRUDE PRODUCTS DIV |
| 725-70-241 | 96879 | TROSTEL ALBERT PACKING LTD |
| 7866-241 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| AS29513-241 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS568-241-N70R | 1CN74 | FREUDENBERG-NOK GENERAL PARTNERSHIP DBA INTERNATIONAL SEAL COMPANY |
| C-69-241 | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| GS570EM241 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MS29513-241 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS29513-241 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PRP568-241-457-60 | 77308 | PARCO INC. |
| PX1775-241 | 70106 | ACUSHNET RUBBER COMPANY, INC. DBA PRECIX |
| RT253-65-241 | 77969 | RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD |
| RT253-65-241 | 98159 | RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD |
| SR-822A-60-241 | 95272 | STILLMAN SEAL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5331-00-251-9376
Technical Data | NSN 5331-00-251-9376
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR |

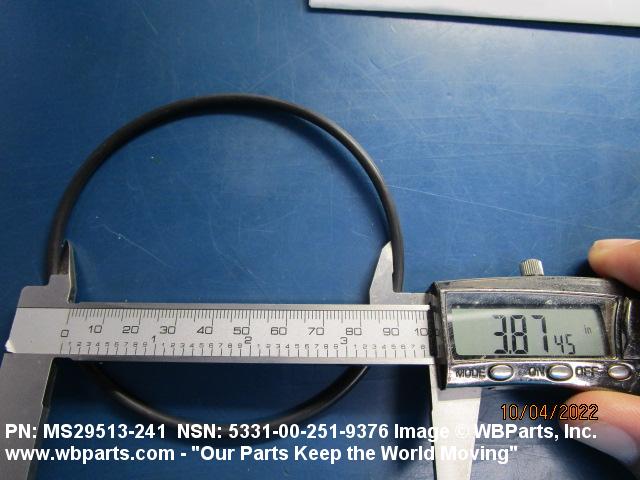

| CENTER HOLE DIAMETER | 3.844 INCHES MINIMUM AND 3.874 INCHES MAXIMUM |

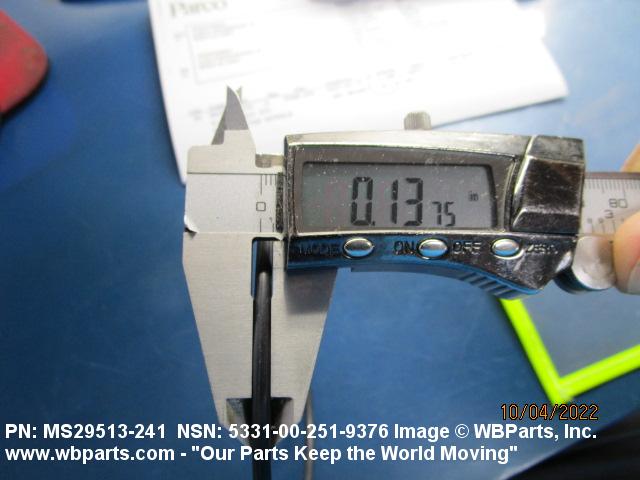

| CROSS-SECTIONAL HEIGHT | 0.135 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5331-00-251-9376
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
