NSN 5331-00-279-9392 M25988/1-329, M259881329, CVC4218329
Product Details | O-RING
5331-00-279-9392 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: M25988/1-329, M259881329, CVC4218329, CVC4218-329, MILR25988, 5331-00-279-9392, 00-279-9392, 5331002799392, 002799392
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 AUG 1973 | 00-279-9392 | 47946 ( O-RING ) |
Drawings & Photos | NSN 5331-00-279-9392
Demand History | NSN 5331-00-279-9392
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5331-00-279-9392 | 2025-05-140 | 1986 | DIBBS |
| 5331-00-279-9392 | 2025-05-121 | 1076 | DIBBS |
| 5331-00-279-9392 | 2025-04-106 | 1076 | DIBBS |
| 5331-00-279-9392 | 2025-03-82 | 1986 | DIBBS |
| 5331-00-279-9392 | 2025-02-37 | 718 | DIBBS |
| 5331-00-279-9392 | 2024-01-16 | 15920 | DIBBS |
| 5331-00-279-9392 | 2024-01-04 | 15920 | DIBBS |
| 5331-00-279-9392 | 2023-11-334 | 861 | DIBBS |
| 5331-00-279-9392 | 2023-11-319 | 861 | DIBBS |
| 5331-00-279-9392 | 2023-10-304 | 861 | DIBBS |
| 5331-00-279-9392 | 2022-12-336 | 11948 | DIBBS |
| 5331-00-279-9392 | 2022-11-325 | 11948 | DIBBS |
| 5331-00-279-9392 | 2022-11-312 | 11948 | DIBBS |
| 5331-00-279-9392 | 2022-11-311 | 3769 | DIBBS |
| 5331-00-279-9392 | 2022-10-300 | 3769 | DIBBS |
| 5331-00-279-9392 | 2022-04-109 | 6700 | DIBBS |
| 5331-00-279-9392 | 2022-04-108 | 8180 | DIBBS |
| 5331-00-279-9392 | 2022-04-97 | 8180 | DIBBS |
| 5331-00-279-9392 | 2022-04-94 | 6700 | DIBBS |
| 5331-00-279-9392 | 2022-03-87 | 4626 | DIBBS |
| 5331-00-279-9392 | 2022-03-76 | 4626 | DIBBS |
| 5331-00-279-9392 | 2021-11-322 | 2217 | DIBBS |
| 5331-00-279-9392 | 2021-02-56 | 11098 | DIBBS |
| 5331-00-279-9392 | 2020-06-167 | 7503 | DIBBS |
| 5331-00-279-9392 | 2020-05-141 | 9380 | DIBBS |
| 5331-00-279-9392 | 2020-05-126 | 9380 | DIBBS |
| 5331-00-279-9392 | 2020-01-13 | 6843 | DIBBS |
| 5331-00-279-9392 | 2019-12-335 | 2713 | DIBBS |
| 5331-00-279-9392 | 2019-11-307 | 1626 | DIBBS |
| 5331-00-279-9392 | 2019-06-155 | 5 | US |
| 5331-00-279-9392 | 2019-04-108 | 1 | DIBBS-RFPs |
| 5331-00-279-9392 | 2018-01-25 | 100 | SG |
| MILR25988 | 2016-03-81 | 28 | United States |
| MILR25988 | 2016-03-81 | 28 | United States |
| MILR25988 | 2016-03-81 | 55 | United States |
| MILR25988 | 2016-03-81 | 15 | United States |
| MILR25988 | 2016-03-81 | 100 | United States |
| M25988/1-329 | 2016-01-18 | 10 | United States |
| M259881329 | 2015-05-131 | 60 | United States |
| 5331-00-279-9392 | 2015-04-103 | 3261 | DIBBS |
| 5331-00-279-9392 | 2013-01-18 | 6083 | DIBBS |
| MILR25988 | 2009-04-106 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5331-00-279-9392
Related Products | NSN 5331-00-279-9392
Technical Data | NSN 5331-00-279-9392
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROSILICONE CLASS FQ |

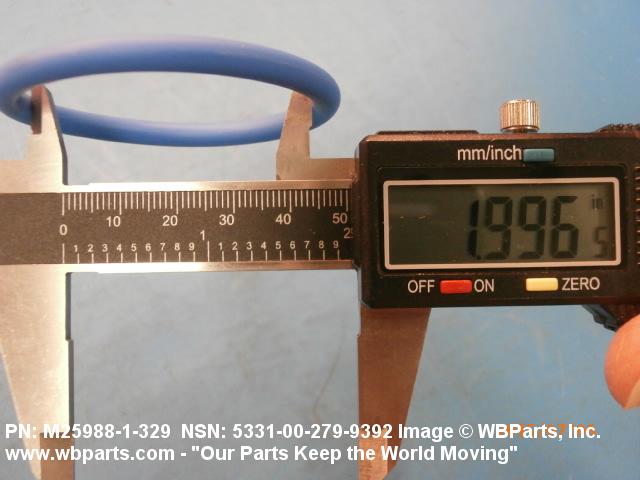

| CENTER HOLE DIAMETER | 1.957 INCHES MINIMUM AND 1.993 INCHES MAXIMUM |

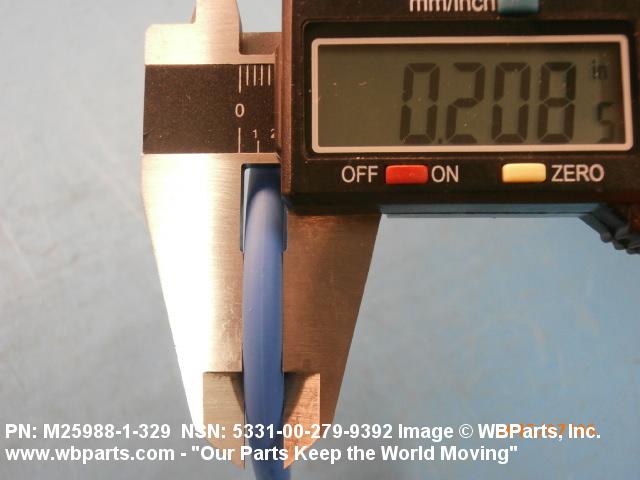

| CROSS-SECTIONAL HEIGHT | 0.205 INCHES MINIMUM AND 0.215 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR25988 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M25988/1-329 |
Restrictions/Controls & Freight Information | NSN 5331-00-279-9392
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-00-279-9392
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
