NSN 5331-00-444-0850 AS568125, AS568-125, ASC1314774
Product Details | O-RING
5331-00-444-0850 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: AS568125, AS568-125, ASC1314774, B 2575.146.578, B2575146578, D2000, PL2640NO7, RWS568125, RWS-568-125, 2125, 2-125, 2-125 N674-70, 2125N10170, 2-125N101-70, 2125N674, 2-125N674, 2125N67470, 2-125-N674-70, 2-125N674-70, 51125, 51-125, 000125EB, 938273252U01, 95000125, 95000-125, 5331-00-444-0850, 00-444-0850, 5331004440850, 004440850
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 DEC 1970 | 00-444-0850 | 47946 ( O-RING ) |

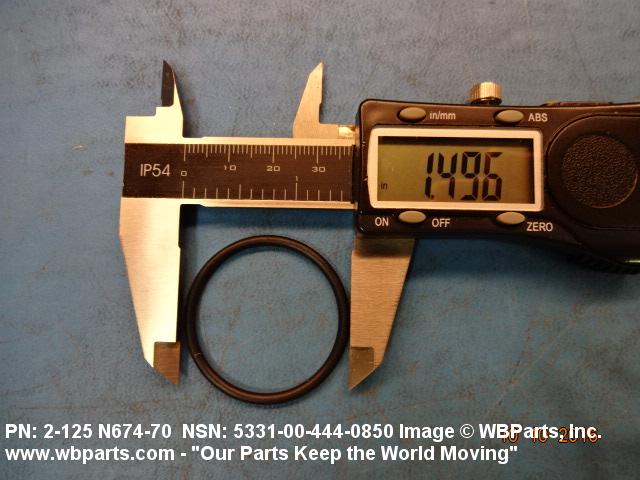

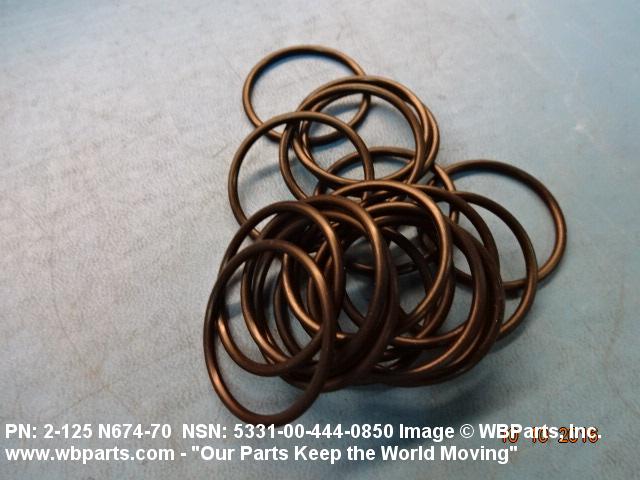

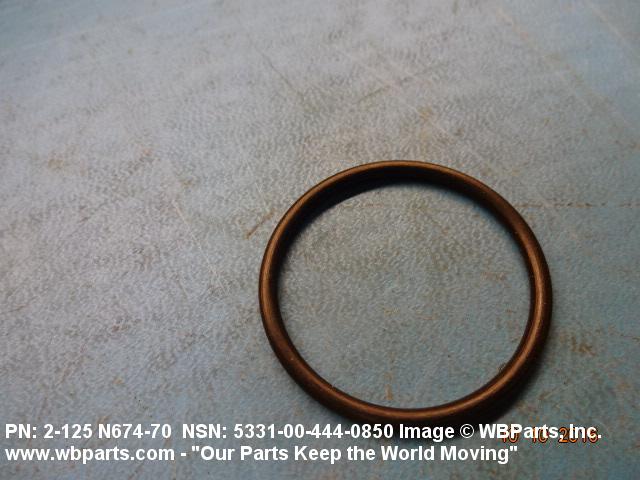

Drawings & Photos | NSN 5331-00-444-0850
Demand History | NSN 5331-00-444-0850
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5331-00-444-0850 | 2024-08-232 | 1786 | DIBBS |
| 5331-00-444-0850 | 2023-09-250 | 1050 | DIBBS |
| 5331-00-444-0850 | 2023-07-191 | 226 | DIBBS |
| 5331-00-444-0850 | 2016-09-273 | 20 | United States |
| 5331-00-444-0850 | 2013-06-156 | 10 | United States |
| 2-125 | 2012-05-129 | 1 | IT |
| 5331-00-444-0850 | 2012-05-129 | 1 | MANUAL |
Cross Reference | NSN 5331-00-444-0850
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000125EB | 99565 | ADMIRAL VALVE, LLC DBA CPV MANUFACTURING |
| 1N141300054 | A2309 | WHITEHEAD SISTEMI SUBACQUEI SPA |
| 2-125 | 38490 | MANITEX LIFTKING, ULC |
| 2-125 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2-125 N674-70 | C0308 | O-RING DIVISION EUROPE |
| 2-125-N674-70 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2-125N101-70 | 38490 | MANITEX LIFTKING, ULC |
| 2-125N674 | 63600 | CURTISS-WRIGHT FLOW CONTROL SERVICE CORPORATION |
| 2-125N674-70 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 51-125 | 23127 | STANDARD PNEUMATIC ENGINEERING CO |
| 938273252U01 | 0VP52 | FINCANTIERI MARINE SYSTEMS NORTH AMERICA, INC. |
| 938273252U01 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 95000-125 | 50988 | DYNEX/RIVETT CORP POWER UNITS AND SYSTEMS |
| AS568-125 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS568-125 | 99565 | ADMIRAL VALVE, LLC DBA CPV MANUFACTURING |
| ASC1314774 | Z4779 | ASC PTY LTD |
| B 2575.146.578 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| D2000 | 81346 | AMERICAN SOCIETY FOR TESTING AND MATERIALS |
| PL2640NO7 | 99565 | ADMIRAL VALVE, LLC DBA CPV MANUFACTURING |
| RWS-568-125 | 35795 | LESLIE CONTROLS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5331-00-444-0850
Technical Data | NSN 5331-00-444-0850
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR |

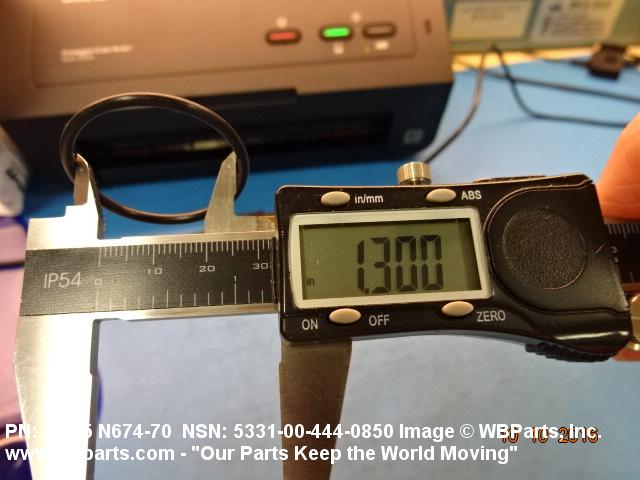

| CENTER HOLE DIAMETER | 1.299 INCHES NOMINAL |

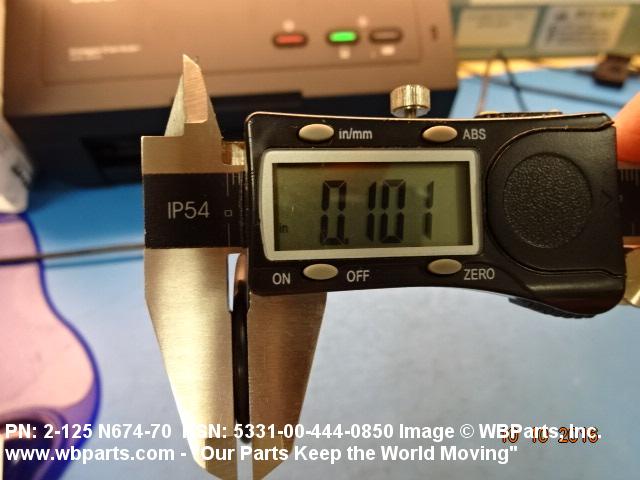

| CROSS-SECTIONAL HEIGHT | 0.100 INCHES MINIMUM AND 0.106 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5331-00-444-0850
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
