NSN 5331-00-641-8942 MS2951272, MS-2951-272, MS29513272

Product Details | O-RING

5331-00-641-8942 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.

Part Alternates: MS2951272, MS-2951-272, MS29513272, MS29513-272, AS568-446MIL-P- 5315, AS568446MILP5315, C69272, C-69-272, S8469F175, SR822A60272, SR-822A-60-272, MILP5315, PRP56827245760, PRP568-272-457-60, PRP5684466, PRP568-446-6-, PX1775272, PX1775-272, PX1775446, PX1775-446, RT25365272, RT253-65-272, 60P31272, 60-P-31-272, 60P31446, 60-P-31-446, 72570272, 725-70-272, 7866272, 7866-272, 90950175, 909-50175, 10V60141272, 10V60-141-272, 1793272, 1793-272, 2272, 2-272, 2-272 N602-70, 2272N60270, 2446N60270, 2-446N602-70, 45760272, 457-60-272, 51-056-H PIECE 40, 51056HPIECE40, 5331-00-641-8942, 00-641-8942, 5330006418942, 5331006418942, 006418942

Hardware and Abrasives | O-Ring

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-641-8942	47946 ( O-RING )

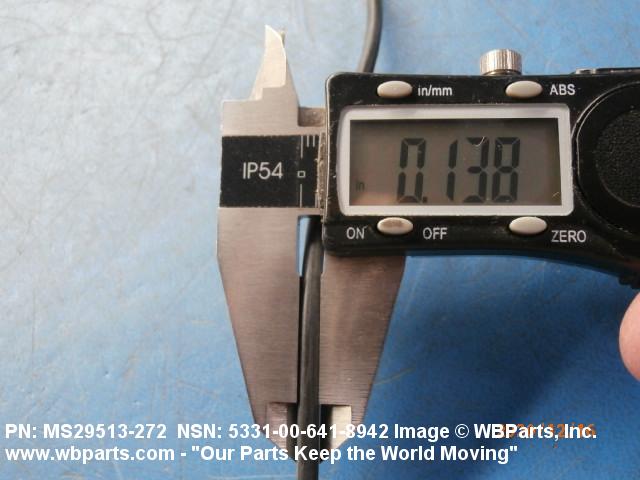

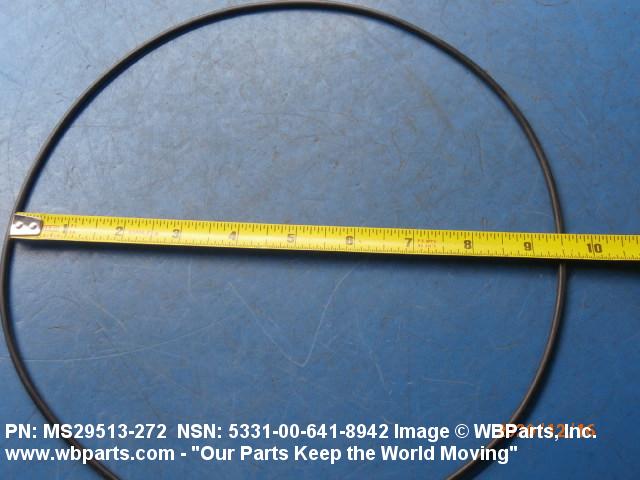

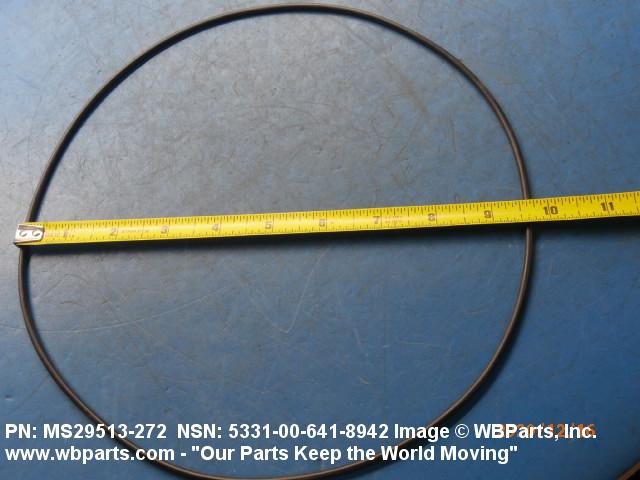

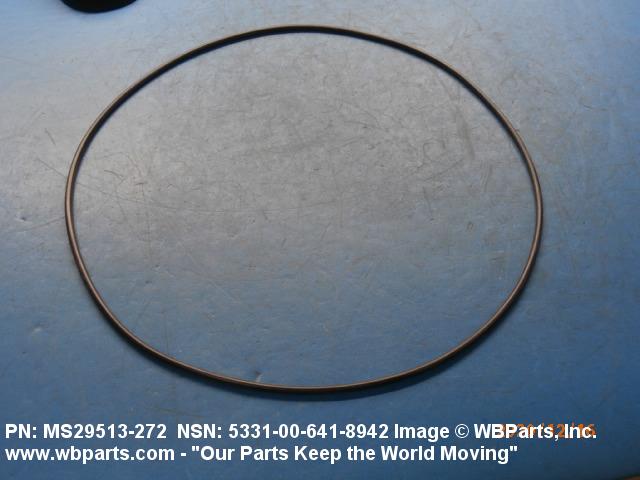

Drawings & Photos | NSN 5331-00-641-8942

Part Number	Request Date	QTY	Origin
MS29513272	2025-07-188	100	United States
MS29513272	2025-06-164	200	United States
5331-00-641-8942	2024-02-60	189	DIBBS
5331-00-641-8942	2023-10-278	125	DIBBS
5331-00-641-8942	2020-12-356	300	DIBBS
MS29513272	2020-12-344	25	United States
5331-00-641-8942	2020-12-337	318	DIBBS
5331-00-641-8942	2020-11-321	1	DIBBS-RFPs
5331-00-641-8942	2020-10-282	318	DIBBS
5331-00-641-8942	2018-01-21	270	DIBBS
5331-00-641-8942	2017-08-227	346	DIBBS
MS29513272	2015-06-181	1	US
5331-00-641-8942	2012-11-319	700	DIBBS
5331-00-641-8942	2012-08-244	450	DIBBS
2272	2012-07-205	1	United States
5331-00-641-8942	2012-06-171	20	United States
5331-00-641-8942	2010-12-361	18	US
MS29513272	2010-04-105	50	United States
5331-00-641-8942	2008-07-203	476	DIBBS

Cross Reference | NSN 5331-00-641-8942

Part Number	Cage Code	Manufacturer
10V60-141-272	73277	HOUGHTON INTERNATIONAL INC.
1793-272	91265	PARKER-HANNIFIN, CORPORATION DBA TECHSEAL DIVISION
2-272	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2-272 N602-70	02692	DOLLY MFG CORP
2-272 N602-70	02697	PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER
2-446N602-70	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
457-60-272	77308	PARCO INC.
51-056-H PIECE 40	55102	CONTINENTAL EMSCO CO SKAGIT PRODUCTS DIV
5330006418942	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
60-P-31-272	28486	WEST AMERICAN RUBBER CO EXTRUDE PRODUCTS DIV
60-P-31-446	28486	WEST AMERICAN RUBBER CO EXTRUDE PRODUCTS DIV
725-70-272	96879	TROSTEL ALBERT PACKING LTD
7866-272	25184	PARKER HANNIFIN CORPORATION DIV O-RING DIVISION
909-50175	25184	PARKER HANNIFIN CORPORATION DIV O-RING DIVISION
AS568-446MIL-P- 5315	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
C-69-272	01212	FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT
MILP5315	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS-2951-272	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS29513-272	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS29513-272	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PRP568-272-457-60	77308	PARCO INC.
PRP568-446-6-	77308	PARCO INC.
PX1775-272	70106	ACUSHNET RUBBER COMPANY, INC. DBA PRECIX
PX1775-446	70106	ACUSHNET RUBBER COMPANY, INC. DBA PRECIX
RT253-65-272	77969	RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD
RT253-65-272	98159	RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD
S8469F175	59364	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
S8469F175	70210	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
S8469F175	72599	ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO
S8469F175	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
SR-822A-60-272	95272	STILLMAN SEAL CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5331-00-641-8942

Compare

Related Products | NSN 5331-00-641-8942

5331-00-646-6777, 5331-00-646-7457, 5331-00-646-8871, 5331-00-646-8978, 5331-00-647-0899

Technical Data | NSN 5331-00-641-8942

Characteristic	Specifications
MATERIAL	RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR
CENTER HOLE DIAMETER	9.454 INCHES MINIMUM AND 9.514 INCHES MAXIMUM
CROSS-SECTIONAL HEIGHT	0.135 INCHES MINIMUM AND 0.143 INCHES MAXIMUM
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILP5315

Restrictions/Controls & Freight Information | NSN 5331-00-641-8942

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Y	180 months
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5331-00-641-8942

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Inventory Account Codes	A	Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required.
Inventory Account Codes	0	Item not controlled by serial number.
Special Material Content Codes	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	ZNC	Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000
Agency	GP	U.S. Coast Guard
Service Organization	C	U.S. Coast Guard
Reparability	C
Acquisition Advice Codes	C	SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each
