NSN 5331-00-853-0246 S8990012, S8990-012, S899012
Product Details | O-RING

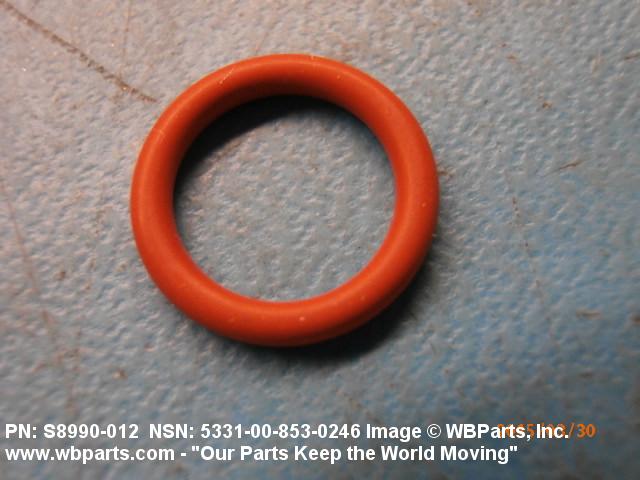

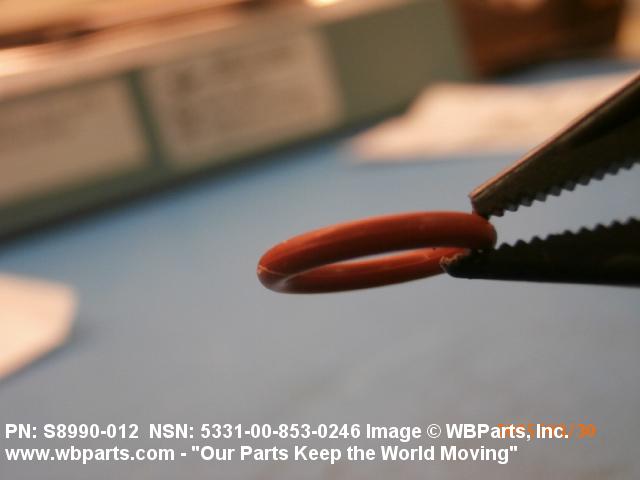

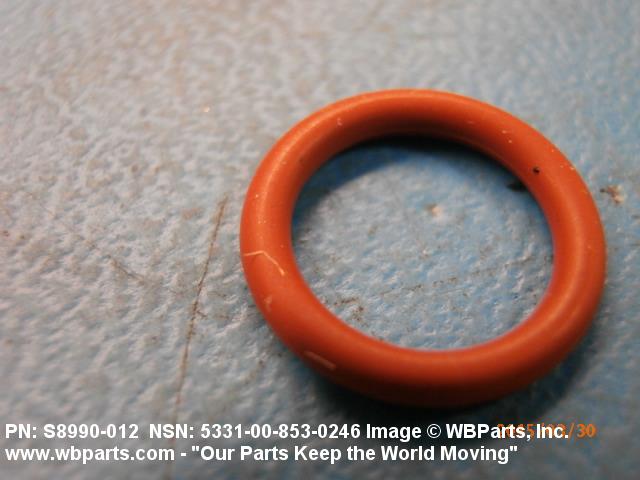

5331-00-853-0246 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: S8990012, S8990-012, S899012, S8990-12, S899012ES, S8990-12ES, 1149507, 114950-7, 2-012 S455-70, 2012S45570, 2-012S455-70, 5331-00-853-0246, 00-853-0246, 5331008530246, 008530246
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-853-0246 | 47946 ( O-RING ) |
Drawings & Photos | NSN 5331-00-853-0246
Demand History | NSN 5331-00-853-0246
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S8990012 | 2025-11-307 | 75 | United States |
| 5331-00-853-0246 | 2025-05-122 | 120 | United States |
| 5331-00-853-0246 | 2023-08-226 | 7556 | US |
| S8990-012 | 2023-07-186 | 7556 | DIBBS |
| S8990012 | 2021-07-202 | 189 | United States |
| 5331-00-853-0246 | 2021-04-103 | 37 | Taiwan |
| 5331-00-853-0246 | 2018-08-217 | 8311 | DIBBS |
| 5331-00-853-0246 | 2016-08-228 | 7008 | DIBBS |
| 5331-00-853-0246 | 2016-05-122 | 4109 | DIBBS |
| 5331-00-853-0246 | 2016-04-108 | 2028 | DIBBS |
| S8990012 | 2015-10-285 | 121 | US |
| S899012 | 2015-07-183 | 1 | US |
| S8990012 | 2015-02-56 | 3 | Germany |
| S8990012 | 2015-02-47 | 3 | Germany |
| 5331-00-853-0246 | 2013-05-129 | 15001 | DIBBS |
| S8990012 | 2012-11-314 | 2 | US |
| 5331-00-853-0246 | 2012-11-306 | 25001 | DIBBS |
| 5331-00-853-0246 | 2011-08-230 | 10000 | DIBBS |
| S8990012 | 2011-06-173 | 2 | US |
| S8990012 | 2010-12-341 | 5 | us |
| 5331-00-853-0246 | 2010-09-264 | 100 | Portugal |
| 5331-00-853-0246 | 2010-08-243 | 3 | United States |
| 5331-00-853-0246 | 2008-08-224 | 100 | Turkey |
| 5331-00-853-0246 | 2008-06-163 | 11000 | DIBBS |
Cross Reference | NSN 5331-00-853-0246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114950-7 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2-012 S455-70 | C0308 | O-RING DIVISION EUROPE |
| 2-012S455-70 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| S8990-012 | 02LU7 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8990-012 | 1RDZ1 | BE AEROSPACE CONSUMABLES MANAGEMENT DBA CONSUMABLES SOLUTIONS DIV |
| S8990-012 | 58457 | XETEX INC |
| S8990-012 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8990-012 | 59789 | KIRKHILL AIRCRAFT PARTS CO. DBA KAPCO |
| S8990-012 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8990-012 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| S8990-012 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8990-012 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| S8990-012 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| S8990-12 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8990-12ES | H2313 | ERIKS B.V. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5331-00-853-0246
Related Products | NSN 5331-00-853-0246
Technical Data | NSN 5331-00-853-0246
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC |

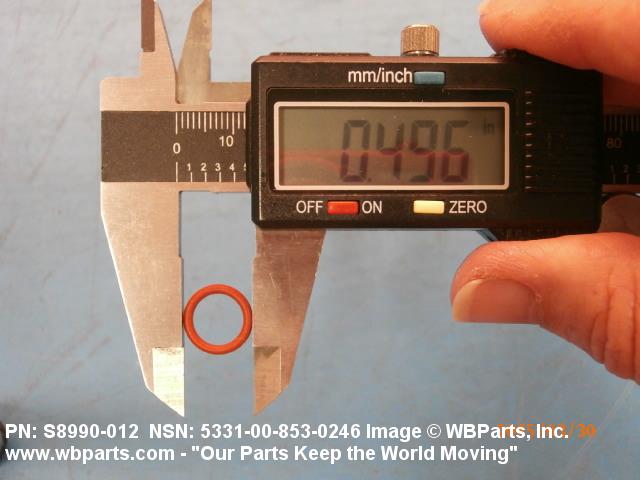

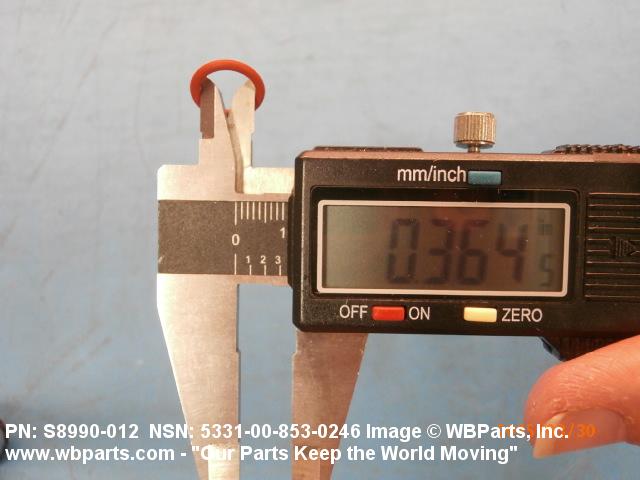

| CENTER HOLE DIAMETER | 0.348 INCHES MINIMUM AND 0.365 INCHES MAXIMUM |

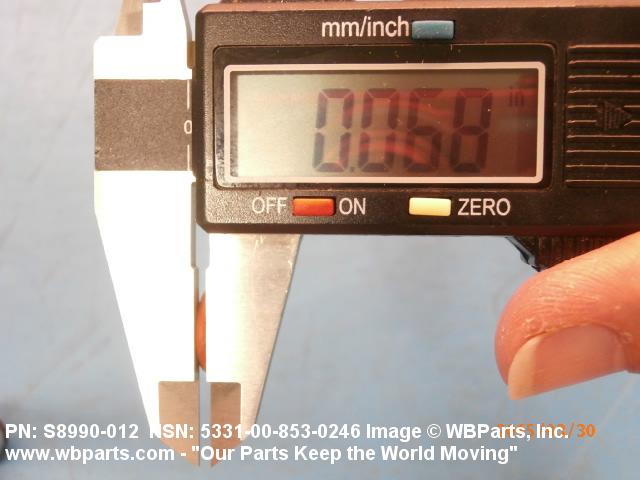

| CROSS-SECTIONAL HEIGHT | 0.065 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | S8990-012 |
Restrictions/Controls & Freight Information | NSN 5331-00-853-0246
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-00-853-0246
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
