NSN 5331-00-882-9172 MS9388012, MS9388-012, MS9388012ES
Product Details | O-RING
5331-00-882-9172 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: MS9388012, MS9388-012, MS9388012ES, MS9388-012ES, 367444, 5331-00-882-9172, 00-882-9172, 5330008829172, 5331008829172, 008829172
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 NOV 1967 | 00-882-9172 | 47946 ( O-RING ) |

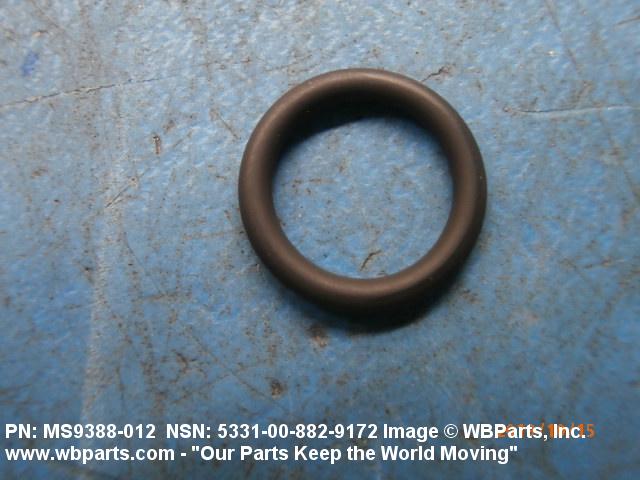

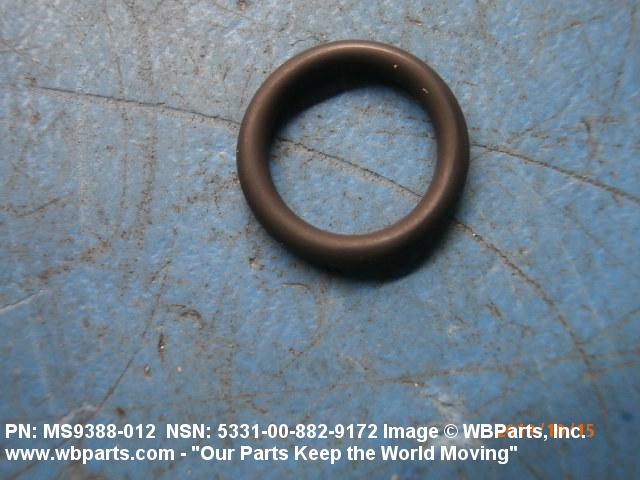

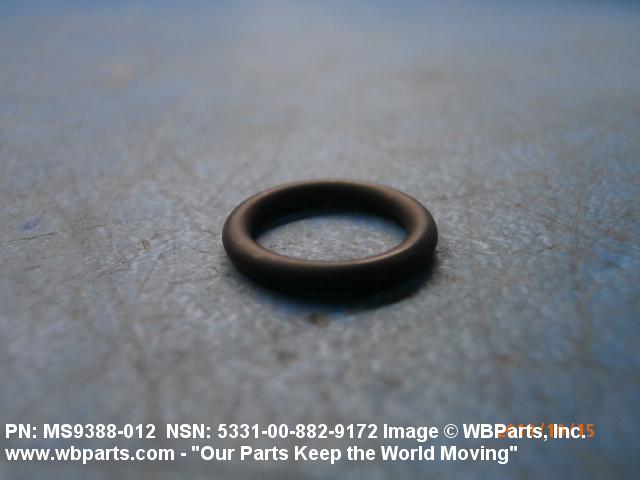

Drawings & Photos | NSN 5331-00-882-9172
Demand History | NSN 5331-00-882-9172
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5331-00-882-9172 | 2022-06-157 | 150 | United States |
| 5331-00-882-9172 | 2019-09-260 | 350 | United States |
| MS9388012 | 2019-08-218 | 1 | CO |
| MS9388012 | 2019-03-87 | 3 | United States |
| MS9388-012 | 2014-09-262 | 12 | US |
| MS9388-012 | 2014-09-262 | 12 | US |
| MS9388-012 | 2013-08-229 | 600 | Canada |
| MS9388-012 | 2012-10-282 | 4 | CL |
| MS9388012 | 2012-10-278 | 4 | CL |
| MS9388012 | 2012-05-128 | 20 | US |
| MS9388-012 | 2011-12-342 | 60 | CO |
| MS9388012 | 2011-02-49 | 4 | IN |
| MS9388012 | 2011-01-18 | 50 | United States |
| MS9388012 | 2010-11-322 | 50 | United States |
| 5331-00-882-9172 | 2010-03-84 | 24 | US |
| 5331-00-882-9172 | 2008-09-259 | 30 | Brazil |
| MS9388012 | 2008-02-50 | 10 | NO |
Cross Reference | NSN 5331-00-882-9172
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 367444 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 5330008829172 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| MS9388-012 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS9388-012 | F0229 | LE JOINT FRANCAIS |
| MS9388-012 | FB011 | AERO STOCK |
| MS9388-012ES | H2313 | ERIKS B.V. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5331-00-882-9172
Technical Data | NSN 5331-00-882-9172
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM |

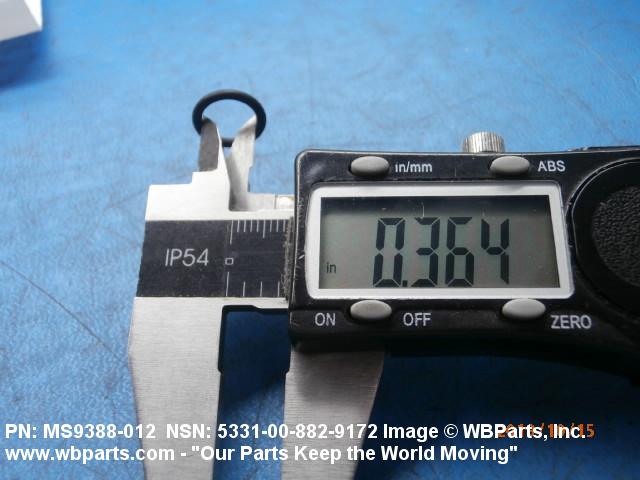

| CENTER HOLE DIAMETER | 0.362 INCHES NOMINAL |

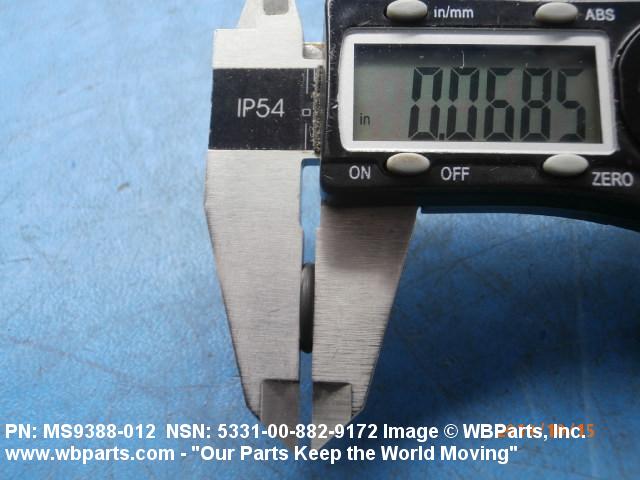

| CROSS-SECTIONAL HEIGHT | 0.070 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9388-012 |
Restrictions/Controls & Freight Information | NSN 5331-00-882-9172
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5331-00-882-9172
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
