NSN 5331-00-901-6194 MS9068237, MS9068-237, AS3582237
Product Details | O-RING
5331-00-901-6194 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: MS9068237, MS9068-237, AS3582237, AS3582-237, S0604 2-237, S06042237, 2-237 S604-70, 2237S60470, 475108, 4751-08, 5331-00-901-6194, 00-901-6194, 5331009016194, 009016194
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-901-6194 | 47946 ( O-RING ) |

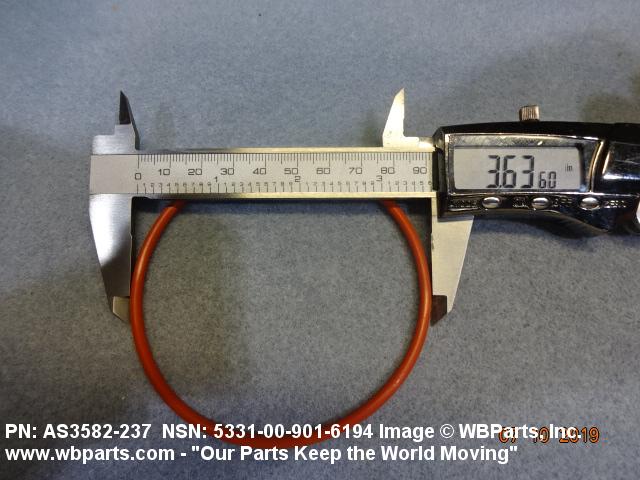

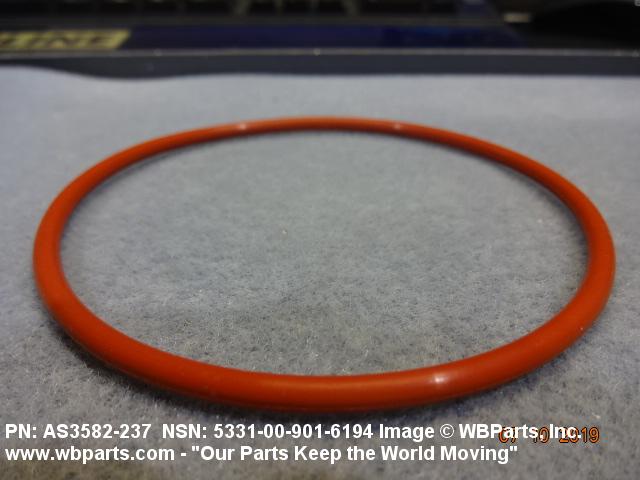

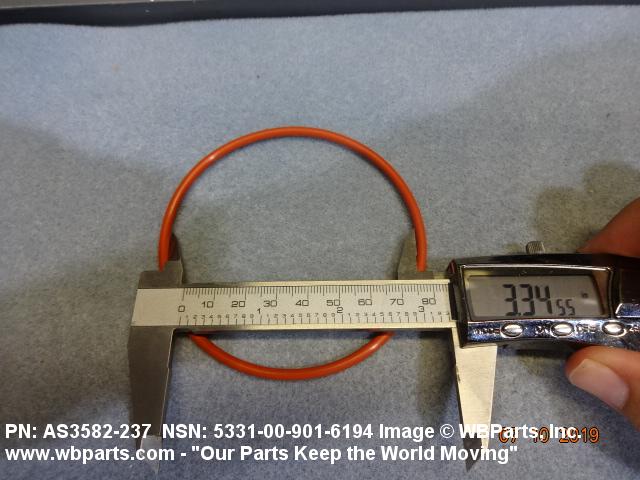

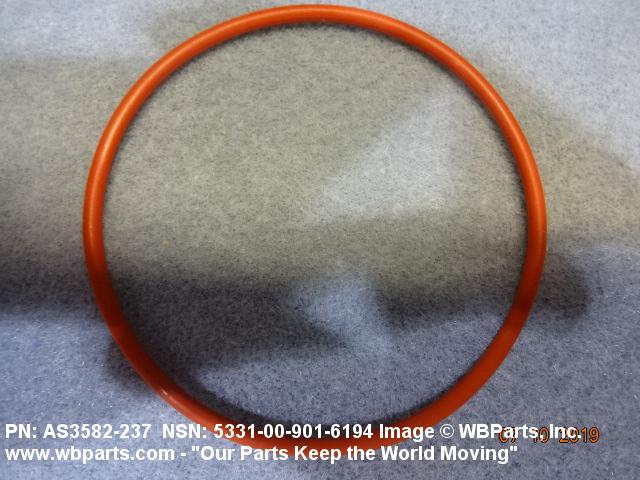

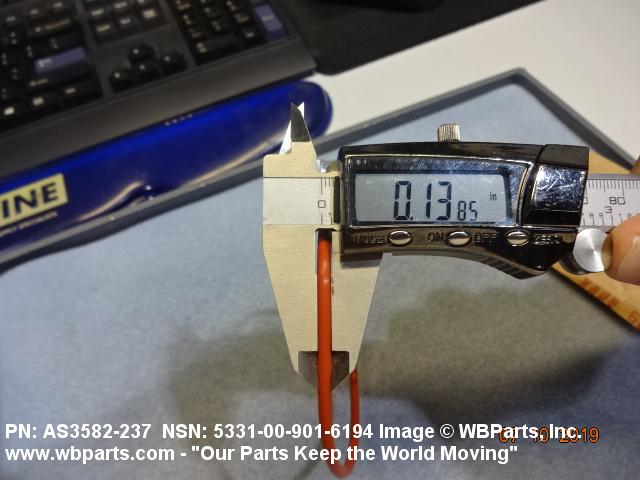

Drawings & Photos | NSN 5331-00-901-6194
Demand History | NSN 5331-00-901-6194
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5331-00-901-6194 | 2023-12-355 | 1500 | Singapore |
| 5331-00-901-6194 | 2023-12-347 | 1500 | Singapore |
| MS9068237 | 2020-09-267 | 1000 | United States |
| MS9068237 | 2020-05-125 | 3 | Russian Federation |
| AS3582237 | 2019-12-352 | 800 | United States |
| 5331-00-901-6194 | 2019-06-172 | 7135 | United States |
| 5331-00-901-6194 | 2019-06-156 | 7135 | DIBBS |
| 5331-00-901-6194 | 2017-02-36 | 5363 | DIBBS |
| 5331-00-901-6194 | 2016-03-68 | 10233 | DIBBS |
Cross Reference | NSN 5331-00-901-6194
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-237 S604-70 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-237 S604-70 | C0308 | O-RING DIVISION EUROPE |
| 4751-08 | H3350 | KONINKLIJKE LANDMACHT DMO W&M MUNITIE |
| AS3582-237 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS9068-237 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| S0604 2-237 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5331-00-901-6194
Technical Data | NSN 5331-00-901-6194
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q |
| CENTER HOLE DIAMETER | 3.344 INCHES MINIMUM AND 3.374 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.135 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5331-00-901-6194
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
