NSN 5331-00-988-0973 69890245, 69890-245, 00-988-0973
Product Details | O-RING
5331-00-988-0973 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: 69890245, 69890-245, 5331-00-988-0973, 00-988-0973, 5331009880973, 009880973
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-988-0973 | 47946 ( O-RING ) |

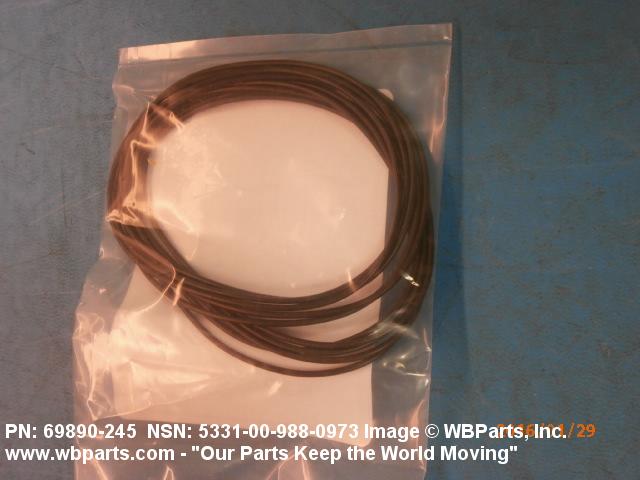

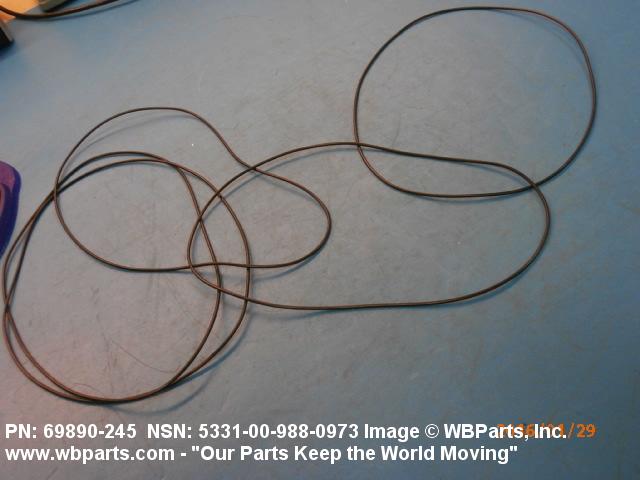

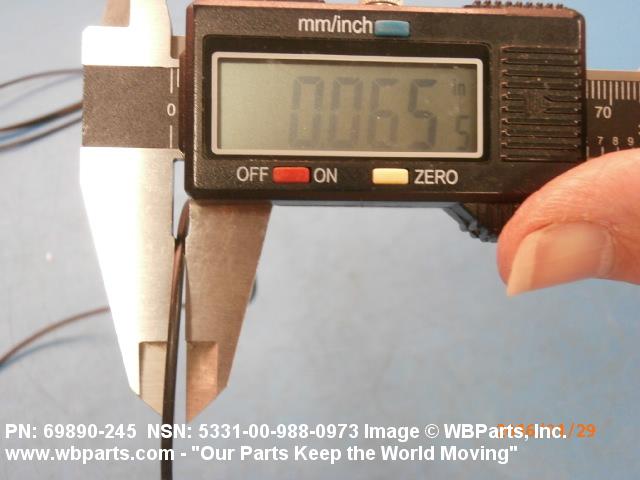

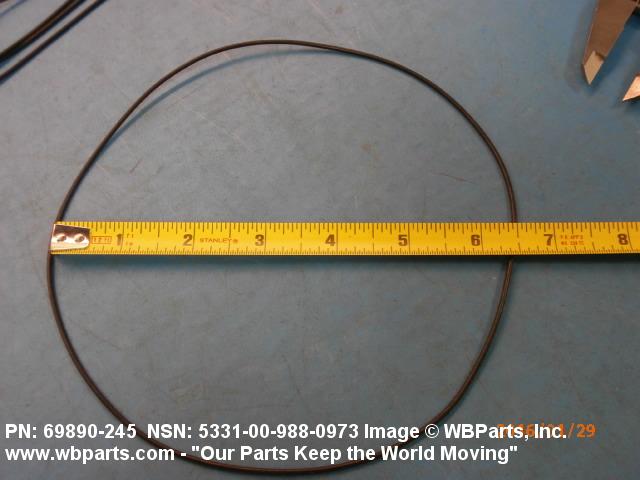

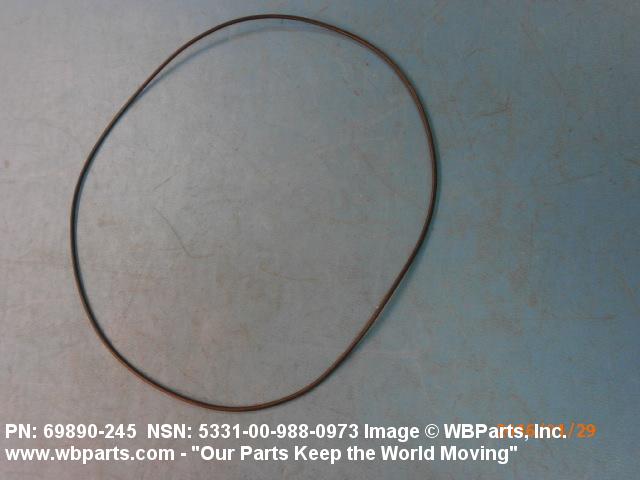

Drawings & Photos | NSN 5331-00-988-0973
Demand History | NSN 5331-00-988-0973
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 69890-245 | 2020-11-310 | 186 | DIBBS |
| 69890-245 | 2020-07-187 | 44 | DIBBS |
| 69890245 | 2016-01-18 | 5 | us |
| 5331-00-988-0973 | 2008-07-204 | 1 | US |
Cross Reference | NSN 5331-00-988-0973
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 69890-245 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 69890-245 | 07322 | MINNESOTA RUBBER CO |
| 69890-245 | 25183 | BERTON PLASTICS INC |
| 69890-245 | 57231 | LORD CORP AEROSPACE PRODUCTS DIV |
| 69890-245 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| 69890-245 | 91265 | PARKER-HANNIFIN, CORPORATION DBA TECHSEAL DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5331-00-988-0973
Technical Data | NSN 5331-00-988-0973
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR |
| CENTER HOLE DIAMETER | 6.440 INCHES MINIMUM AND 6.560 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.067 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 69890-245 |
Restrictions/Controls & Freight Information | NSN 5331-00-988-0973
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-00-988-0973
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
