NSN 5331-01-096-8824 M83248/2-904CP, M832482904, M83248-2-904
Product Details | O-RING
5331-01-096-8824 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: M83248/2-904CP, M832482904, M83248-2-904, M832482904CP, M83248-2-904CP, MIL-R-83248/2-904, MIL-R-83248/2-904CP, MILR832482904, MILR832482904CP, 63020 ITEM 19, 63020 ITEM 19CP, 63020ITEM19, 63020ITEM19CP, 8610 PIECE 40 1/4IN, 8610 PIECE 40 1/4INCP, 8610PIECE4014IN, 8610PIECE4014INCP, 8819B, 8819BCP, 2000-27900 ITEM 30, 2000-27900 ITEM 30CP, 200027900ITEM30, 200027900ITEM30CP, 5165343916F31, 516-5343916-F31, 5331-01-096-8824, 01-096-8824, 5331010968824, 010968824
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JUN 1980 | 01-096-8824 | 47946 ( O-RING ) |

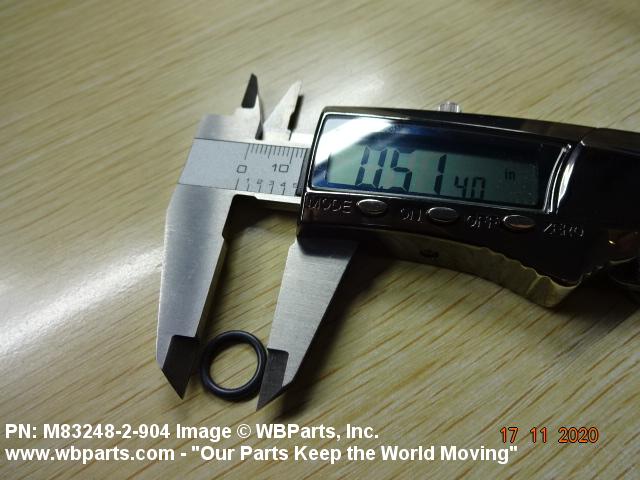

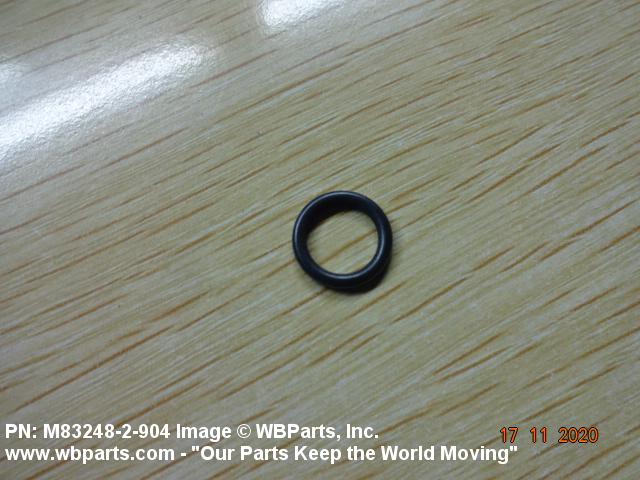

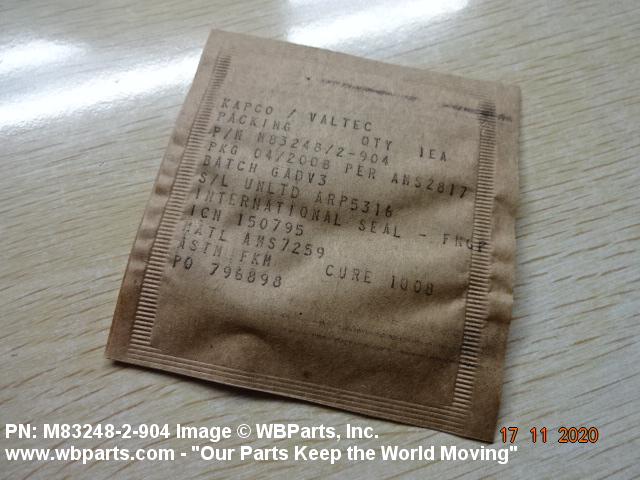

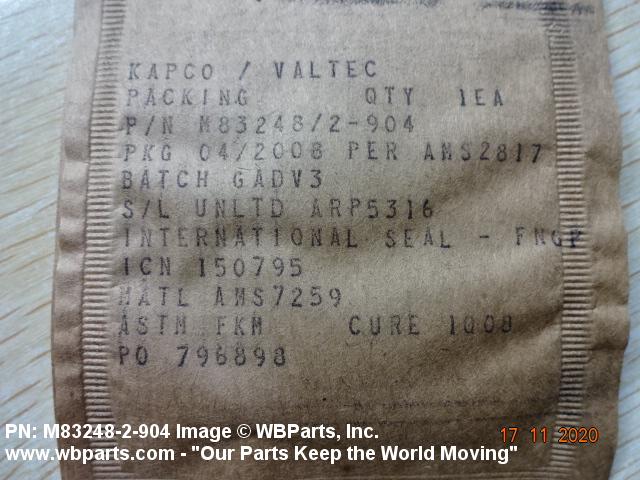

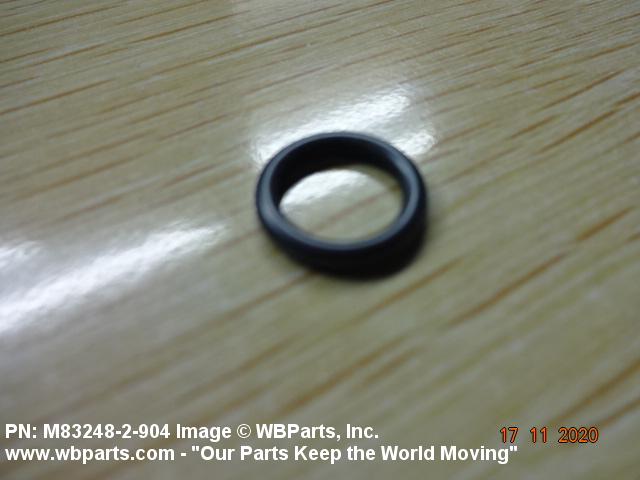

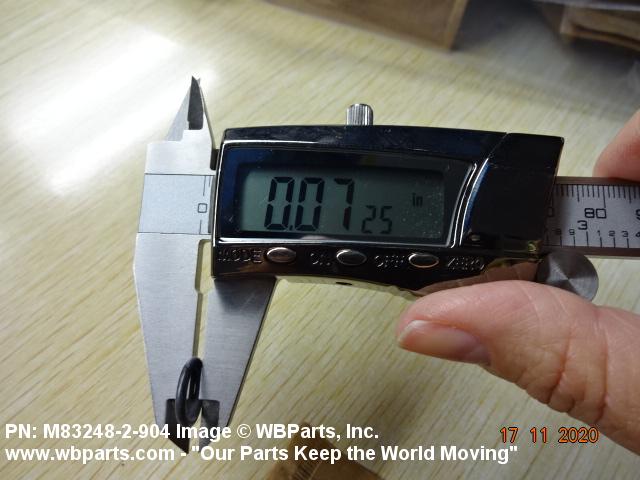

Drawings & Photos | NSN 5331-01-096-8824
Demand History | NSN 5331-01-096-8824
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M832482904 | 2024-11-325 | 100 | United States |
| 5331-01-096-8824 | 2023-06-172 | 2878 | DIBBS |
| 5331-01-096-8824 | 2023-06-159 | 2878 | DIBBS |
| 5331-01-096-8824 | 2022-08-235 | 10 | Germany |
| 5331-01-096-8824 | 2022-03-82 | 1152 | DIBBS |
| M832482904 | 2020-11-324 | 1 | US |
| M832482904 | 2020-10-301 | 2 | United States |
| 5331-01-096-8824 | 2020-01-24 | 419 | DIBBS |
| 5331-01-096-8824 | 2020-01-16 | 419 | DIBBS |
| 5331-01-096-8824 | 2019-04-108 | 1 | DIBBS-RFPs |
| M832482904CP | 2019-03-65 | 1 | United States |
| 5331-01-096-8824 | 2017-09-257 | 6 | TR |
| M832482904 | 2016-09-271 | 2 | Malaysia |
| M832482904 | 2016-09-266 | 2 | Malaysia |
| M832482904 | 2016-05-124 | 6 | United States |
| 5331-01-096-8824 | 2014-07-195 | 2281 | DIBBS |
| 5331-01-096-8824 | 2014-07-183 | 2281 | DIBBS |
| 5331-01-096-8824 | 2013-01-08 | 1309 | DIBBS |
| 5331-01-096-8824 | 2012-08-216 | 500 | DIBBS |
| M832482904 | 2011-08-214 | 100 | United States |
| 5331-01-096-8824 | 2009-05-138 | 1480 | DIBBS |
| M832482904 | 2009-01-29 | 55 | Malaysia |
| 5331-01-096-8824 | 2009-01-25 | 55 | Malaysia |
| 5331-01-096-8824 | 2008-11-322 | 1169 | DIBBS |
Cross Reference | NSN 5331-01-096-8824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2000-27900 ITEM 30 | 07270 | MOOG INC. |
| 2000-27900 ITEM 30CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 516-5343916-F31 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 63020 ITEM 19 | 99643 | EATON CORPORATION DBA EATON AEROSPACE |
| 63020 ITEM 19CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 8610 PIECE 40 1/4IN | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 8610 PIECE 40 1/4INCP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 8819B | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 8819B | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 8819BCP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| M83248-2-904 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| M83248-2-904 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83248-2-904CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| M83248/2-904CP | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MIL-R-83248/2-904 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-83248/2-904CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5331-01-096-8824
Related Products | NSN 5331-01-096-8824
Technical Data | NSN 5331-01-096-8824
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-83248 MIL SPEC SINGLE MATERIAL RESPONSE |
| HARDNESS RATING | 85.0 SHORE DUROMETER A MINIMUM AND 95.0 SHORE DUROMETER A MAXIMUM |
| TEMP RATING | -30.0 DEG FAHRENHEIT AND 500.0 DEG FAHRENHEIT |
| CENTER HOLE DIAMETER | 0.346 INCHES MINIMUM AND 0.356 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.069 INCHES MINIMUM AND 0.075 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 2 CLASS |
| DEPARTURE FROM CITED DOCUMENT | CLEANED IN ACCORDANCE WITH MIL-P-52211 |
| CRITICALITY CODE JUSTIFICATION | ZZZW |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-83248/2-904 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83248-2-904 |
Restrictions/Controls & Freight Information | NSN 5331-01-096-8824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-01-096-8824
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | CP | An item that requires special cleaning and packaging for oxygen/nitrogen service (e.g, valves, piping systems, generators). |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
